Product Details:
|
Name: | Automatic Low-e Glass Edge Deleting Machine | Grinding Wheel Width: | 10/12/15mm |
---|---|---|---|
Max Glass Size: | 2500*4500mm | Min Glass Size: | 300*350mm |
Glass Thickness: | 3-15mm | Conveyor Speed: | 30m/min |
Edge Deleting Speed: | 0-15m/min | Servo Control System: | 6 |
Usage: | Insulating Glass Processing | ||
Highlight: | double glazing production,insulating glass line |

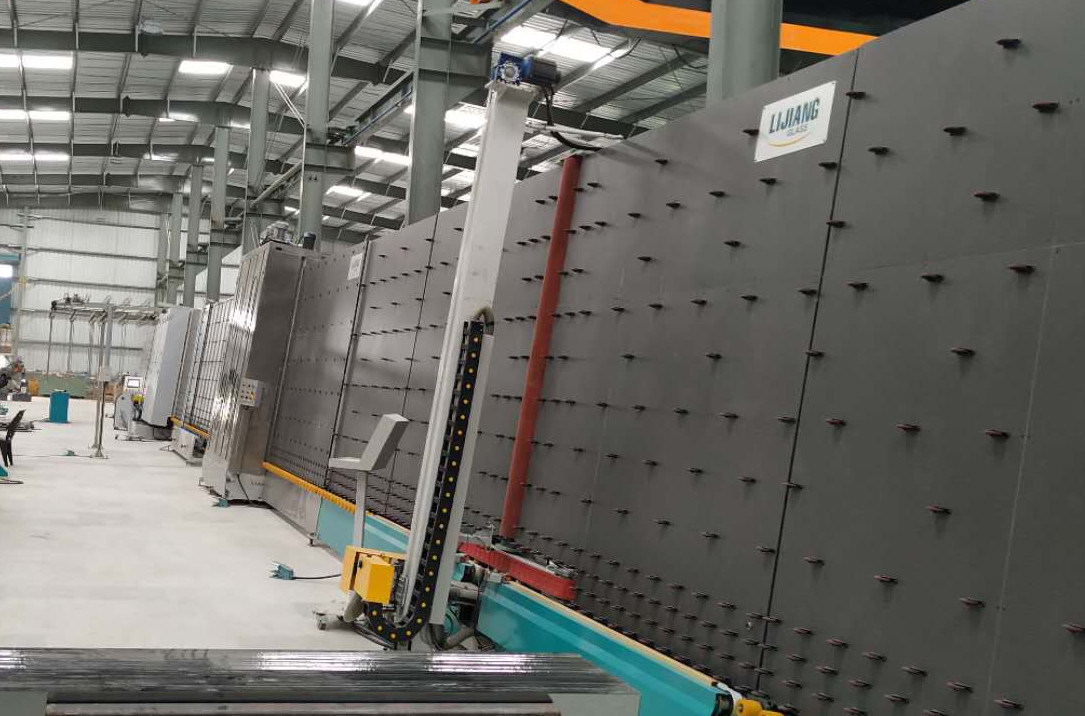

Stable Performance Automatic low-e glass edge deleting machine for double glass processing
Production name: Automatic low-e glass edge deleting machine
Machine Type: Insulating Glass Production Machine
Brand name: LIJIANG GLASS
Model number: LJcM2545
Voltage: 380V
Certification: CE
Warranty: 1 year
After - sales Service Provided: Engineers available to service machinery overseas
Main feature :
1.Edge deletion is adjustable
2.Two-way glass access
3.Automatically distinguish low-e surface
4.Automatically measure size

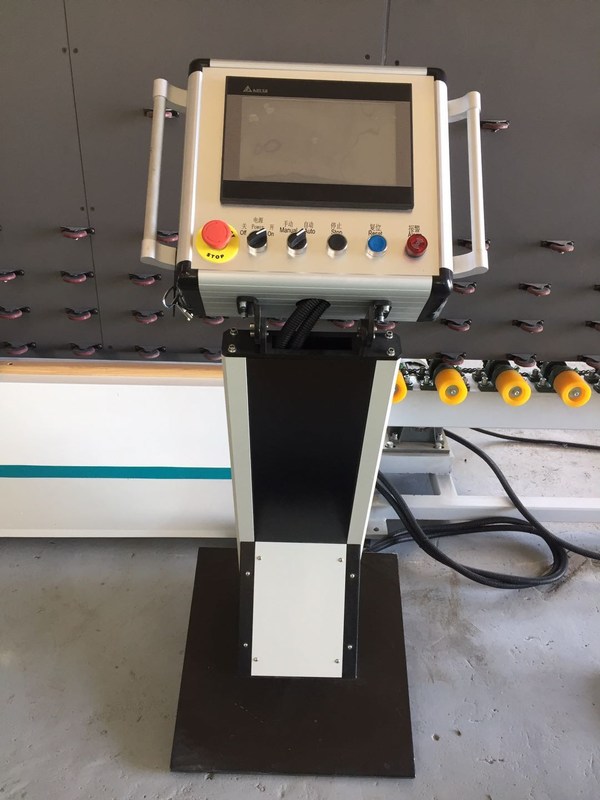

5.PLC control system,touch screen interface
6.Intelligent control system, can recognize batch processing
7.The glass edge deleting machine adopts imported servo control system, positioning accurately with smooth operation.
8.High quality grinding wheels are durable, can produce neat and beautiful grinding crack. The distance can be set among 10 ~ 150 mm arbitrarily.
Technical data
Max.glass processing size | 2500*4500mm |
Min.glass processing size | 350*500mm |
Glass thickness | 3-15mm |
Edge deleting width | 10-50mm |
Glass conveyor speed: | 30m/min |
Edge deleting speed | 0-15m/min |
Abrasive wheel width | 10/12/15mm |
Air supply | Flow 0.2m3/min |
Air pressure | ≥0.8MPa |
Total power | 3P 380V 50Hz 3.35KW |
Dimension | 8000*2500*3400mm |

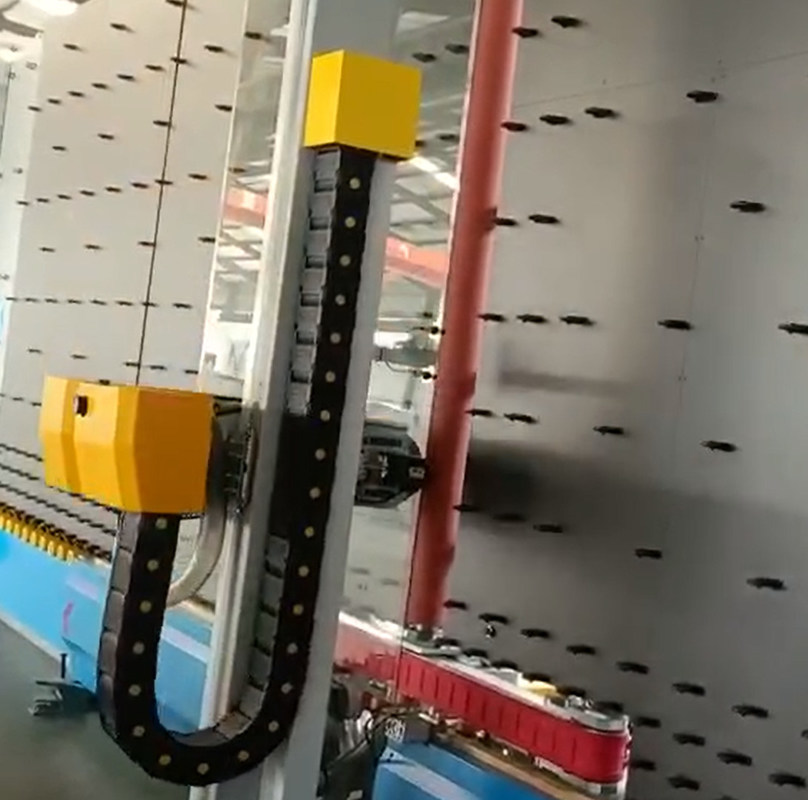

Detail picture
Factory
FAQ
Q:Is LIJIANG GLASS a factory or a trading company?
A: A factory in Jinan city.
Q: What is the system of LIJIANG’s after sale service?
A: LIJIANG has its own special system for the service, we make a “tree of knowledge”for guiding customer to find the usual problem and the answer when customers meet.
Q: About this Machine,What’s the guarantee ?
A:1)Our guarantee for 12 months.
2)24 hour’s technical support by email or calling
3)English manual and video tutorial
4)We will provide the consumable parts at an agency price
5)24 hours on line service each day, free technical support.
Q:How about your warranty?
A:Generally, our warranty is one year. Within the warranty period, we can offer technique support, Feedback to you within 24 hours and help you to repair your problem controller freely, even it's not from our factory
