Product Details:
|
| Name: | Butyl Extruder Machine | Air Pressure: | ≥0.6MPa |
|---|---|---|---|
| Total Power : | 380V, 5KW, 50HZ | Dimension: | 2600*680*1100mm |
| High Light: | double glazing production,insulating glass line |
||

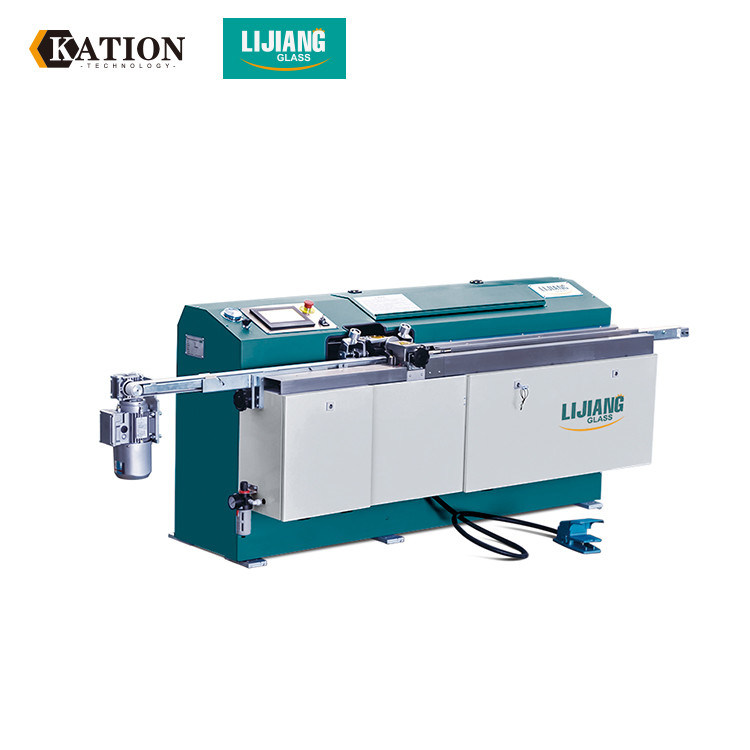

LJTB01 Butyl Extruder Machine
Application
The type of LJTB01 butyl extruder machine is used for spreading aluminum spacer
frames evenly with hot melt butyl. This equipment use large electrical control panel
which makes the operation more easier. The conveyor of aluminum is controlled by
frequency converter, and the speed can be adjusted from 0m/min to 47m/min, which
has the fastest speed in China. It is very popular with energy-saving. Its squeezing system
adopts pneumatic and hydraulic supercharging system, which makes the squeezing pressure
more stable. The dispensing cylinder uses vertical rotary support system and it makes the refill
of butyl easier. It can prolong the life of squeezing system and set the heating time in 24
hours with electricity and air pressure. The distance of squeezing head can be adjusted automatically
according to different aluminum spacer. The machine has reached the worldwide technology with the
characteristic of complete function and stable working mode.
Technical Data
| Squeeze pressure | 10-18MPa |
| Temperature | 110~140℃ |
| Aluminum spacer width | 4-30mm |
| Speed | 0-47m/min |
| Diameter of butyl cylinder | 200mm |
| Air supply | 0.4m³/min |
| Air pressure | ≥0.6MPa |
| Total power | 380V, 5KW, 50HZ |
| Dimension | 2600×680×1100mm(L×W×H) |
| Weight | 650kg |
² Main components
| Name | Brand | Original |
| PLC | KINCO | China |
| Valve | HAWE | German |
| Low voltage electrical apparatus | SIEMENS | German |
| Hydraulic and pneumatic supercharging system | MAXIMATOR | German |
| Frequency converter | KINCO | China |
| Pneumatic components(cylinder/valve) | ARTAC | Taiwan |
| Quick exhaust valve/Vacuum generator | SMC | Japan SMC |
| Travel light | OMRON | Japan |
| Optical fiber | OMRON | Japan |
JINAN KATION TRADING CO.,LTD.
Founded in 2009, Kation-Tech specializes in R&D, production and sales of Insulating
glass machinery and related auxiliary equipment for the glass deep processing industry
and the door and window construction industry. Has the professional processing basis
of insulating glass machinery, aluminum-plastic windows & doors machinery and the
related auxiliary materials, etc
FAQ
Q: What is the system of Kation’s after sale service?
A: Kation has its own special system for the service, we make a “tree of knowledge”for
guiding customer to find the usual problem and the answer when customers meet.
Q: What is the details of the after sale service?
A: Step1: Notice before installation
Step2 : Confirm before installation
Step3: On-site installation
Step4: On-site debugging
Step5: On-site training
Step6: Client sign
Step7: On-line service
Step8: Technical service
