Product Details:
|
Name: | Rotated Table For Sealant Pump Of Insulating Glass Using | Color: | Can Be Request |
---|---|---|---|
Size: | Can Be Request | ||
Highlight: | double glazing production,insulating glass line |
♦ LIJIANG GLASS- FOR WORLD GLASS MACHINE USER SERVICE ♦

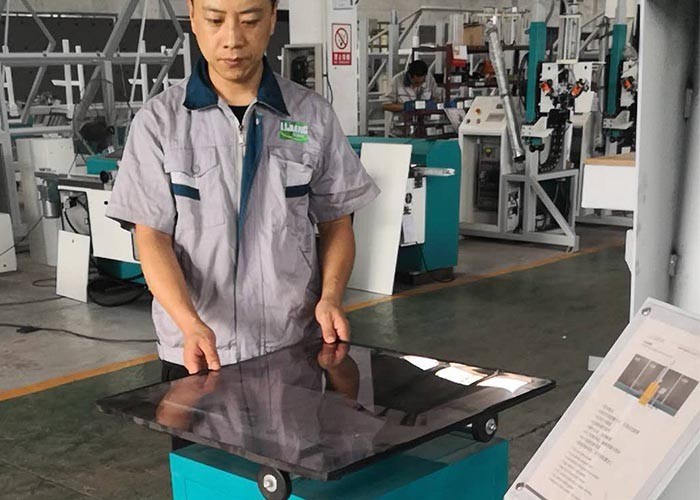

Rotated table for sealant pump of insulating glass useing LJZT03
Main feature►
1.Easy operating, simple and flexible
2.It is used for fixing and rotating glass when manual coating the outside of IG glass
3.The middle sucker is suitable for small pieces of glass,however,extra support frame is for large pieces of glass
4,The colour and the max size can be request (optional )
Main technical parameter►
Power supply | 380V 50Hz |
Total power | 0.37kw |
Operating dimension | 1500*1500mm |
Dimension | 600*550*985mm |

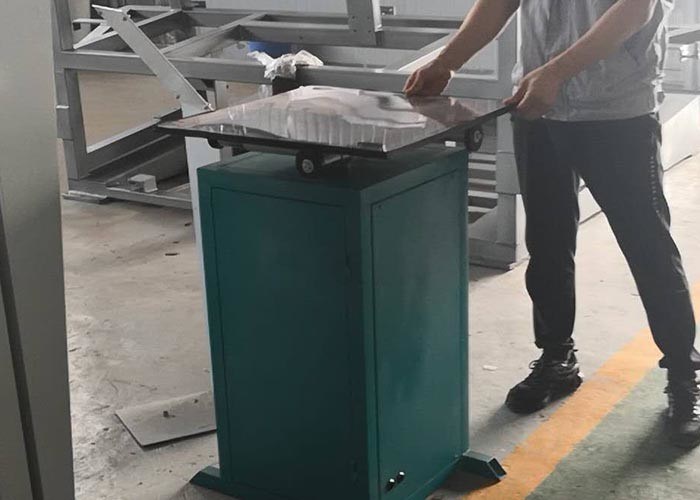

►Rotated table for sealant pump of insulating glass useing LJZT03 is easy to operate. Place the glass on the rotating Table and the glass will be absorbed by the sucker.Rotating through the foot-switch control, is very easy to seal.Pressed down the gas foot-switch after the completion of sealant, the sucker would be released and the glass could be removed.

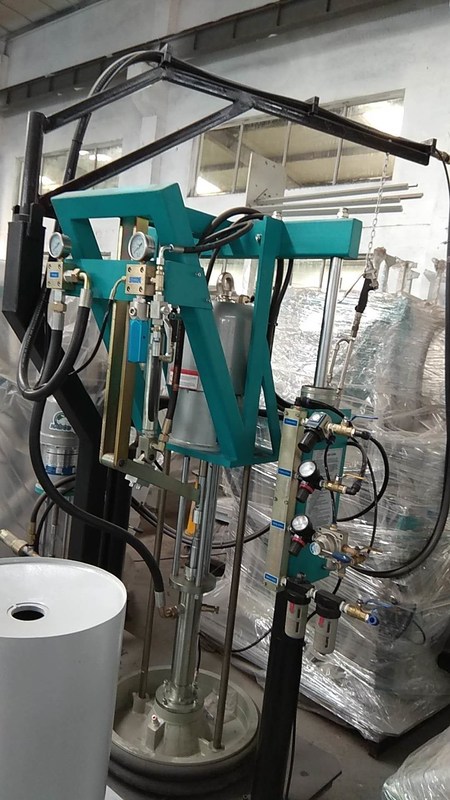

Good Partner for Rotated Table--Sealant-spreading Machine LJST02A
Main feature
• Imported motor system to improve equipment efficiency
• Imported sealant gun,stainless steel mixer
• High pressure protect device
• Anti-back flow control structure
• Mixed rate detector can control the rate of two kinds of sealant
Technical data
Working air pressure | 0.3-0.6MPa |
Sealant spreading pressure | 15-20MPa |
Sealant volume | 4L/min |
Diameter of A/B sealant | 570mm/280mm |
Sealant spreading air pressure ratio | 50:1 |
Mixed rate | 6:1-14:1 |
Air supply | Flow 0.8m3/min |
Air pressure | ≥0.8MPa |
Overall dimension | 1100*950*1630mm |
Good Partner for Rotated Table--Sealant-spreading Machine LJST03A
Main feature
• Use cylinder to provide power
• China sealant gun,stainless steel mixer
• High pressure protect device
• Anti-back flow control structure
• Mixed rate detector can control the rate of two kinds of glue
Technical data
Working air pressure | 0.3-0.6MPa |
Sealant spreading pressure | 15-20MPa |
Sealant volume | 4L/min |
Diameter of A/B sealant | 570mm/280mm |
Sealant spreading air pressure ratio | 50:1 |
Mixed rate | 6:1-14:1 |
Air supply | Flow 0.8m3/min |
Air pressure | ≥0.8MPa |
Overall dimension | 1100*950*1630mm |
Jinan Lijiang Automation Equipment Co., Ltd. is located in the beautiful spring city------Jinan. It is an enterprise which integrated glass processing equipment research and development, sales and service into a whole world . As it is close to Beijing-Shanghai high-speed rail, the transportation is very convenient.
The company is committed to building high-end insulating glass machinery and equipment by learning from famous experts, establishing the research and development centers, cooperating with domestic and foreign well-known enterprises, importing advanced technology and so on. Now, our friendly partners include North Glass, Xin Fuxing, Yaohua, Dalian Huaying, Beijing Guanhua, Shanghai Hao Jing, Sichuan Li Hehua and other well-known enterprises. Since the establishment of the company, our products have been exported to Europe, America, South America, the Middle East, Southeast Asia, India, nearly 30 countries and regions. At the same time, our company worked with the well-known domestic research institutes, such as the North China Industrial Group, Shandong University and others, to constantly improve the level of technical research. So far, we have independently produced the vertical automatic IG production line with filling gas on line, the vertical IG sealing robot, the automatic spacer bending machine, the automatic desiccant filling machine and the new fully automatic butyl extruder machine, its technology and quality have reached the highest leading level in China.
