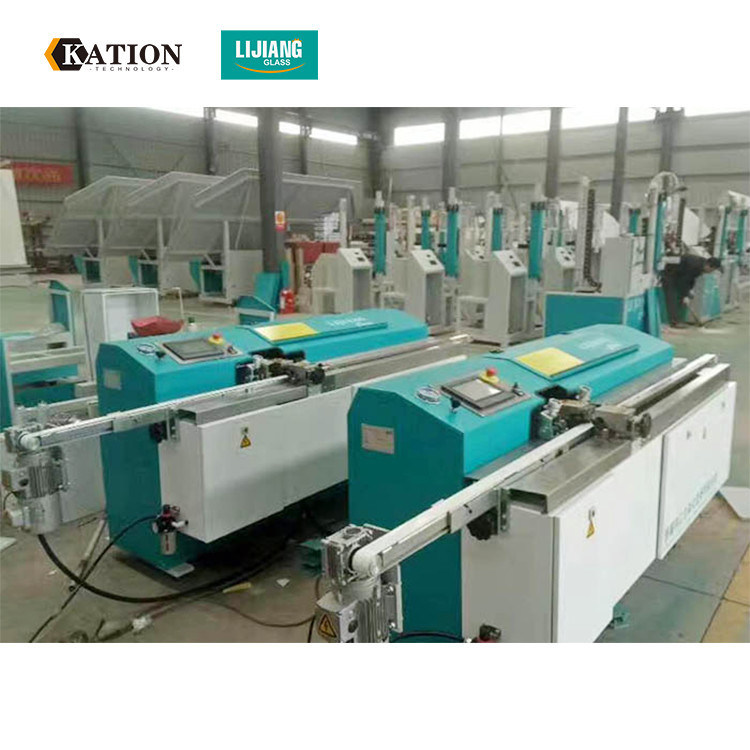

Hollow Glass Processing Equipment For Interval Strip Coating Automatic Butyl Adhesive Coating Machine

Hollow Glass Processing Equipment For Interval Strip Coating Automatic Butyl Adhesive Coating Machine
Hollow Glass Processing Equipment For Interval Strip Coating Automatic Butyl Adhesive Coating Machine Hollow Glass Processing Equipment For Interval Strip Coating Automatic Butyl Adhesive Coating Machine Hollow Glass Processing Equipment For Interval Strip Coating Automatic Butyl Adhesive Coating Machine

Large Image :  Hollow Glass Processing Equipment For Interval Strip Coating Automatic Butyl Adhesive Coating Machine

Product Details:
Place of Origin: CHINA
Brand Name: LIJIANG
Certification: CE
Model Number: LJTB01
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Wooden box
Delivery Time: within 15 days
Payment Terms: L/C, T/T
Supply Ability: 100sets/month

Hollow Glass Processing Equipment For Interval Strip Coating Automatic Butyl Adhesive Coating Machine

Description
Name: Automatic Butyl Coating Machine Application: Insulating Glass Processing
Brand: Siemens Speed: 0-47m/s
Aluminum Spacer Width: 6A-27A Diameter Of Butyl Cylinder: 200mm
Dimension: 2800*700*900mm Power: 380V,5.7kw
Highlight:

silicone extruder machine

,

double glazing equipment

Hollow glass professional processing equipment for interval strip coating automatic butyl adhesive coating machine

Product overview of Automatic butyl coating machine



Butyl glue coater is used for the coating of spacer strip, which is a professional equipment for hollow glass processing.
The coater can automatically detect the width of the interval strip, and transmit the data to the glue mouth to make the opening width of the glue mouth reach the width of the gluing state. In addition, the conveyor belt will deliver the interval strip to the glue mouth, and the glue mouth will apply glue on both sides of the interval strip at the same time. Accurate control of glue nozzle spray and break time by PLC.





Technical Data of LJTB01



Aluminum spacer width 6A-27A
Squeeze pressure 10-18MPa
Temperature 110~140℃
Air pressure >0.6MPa
Speed 0-47m/min
Diameter of butyl cylinder 200mm
Air supply 0.4m³/min
Dimension 2800*700*900mm
Total power 380V, 5KW, 50HZ


The feature of Butyl Extruder machine



1.Glue cylinder of Butyl coating equipmen adopt the upright structure, easy to change butyl.

Hollow Glass Processing Equipment For Interval Strip Coating Automatic Butyl Adhesive Coating Machine 0

2.KINCO Touch Screen

Clear interface, Simple operation, Smart touch screen,Updated programming.

Hollow Glass Processing Equipment For Interval Strip Coating Automatic Butyl Adhesive Coating Machine 1



3.Germany Siemens parts

Butyl coating machine adopt Siemens brand, stable performance.

Hollow Glass Processing Equipment For Interval Strip Coating Automatic Butyl Adhesive Coating Machine 2



4.The coating machine can be Quickly speed of warming,Up to 47m / min,improve work effect.

Hollow Glass Processing Equipment For Interval Strip Coating Automatic Butyl Adhesive Coating Machine 3



5.The coating machine can Filter out debris automatically through auto exhaust, keep spreading quickly and evenly without bubbles.

Hollow Glass Processing Equipment For Interval Strip Coating Automatic Butyl Adhesive Coating Machine 4

6.Butyl extruder have Extruder head height adjustment structure for glue to leave blank



Hollow Glass Processing Equipment For Interval Strip Coating Automatic Butyl Adhesive Coating Machine 5











Company Introduction



Jinan Lijiang Automation Equipment Co., Ltd. is located in the beautiful spring city------Jinan. It is an enterprise which integrated glass processing equipment research and development, sales and service into a whole.



Jinan Lijiang Automation Equipment Co., Ltd. is committed to building high-end insulating glass machinery and equipment by learning from famous experts, establishing the research and development centers, cooperating with domestic and foreign well-known enterprises, importing advanced technology and so on.



With the rapid development of insulating glass industry, LIJIANG is looking forward to working with you for win-win situation and jointly creating a new world.

Hollow Glass Processing Equipment For Interval Strip Coating Automatic Butyl Adhesive Coating Machine 6

After sale

Hollow Glass Processing Equipment For Interval Strip Coating Automatic Butyl Adhesive Coating Machine 7

similar product-Butyl extruder machine LJTB03

Hollow Glass Processing Equipment For Interval Strip Coating Automatic Butyl Adhesive Coating Machine 8

· PLC control system, touch screen interface.

· Extruder head height adjustment structure

· Loading capacity up to14KG,saving time for feeding gule

· Preheating function Butyl cylinder swing mechanism

· Important control parts adopt imported brand.



Aluminum spacer width 6-24mm
Speed 0-27m/min
Diameter of butyl cylinder 190mm
Air supply Flow:0.4m/min
Air pressure ≥ 0.8MPa
Total power 220V 50HZ 2.5KW
Dimension 3000*620*1102mm
