Product Details:
|
| Production Name: | Automatic Butyl Extruder Machine | Maximum Size: | 2400mm*2200mm |
|---|---|---|---|
| Minimum Size: | 400mm*400mm | Coating Speed: | 0 - 50m/min |
| Power: | 8.5kw | Spacer Width: | 6 - 24mm |
| Heating Temperature: | 100 ~ 140℃ | Dimension: | 8550*1500*3500mm |
| Weight: | 3000kg | ||
| Highlight: | double glazing production,insulating glass line |
||

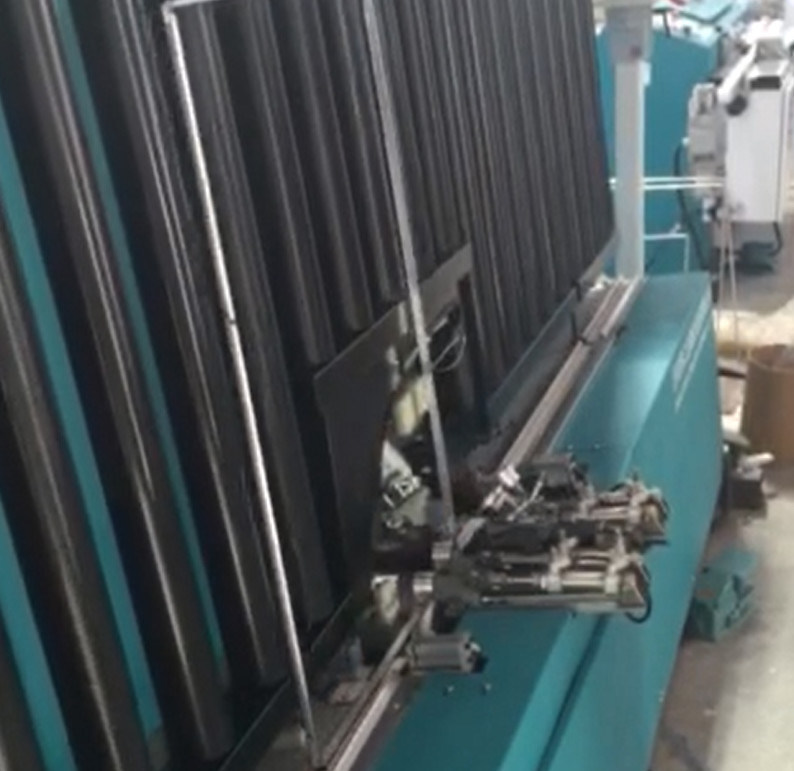

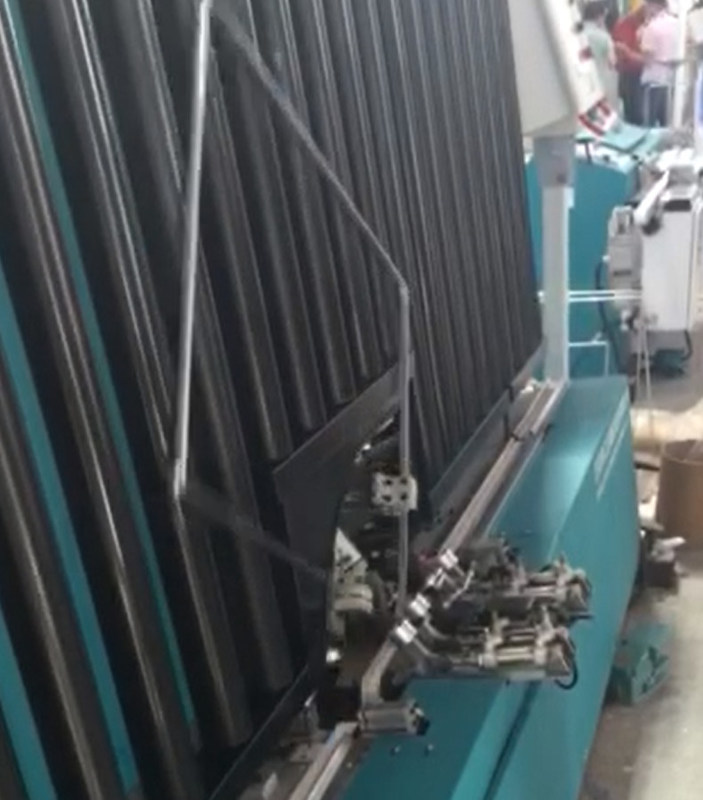

Introduction of full automatic butyl extruder machine :
Fully automatic butyl extruder machine can connect with the insulating glass assembly line to realize fully automatic production, and the whole coating process does not need manual work. This automatic butyl extruder machine consists of pressing wheel system (linear pressing wheel, arc pressing wheel), centering wheel, glue nozzle unit, extrusion unit, transmission unit, rotation mechanism, support mechanism, frame unit, pneumatic system, hydraulic system and control system.
Machine features of automatic butyl extruder machine:
(1) There is the alarm device, it will automatically alarm when there is no glue (there will be a prompt on the touch screen).
(2) Timing heating function, workers can set the start-up time of the equipment in advance, the equipment will automatically start the system heating before the official work quickly.
(3) Automatically adjust the distance between front and back glue nozzles according to the width of aluminum spacer.
(4) The transmission motor is controlled by servo motor, and the transmission speed can reach up to 50m / min.
(5) Large frame support mechanism, to prevent large-scale aluminum frame from shaking by a wide margin at the corner, resulting in frame deformation.
(6) Simple, stable and reliable operation, precise coating effect, fast coating speed and high production efficiency.
| Voltage | 3P 380+N+PE |
| Power | 8.5kw |
| Coating speed | 0~50m/min |
| Minimum spacer size | 400*400mm |
| Maximum spacer size | 2400*2200mm |
| Spacer width | 6~24mm |
| Heating temperature | 100~140°C |
| Gas pressure | 0.6 MPa |
| Extrusion pressure | 17MPa |
| System pressure | 30MPa |
| Dimension (L*W*H) | 8550×1500×3500mm |
| Weight | 3000Kg |
Q:Is LIJIANG GLASS a factory or a trading company?
A: A factory in Jinan city.
Q: What is the system of LIJIANG ‘s after sale service?
A: LIJIANG has its own special system for the service, we make a “tree of knowledge”for guiding customer to find the usual problem and the answer when customers meet.
Q: What is the details of the after sale service?
A:
Step1: Notice before installation
Step2 : Confirm before installation
Step3: On-site installation
Step4: On-site debugging
Step5: On-site training
Step6: Client sign
Step7: On-line service
Step8: Technical service
More details please search www.lijiang-glass.com
Q: What's the payment term?
A: T/T, L/C and other payment terms could be negotiated.
Q: About this Machine,What’s the guarantee ?
A:1).Our guarantee for 12 months.
2).24 hour’s technical support by email or calling
3).English manual and video tutorial
4).We will provide the consumable parts at an agency price
5).24 hours on line service each day, free technical support.
Q:How about your warranty?
A:Generally, our warranty is one year. Within the warranty period, we can offer technique support, Feedback to you within 24 hours and help you to repair your problem controller freely, even it's not from our factory
Q:Can we visit your factory before order?
A:Yes, we warmly welcome and sincerely invite you or your team to visit our factory, we will help to arrange hotel and pick up you from airport.
Q: What's the delivery term?
A:At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 15-20 working days after deposit receipt. If you are in urgent need, we can consider making special arrangement for you.
Q:How about the packing for machine, is it safely protected during transportation?
A: Testing Chamber is packed by standard export wooden box for outside package and stretch film for inner package, it won't be damaged. We've delivered many testing machines abroad by sea or by air without damage.
