Product Details:
|
| Name: | Butyl Extruder Machine | Squeeze Pressure: | 10-18MPa |
|---|---|---|---|
| Temperature: | 110~140℃ | Aluminum Spacer Width: | 4-30mm |
| Speed: | 0-47m/min | ||
| Highlight: | double glazing production,insulating glass line |
||

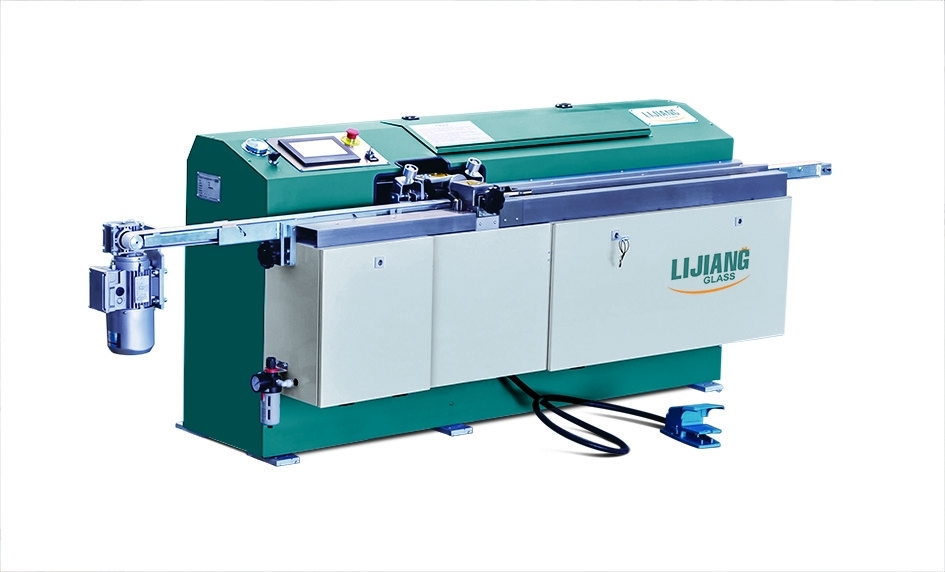

LJTB01 Butyl Extruder Machine
² Application
The type of LJTB01 butyl extruder machine is used for spreading aluminum spacer frames
evenly with hot melt butyl. This equipment use large electrical control panel which makes the
operation more easier. The conveyor of aluminum is controlled by frequency converter, and the
speed can be adjusted from 0m/min to 47m/min, which has the fastest speed in China. It is very
popular with energy-saving. Its squeezing system adopts pneumatic and hydraulic supercharging
system, which makes the squeezing pressure more stable. The dispensing cylinder uses vertical
rotary support system and it makes the refill of butyl easier. It can prolong the life of squeezing
system and set the heating time in 24 hours with electricity and air pressure. The distance of
squeezing head can be adjusted automatically according to different aluminum spacer. The machine
has reached the worldwide technology with the characteristic of complete function and stable working
mode.
² Technical Data
| Squeeze pressure | 10-18MPa |
| Temperature | 110~140℃ |
| Aluminum spacer width | 4-30mm |
| Speed | 0-47m/min |
| Diameter of butyl cylinder | 200mm |
| Air supply | 0.4m³/min |
| Air pressure | ≥0.6MPa |
| Total power | 380V, 5KW, 50HZ |
| Dimension | 2600×680×1100mm(L×W×H) |
| Weight | 650kg |
² Main components
| Name | Brand | Original |
| PLC | KINCO | China |
| Valve | HAWE | German |
| Low voltage electrical apparatus | SIEMENS | German |
| Hydraulic and pneumatic supercharging system | MAXIMATOR | German |
| Frequency converter | KINCO | China |
| Pneumatic components(cylinder/valve) | ARTAC | Taiwan |
| Quick exhaust valve/Vacuum generator | SMC | Japan SMC |
| Travel light | OMRON | Japan |
| Optical fiber | OMRON | Japan |
² Other features
1. Filter out debris automatically through auto exhaust, keep spreading quickly and evenly.
2. Quickly speed of warming, improve work effect.
3. Adjustable coating speed, can up to 0-47m/min.
4. Can save about 40% materials, only 5g/m.
5. Extruder head height adjustment structure.
6. Automatic centering and clamping structure.
7. Stable temperature and it is convenient to adjust the sealing material automatically.
Until 2019, we exported glass machines and materials to America, South America, Europe, the
Middle East, India and so on, nearly 30 countries and regions. We have established a perfect
international business relationship with 10 powerful agents and made an endeavor together to build
a famous international brand to the world. Kation-Tech, with craftsmanship, profession and honesty,
wins the future with you together!
FAQ
Q: What is the system of Kation’s after sale service?
A: Kation has its own special system for the service, we make a “tree of knowledge”for guiding
customer to find the usual problem and the answer when customers meet.
Q: What is the details of the after sale service?
A: Step1: Notice before installation
Step2 : Confirm before installation
Step3: On-site installation
Step4: On-site debugging
Step5: On-site training
Step6: Client sign
Step7: On-line service
Step8: Technical service
