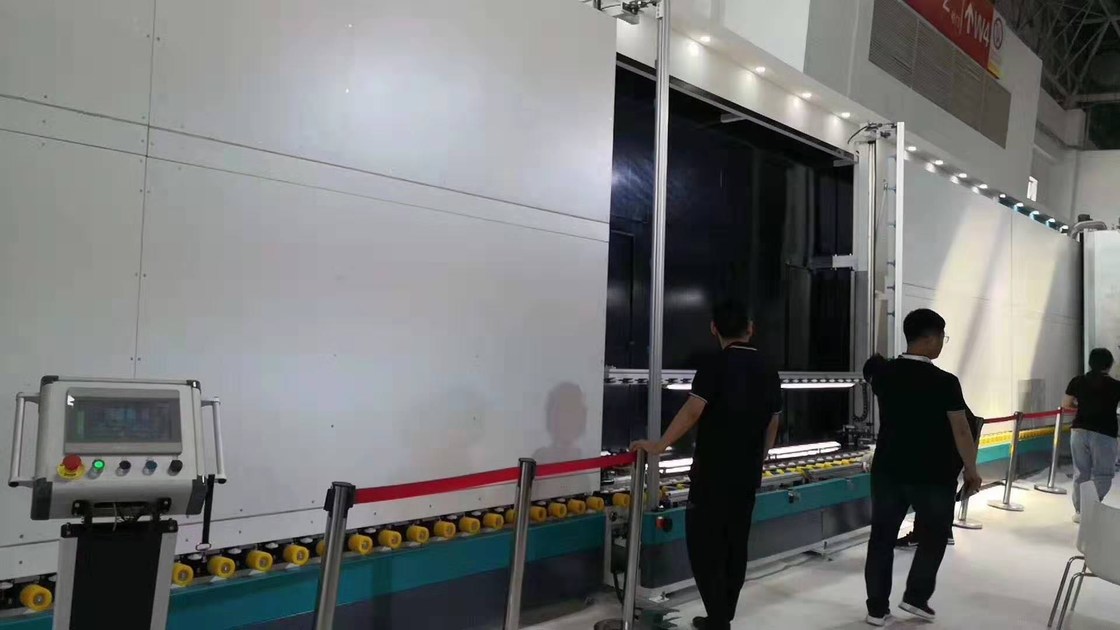

Super Fast Double Pressing And Filling Insulating Glass Processing Line With Air Transfer
Super fast double pressing and filling insulating glass line with air-floating transfer
1. German Siemens PLC control system, stable performance
2. Automatic closing of air knife, intelligent energy saving
3. Air knife of the washer can be adjusted automatically
4. It can be used for secondary pressing of super long glass
5. Two IG units complete pressed and filled in one time.
6. Adopt special filling way to keep high gas value and fast speed,20s for pressing one IG unit.
7. Using air-floating way to transfer glass, to prevent the wheel from polluting the glass.
8. Inside online filling gas , synchronous pressing.
1. It is made of stainless steel, the brush bearing is made of Harbin stainless steel, which is famous in China;
2.3 pairs of soft brush is equipped with 0.1mm brush wire;
3. Use European anti noise mode to reduce noise;
Drying section :
1. The front and rear extrusion wheels are powered to keep different sizes of glass can pass quickly and smoothly;
2. The new type air knife could adjusts the size of the air vent through the aluminum duck beak; reduces the number of adjusting screws, ensures that each screw is not loose, and avoids the resonance of the air knife.
3. The width of the air knife can be adjusted automatically according to the thickness of the glass.
|Max. glass size
|Max glass size for filling gas
|Min. glass size
|Insulating glass thickness
|Glass washing speed
|Glass conveyor speed
||3 pairs of soft brushes with 0.1mm hair
||Water consumption:0.5t/h conductivity:40μs/cm
||3P 380V 50HZ 40KW
Advanced technology explaining:
1. Firstly, why the double gas filling IG line is chosen by more and more customers?
Now almost insulating glass factory start to choose the gas filling IG line, because the people and government they are asking for energy saving and high quality insulating glass, then the insulating glass is filling with argon gas, inert gas can be used for sound insulation, heat insulation, fog prevention and energy saving.
2. What is the Gas filling IG line with double pressing and filling?
This is the super speed IG line, it could allow to press and fill two IG units in the pressing box together, pressing one IG unit just need 20s. It is dispensable in many large glass processing factories. Since 2019 year, we sold to Chinese big glass factories, Korea, America, South America, India, Iran and some Europe Countries, like Ireland, Romania, Span, Bulgaria and so on.

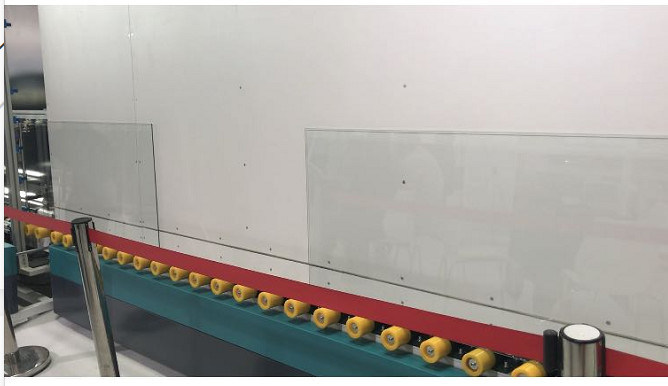

3. Why the transfer glass on air instead of wheels?
As in some dry place, there are many little dust and sand, it will pollute glass, when transfer glass, the wheels always leave stamp on the inside glass. In tropical countries, the weather is too moist, when washed and dried glass, the glass surface is not easy to keep completely dry, so wheels still can pollute the glass. If using AIR to transfer, it will avoid this problem, keep a very high clean quality.
