Hot sell Horizontal Washing and Drying Machine for float glass low-e glass

Hot sell Horizontal  Washing and Drying Machine for float glass low-e glass
Hot sell Horizontal  Washing and Drying Machine for float glass low-e glass Hot sell Horizontal  Washing and Drying Machine for float glass low-e glass Hot sell Horizontal  Washing and Drying Machine for float glass low-e glass Hot sell Horizontal  Washing and Drying Machine for float glass low-e glass

Large Image :  Hot sell Horizontal Washing and Drying Machine for float glass low-e glass

Product Details:
Place of Origin: China
Brand Name: Lijiang
Certification: CE
Model Number: LJWBQJ2500
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiable,
Packaging Details: wooden case or container
Delivery Time: 30days
Payment Terms: T/T, L/C
Supply Ability: 10set/month

Hot sell Horizontal Washing and Drying Machine for float glass low-e glass

Description
Name: Automatic Horizontal Glass Washing And Drying Machine With Soft Low-e Brushes Advantage: Low-e Brush
Material: Stainless Steel For Washing Parts
Highlight:

double glazing production

,

insulating glass line

Hot sell Horizontal  Washing and Drying Machine for float glass low-e glass 0

                           LIJIANG GLASS- FOR WORLD GLASS MACHINE USER SERVICE



Hot sell Horizontal  Washing and Drying Machine for float glass low-e glass 1

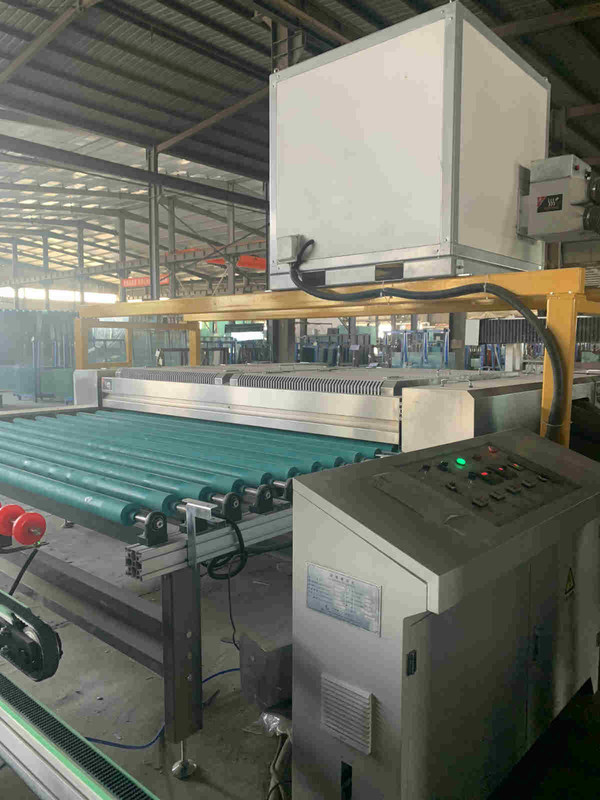

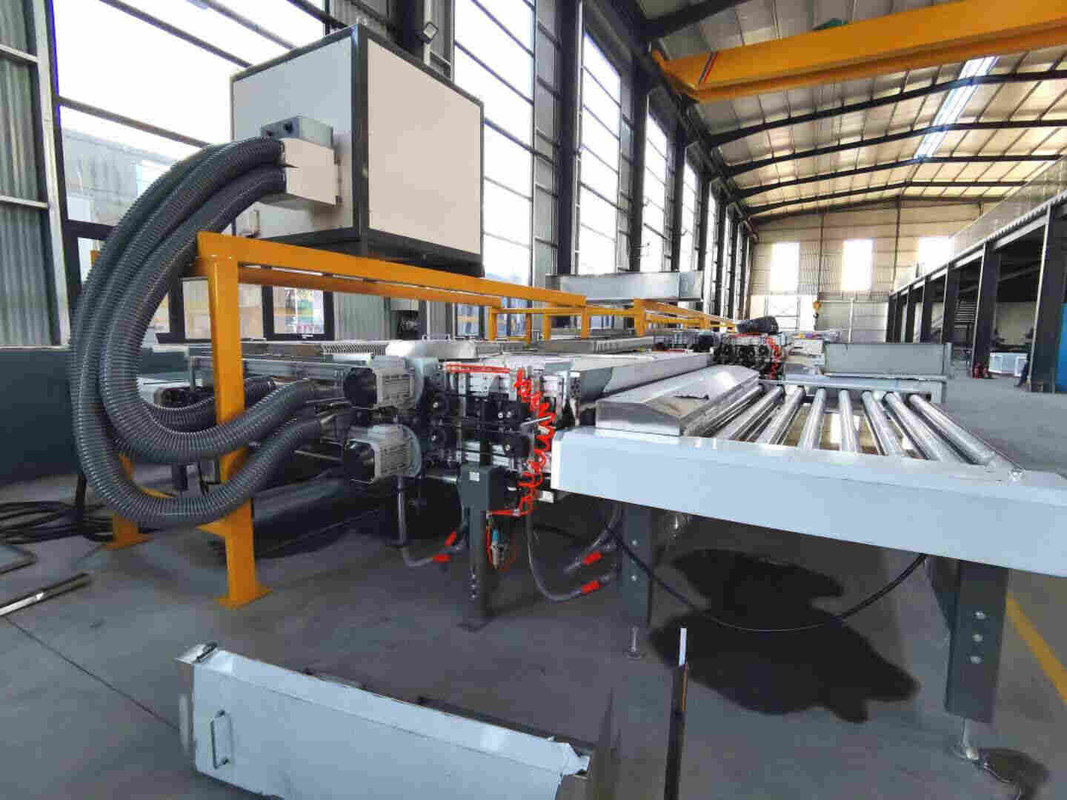

Automatic Horizontal Glass Washing and Drying Machine LJWBQJ2500

Hot sell Horizontal  Washing and Drying Machine for float glass low-e glass 2

►►►►►►►


Automatic Horizontal Glass Washing and Drying Machine LJWBQJ2500 used for cleaning and drying the upper and lower surfaces of ordinary plate glass and high quality low-e glass,it is composed of incoming segment, cleaning air-drying segment and outgoing segment.

Technical parameters:

1. Maximum glass width: 2500mm (effective maximum: 2650mm)

2. Minimum glass specification: 400mm×400mm (limited to single row on left and right sides)

3. Glass thickness: 3mm-25mm (digital display)

4. Speed range: glass thickness within 3-25mm Vmax=1-12m/min

5. Main drive, brush speed regulation method: frequency control

6. Table height :900±25mm





Hot sell Horizontal  Washing and Drying Machine for float glass low-e glass 3

Hot sell Horizontal  Washing and Drying Machine for float glass low-e glass 4Hot sell Horizontal  Washing and Drying Machine for float glass low-e glass 5

►►►Water tank( stailess steel)

Hot sell Horizontal  Washing and Drying Machine for float glass low-e glass 6Hot sell Horizontal  Washing and Drying Machine for float glass low-e glass 7

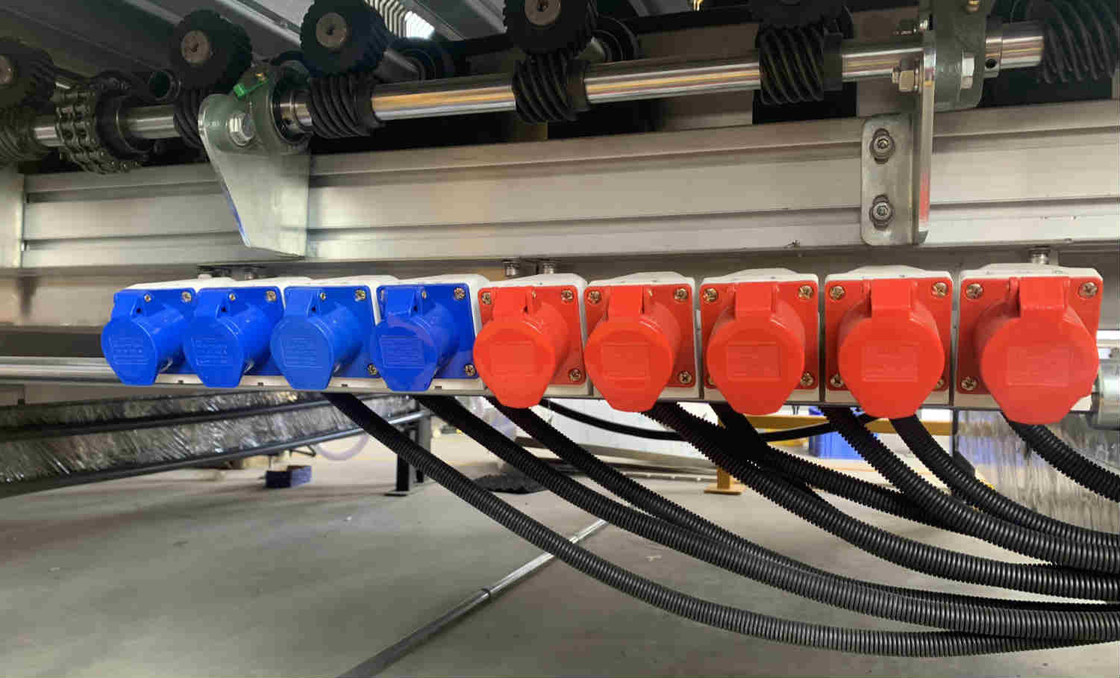

►►►CE standard electrical connecting design



Maximum glass width 2500mm (effective maximum: 2650mm)
Minimum glass specification 400mm×400mm (limited to single row on left and right sides)
Glass thickness 3mm-25mm (digital display)
Speed range glass thickness within 3-25mm Vmax=1-12m/min
Main drive, brush speed regulation method frequency control
Table height 900±25mm
Total power 42KW(water-bearing wind heating: 15KW)
Water source self-circulation, tap water (according to civil water standards) and deionized water water supplement (deionized water equipment shall be provided by the buyer)
Power source 380V 50Hz
Dimensions (length × width × height) approximately 6260*4800*3100mm
Weight 3940kg

Hot sell Horizontal  Washing and Drying Machine for float glass low-e glass 8Hot sell Horizontal  Washing and Drying Machine for float glass low-e glass 9

Hot sell Horizontal  Washing and Drying Machine for float glass low-e glass 10Hot sell Horizontal  Washing and Drying Machine for float glass low-e glass 11

Main Parts

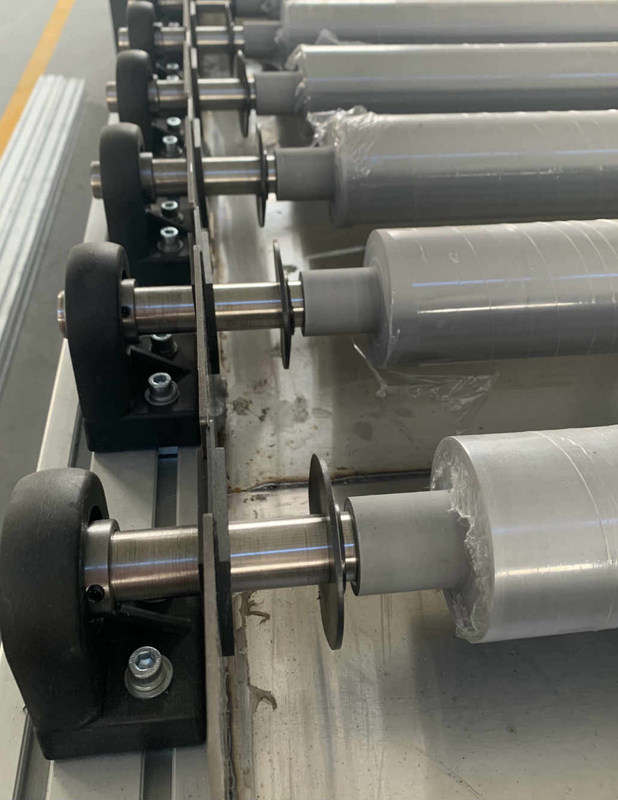

* High quality NBR rollers * Helical gear convey * Frequency speed control * Top washing room lift up to 300mm * Glass thickness digital display and controlled by high precision encoder * 3 independent, movable and easy maintenance water tanks and water cycle * High air press and low noise blower, ≤80dB * Easy maintenance blower filter * 2 pairs of special stainless with aluminum air knives * Normal 40 feet container shipment






Hot sell Horizontal  Washing and Drying Machine for float glass low-e glass 12

Hot sell Horizontal  Washing and Drying Machine for float glass low-e glass 13

About Us:

Jinan Lijiang Automation Equipment Co., Ltd. is located in the beautiful spring city------Jinan. It is an enterprise which integrated glass processing equipment research and development, sales and service into a whole world . As it is close to Beijing-Shanghai high-speed rail, the transportation is very convenient.
The company is committed to building high-end insulating glass machinery and equipment by learning from famous experts,
establishing the research and development centers, cooperating with domestic and foreign well-known enterprises, importingadvanced technology and so on.
With the rapid development of insulating glass industry, LIJIANG is looking forward to working with you for win-win situation andjointly creating a new world.



Hot sell Horizontal  Washing and Drying Machine for float glass low-e glass 14
