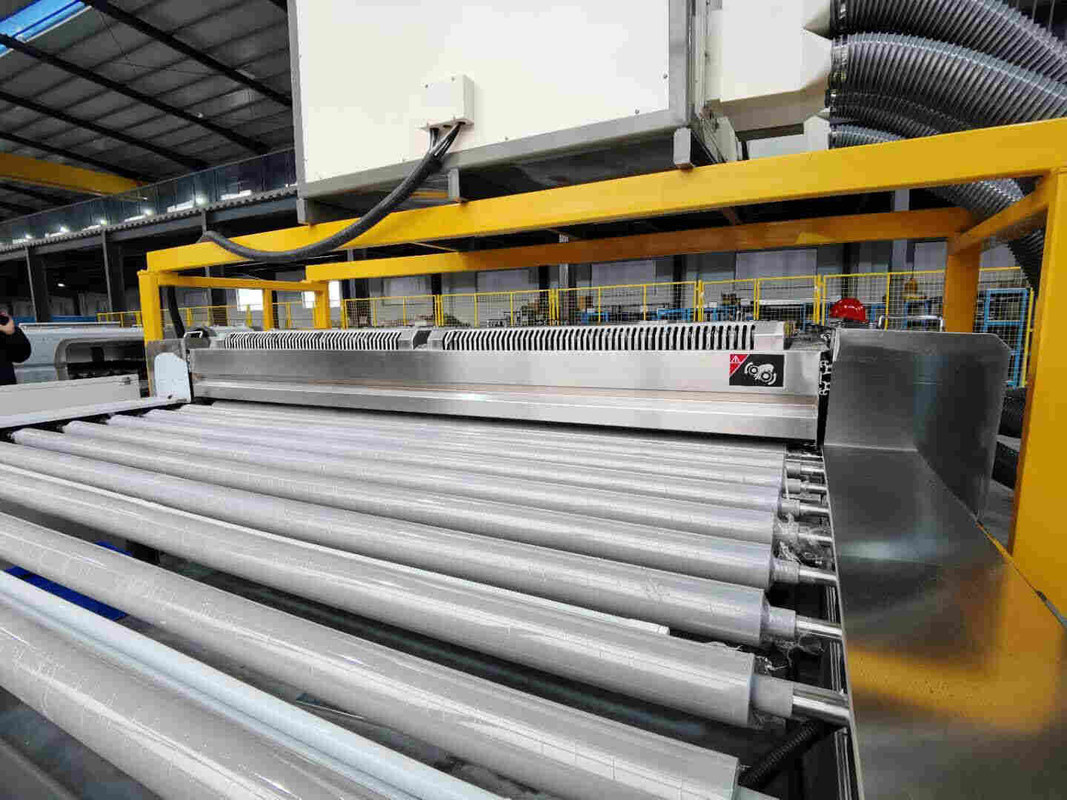

Automatic Horizontal Glass Washing and Drying Machine with Soft Low-e Brushes
Automatic Horizontal Glass Washing and Drying Machine with Soft Low-e Brushes Description
||Automatic Horizontal Glass Washing And Drying Machine With Soft Low-e Brushes
||Stainless Steel For Washing Parts
insulating glass line,
glass processing machines
LIJIANG GLASS- FOR WORLD GLASS MACHINE USER SERVICE

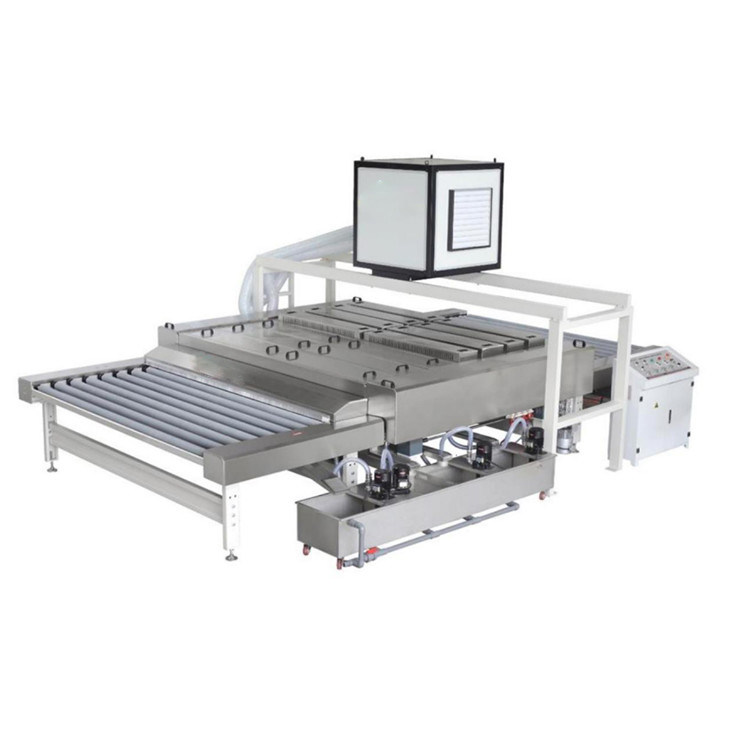

Automatic Horizontal Glass Washing and Drying Machine LJWBQJ2500
- Horizontal Glass Washing and Drying Machine LJWBQJ2500,can be equipment with pretreatment for temper furnace,laminated and insulating glass furnace;all stainless steel clean room,drying room,water tanks pumps, air knife,water pipe,cover,fan housing etc,.,ensure machine durable,not rust.
- Hand made of aluminum alloy support structure,combination of installation,no rust.
- High-precision lifting system,digital display raising height of the upper portion of the machine.
- Three pairs high-quality nylon brushes,brushed the first two pairs brushed can raised to used for LOW-E glass cleaning.
- All the machines conveyor rollers is vulcanized rubber rollers.
- Main driving realize step-less speed regulating by inverter and speed gear transmission to ensure stable and reliable.
►►►Low noise Blower
►►►Special drying knife design
|Maximum glass width
||2500mm (effective maximum: 2650mm)
|Minimum glass specification
||400mm×400mm (limited to single row on left and right sides)
||3mm-25mm (digital display)
||glass thickness within 3-25mm Vmax=1-12m/min
|Main drive, brush speed regulation method
||42KW(water-bearing wind heating: 15KW)
||self-circulation, tap water (according to civil water standards) and deionized water water supplement (deionized water equipment shall be provided by the buyer)
|Dimensions (length × width × height)
- The rest of the sheet metal parts are sprayed with advanced mechanical paint or powder；
- Aluminum alloy assembled structure, no scrap concept, permanent use,high efficiency, energy saving 70% efficiency；
- The rubber roller is made of vulcanized rubber with stainless steel shaft；
- The washing part in contact with water is made of stainless steel；
- Cleaning department, wind staff overall lift, the maximum lift: 350mm,easy to clean and maintain；
- Three pairs of brush(Ø150mm)Stainless steel shaft configuration (low-e glass, ordinary coated glass and sunshine coated glass can be washed without damaging the coated surface)；
- Two pairs of special stainless steel aluminum alloy air knife configuration, strong wind, good air drying effect, with heating system(with temperature control device, optional opening and closing)；
- The fan is equipped with air filter in the air inlet chamber, with large air volume and good air drying effect,The whole fan box is installed in the upper part of the workshop, with the air filter screen on the side for easy inspection and cleaning；
- Main drive for gear transmission, frequency control, digital display , the rotation of the brush roller in the washing section is driven by independent belts of the upper and lower motors respectively, the frequency conversion adjustment speed is stable, the service life is long, realizes the cleaning high request special glass；
- Mechanical button control, cleaning machine digital display, easy to operate, easy to operate, easy to maintain；
- Washing machine water tank outside, convenient water tank cleaning, water change, check, so that the washing machine cleaning effect is cleaner.
- Optional with PLC control, touch screen display.It is convenient for workers to operate and maintain, and can be connected to all manufacturers of edge grinding machines without gap.(purchase separately if necessary)
