Product Details:
|
| Name: | Smart Vertical Edge Deleting Machine | Max. Glass Processing Size: | 2500*4500mm |
|---|---|---|---|
| Min. Glass Processing Size: | 400*280mm | Glass Thickness: | 3 - 15mm |
| Diameter Of Grinding Wheel: | 200mm | Conveyor Height: | 500mm |
| Edge Deleting Width: | 10-50mm | Transmission Speed: | 29m/min |
| Edge Deleting Speed: | 2-29m/min | Abrasive Wheel Width: | 10/12/15mm |
| Grinding Wheel Speed: | 0~3000r/min | Total Air Consumption: | 100L/ Min |
| Air Pressure: | ≥0.8MPa | Total Power: | 3P 380V 50Hz 3.35KW |
| Dimension: | Dimensions :9700×2500×3400mm | ||
| High Light: | glass grinding equipment,glass edge polishing machine |
||

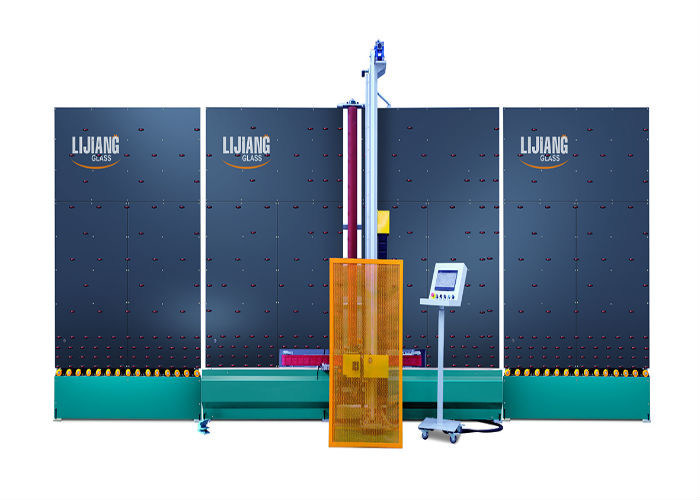

LJDM2545 glass edging machine intelligent vertical edge removing machine is used to remove the edge film of Low-e glass. The glass edging machine adopts imported servo control system, with accurate positioning and stable operation. High-quality grinding wheels are durable and can produce neat and beautiful cracks. The distance can be arbitrarily set between 10 and 150 mm.
| Max. glass processing size | 2500*4500mm |
| Min. glass processing size | 400*280mm |
| Glass thickness | 3-15mm |
| Diameter of grinding wheel | 200mm |
| Conveyor height | 500mm |
| Edge deleting width | 10-50mm |
| Transmission speed | 29m/min |
| Edge deleting speed | 2-29m/min |
| Abrasive wheel width | 10/12/15mm |
| Glass thickness | 3 - 15mm |
| Grinding wheel speed | 0~3000r/min |
| Total air consumption | 100L/ min |
| Air pressure | ≥0.8MPa |
| Total power | 3P 380V 50Hz 3.35KW |
| Dimension | Dimensions :9700×2500×3400mm |
| Total weight | 3700KG |
• Two-way glass channel
• Automatic measurement of dimensions
• Automatic identification of low-radiation surfaces
• Adjustable edge removal
• Head can rotate 360 °
• Safe, fully automatic equipment
• PLC control system, touch screen interface
• Six servo control systems
• Intelligent control system, can identify batch processing
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Jinan Lijiang Automation Equipment Co., Ltd. (Lijiang Glass Factory) is located in the beautiful spring city-Jinan. It is an enterprise integrating R & D, sales and service of glass processing equipment. Due to the proximity to the Beijing-Shanghai high-speed rail, the transportation is very convenient.
The company is committed to drawing on the experience of famous experts, establishing a research and development center, cooperating with well-known domestic and foreign enterprises, introducing advanced technology, etc., and is committed to building high-grade insulating glass machinery and equipment. Now, our friendly partners include Northern Glass, Xinfuxing, Yaohua, Dalian Huaying, Beijing Guanhua, Shanghai Haojing, Sichuan Lihehua and other well-known enterprises. Since the establishment of the company, our products have been exported to nearly 30 countries and regions in Europe, America, South America, Middle East, Southeast Asia, India and so on. At the same time, the company cooperates with North China Industrial Group, Shandong University and other well-known domestic research institutions to continuously improve the level of technical research. So far, we have independently produced a vertical automatic insulating glass production line with filling gas, a vertical insulating glass sealing robot, an automatic interval bending machine, an automatic dehumidifying filling machine and a new automatic butyl rubber extruder, Its technology and quality have reached the highest level of leadership in China.
With the rapid development of the insulating glass industry, Lijiang looks forward to working with you for a win-win situation and creating a new world together.
1. The whole machine is guaranteed for one year.
2. 24-hour email technical support.
3. User friendly English software, user manual and detailed video / CD.
4. We will provide all the spare parts needed for equipment maintenance.
A professional after-sales service team provides face-to-face training and installation services to customer factories.
