Product Details:
|
| Name: | Butyl Extruder Machine | Squeeze Pressure: | 10-18MPa |
|---|---|---|---|
| Temperature: | 110~140℃ | Aluminum Spacer Width: | 4-30mm |
| Speed: | 0-47m/min | ||
| Highlight: | insulating glass line,glass processing machines |
||

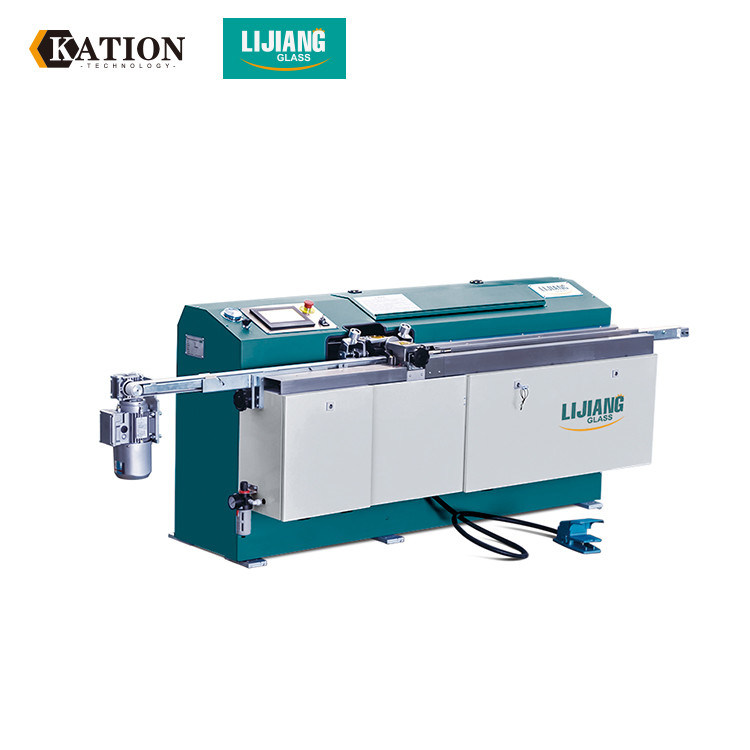

LJTB01 Butyl Extruder Machine 11950
Application

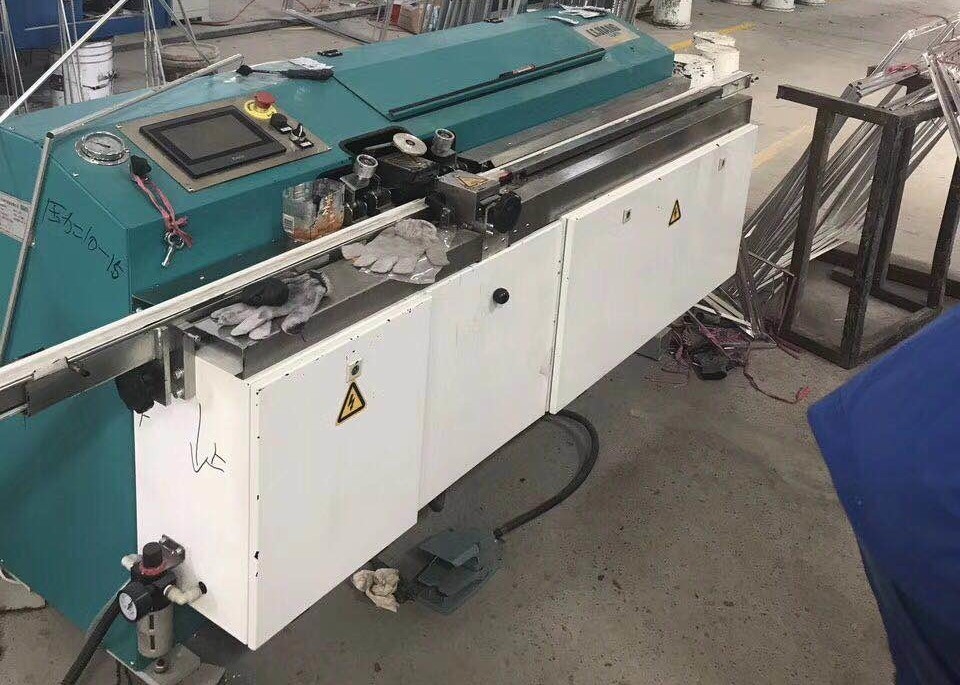

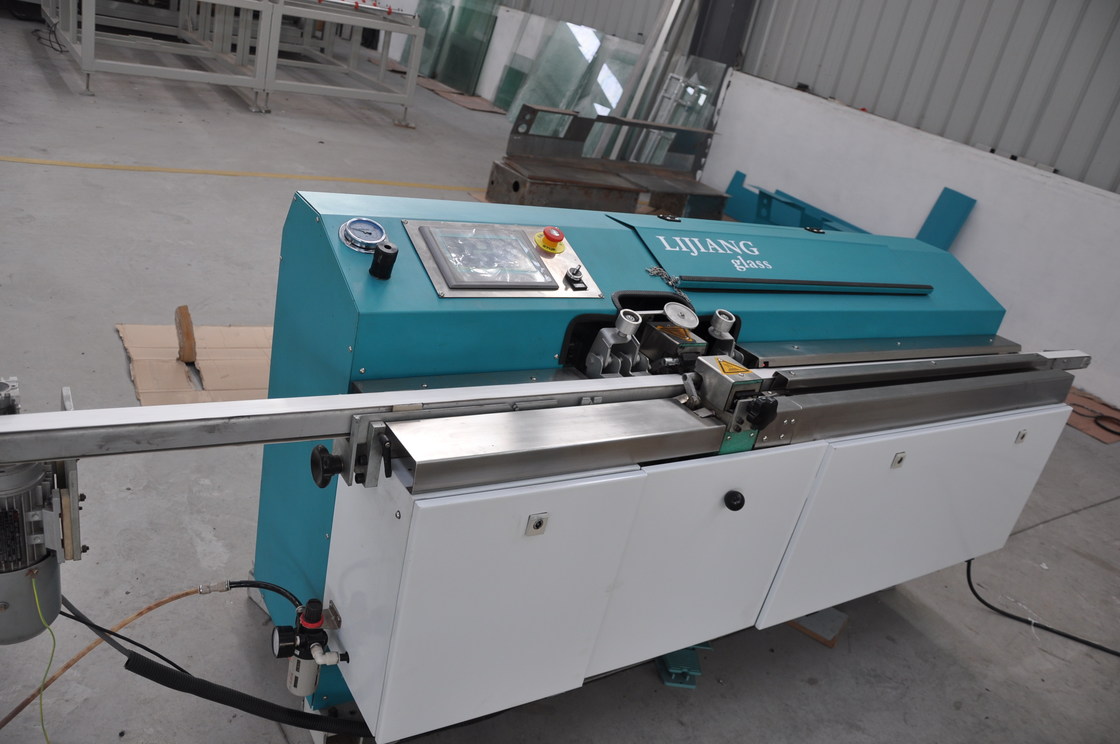

The type of LJTB01 butyl extruder machine is used for spreading aluminum spacer frames evenly
with hot melt butyl. This equipment use large electrical control panel which makes the operation
more easier.
The conveyor of aluminum is controlled by frequency converter, and the speed can be adjusted
from 0m/min to 47m/min, which has the fastest speed in China. It is very popular with energy-saving.
Its squeezing system adopts pneumatic and hydraulic supercharging system
which makes the squeezing pressure more stable. The dispensing cylinder uses vertical rotary support
system and it makes the refill of butyl easier.
It can prolong the life of squeezing system and set the heating time in 24 hours with electricity and air
pressure. The distance of squeezing head can be adjusted automatically according to different aluminum
spacer. The machine has reached the worldwide technology with the characteristic of complete function
and stable working mode.
Technical Data
| Squeeze pressure | 10-18MPa |
| Temperature | 110~140℃ |
| Aluminum spacer width | 4-30mm |
| Speed | 0-47m/min |
| Diameter of butyl cylinder | 200mm |
| Air supply | 0.4m³/min |
| Air pressure | ≥0.6MPa |
| Total power | 380V, 5KW, 50HZ |
| Dimension | 2600×680×1100mm(L×W×H) |
| Weight | 650kg |
² Other features
1. Filter out debris automatically through auto exhaust, keep spreading quickly and evenly.
2. Quickly speed of warming, improve work effect.
3. Adjustable coating speed, can up to 0-47m/min.
4. Can save about 40% materials, only 5g/m.
5. Extruder head height adjustment structure.
6. Automatic centering and clamping structure.
7. Stable temperature and it is convenient to adjust the sealing material automatically.
