glass machinery Insulating Glass Production Line for double glazing class

Large Image : glass machinery Insulating Glass Production Line for double glazing class

Product Details:

Place of Origin:	China
Brand Name:	LIJIANG
Certification:	CE
Model Number:	LJBZ2535

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	US120000
Packaging Details:	container
Delivery Time:	15work days
Payment Terms:	L/C, T/T
Supply Ability:	10sets/month

Contact Now

glass machinery Insulating Glass Production Line for double glazing class

Description

Name:	Automatic Insulating Glass Production Line LJBZ2535	Max. Glass Size:	2500mm*3500mm
Min. Glass Size:	280mm*400mm	Glass Thickness:	3-15mm
Insulating Glass Thickness:	50mm / 60mm	Glass Washing Speed:	2-10m/min
Glass Conveyor Speed:	45m/min	Washing Brushes:	3 Pairs
Water Supply:	Water Consumption:0.5t/h Conductivity：40μs/cm	Air Supply:	Flow: 0.8m/min
Air Pressure:	≥0.8MPa	Total Power:	3P 380V 50HZ 40KW
Dimension:	2350035003700mm 6500kg	Weight:	6500kg
Highlight:	insulating glass line , glass processing machines

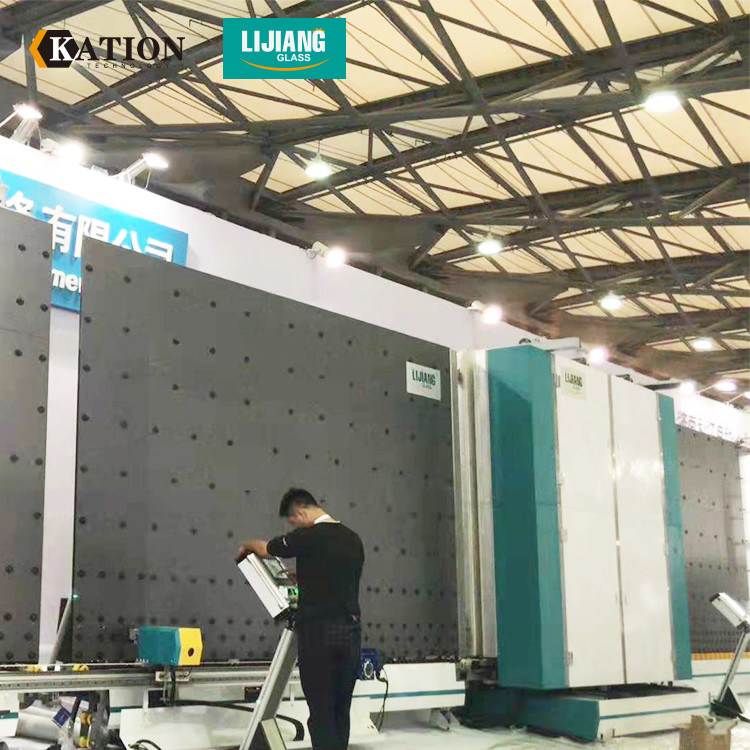

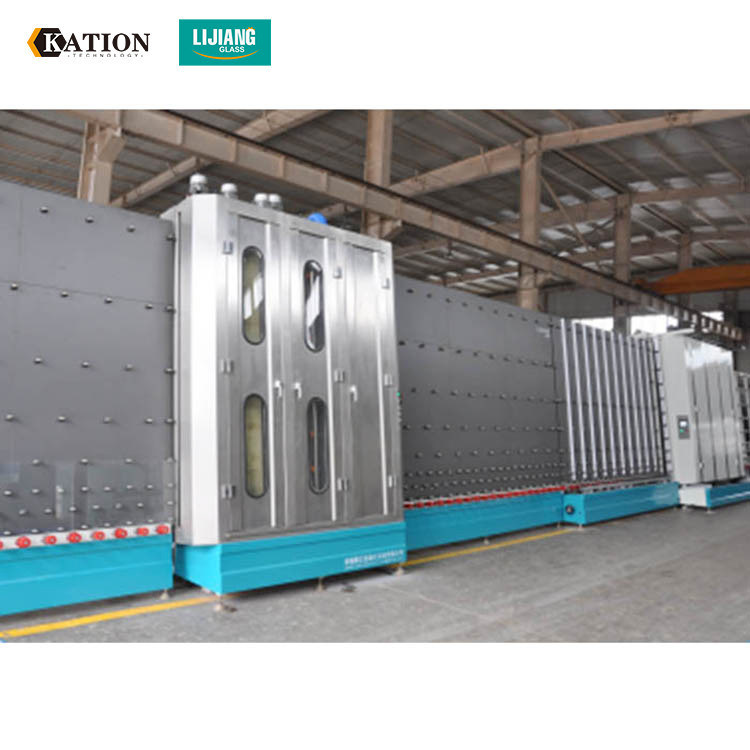

Automatic Insulating Glass Production Line LJBZ2535

Product description

glass machinery Insulating Glass Production Line for double glazing class 0

LIJIANG IG line(glass processing machinery) adopts the latest technology, its main purpose is to create high-end quality and provide a great deal of useful functionality, improve production efficiency, save production costs and produce maximum benefits.

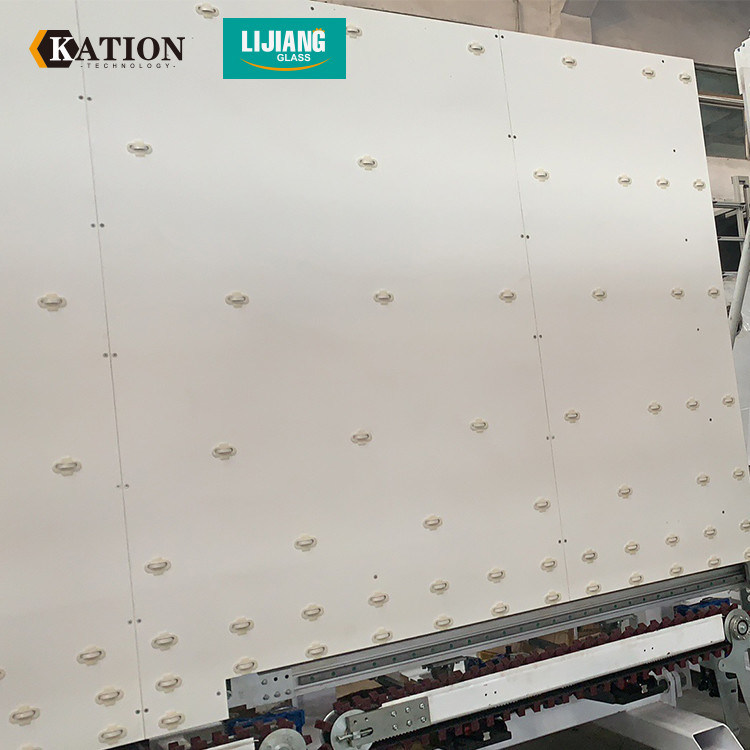

Now LIJIANG mainly has two kinds of IG line with different two different technologies. One uses transfer wheels to transport glass, and the other is a new technology that uses air-floating technology to transport glass. This new technology is to prevent the glass from being contaminated by wheels and leaving traces, so new technology is used to improve the IG production’s high quality.

Specification

Max. glass size	2500mm*3500mm
Min. glass size	280mm*400mm
Glass thickness	3-15mm
Insulating glass thickness	50mm / 60mm
Glass washing speed	2-10m/min
Glass conveyor speed	45m/min
Washing brushes	3 pairs
Water supply	Water consumption:0.5t/h conductivity:40μs/cm
Air supply	Flow: 0.8m/min
Air pressure	≥0.8MPa
Total power	3P 380V 50HZ 40KW
Dimension	2350035003700mm
Weight	6500kg

Transfer wheels VS air-floating technology

glass machinery Insulating Glass Production Line for double glazing class 1

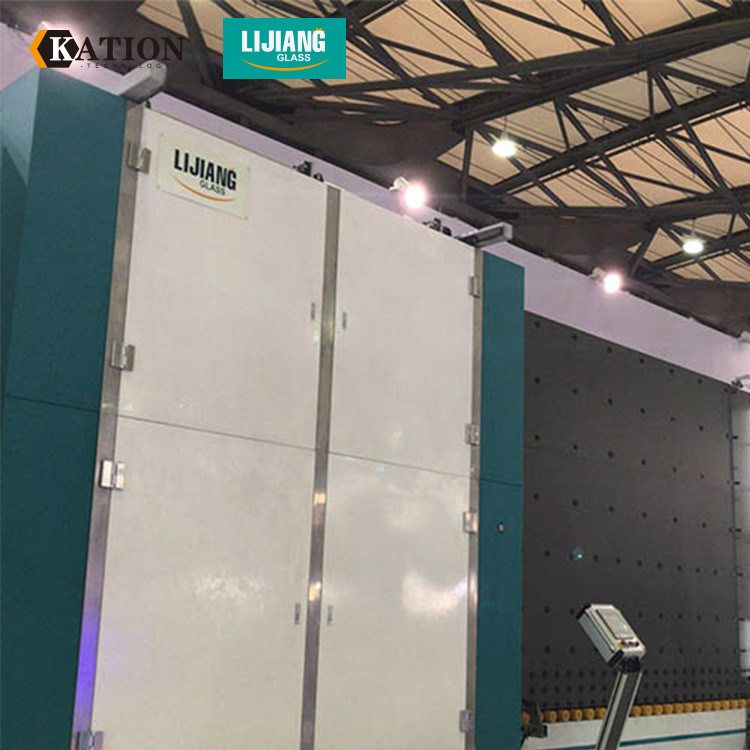

There is the Low-e glass sensor in the washing machine

The washing machine uses 304 stainless steel materials

glass machinery Insulating Glass Production Line for double glazing class 3

The washing machine uses six soft (Low-e) brushes with the 0.1mm diameter only.

glass machinery Insulating Glass Production Line for double glazing class 4

glass production machinery Using Europe's advanced anti-noise system to create a good working environment for employees

glass machinery Insulating Glass Production Line for double glazing class 5

Water heating system and water filter system

glass machinery Insulating Glass Production Line for double glazing class 7

The special structure inside the washing machine can automatically recognize glass thickness. Allowing different thicknesses of glass to be transferred quickly, increasing production speed. According to the test, it takes only 22s to produce a 1m*m insulating glass.

The pressing box uses servo motor and timing belt to support pressing IG units.

glass machinery Insulating Glass Production Line for double glazing class 9

It is the first one in China to use adjustable points to ensure that the platen will never deform.
Energy saving of pressing box
Automatic High - speed filling argon gas

Packing

glass machinery Insulating Glass Production Line for double glazing class 10

company profile

glass machinery Insulating Glass Production Line for double glazing class 11
