Product Details:
|
| Name: | Automatic Butyl Coating Machine | Brand: | Siemens |
|---|---|---|---|
| Squeeze Pressure: | 10-18MPa | Aluminum Spacer Width: | 6A-27A |
| Speed: | 5-47m/s | Diameter Of Butyl Cylinder: | 200mm |
| Power: | 380V,5.7kw,50HZ | Dimension: | 2800*700*900mm(L*W*H) |
| High Light: | silicone extruder machine,double glazing equipment |
||

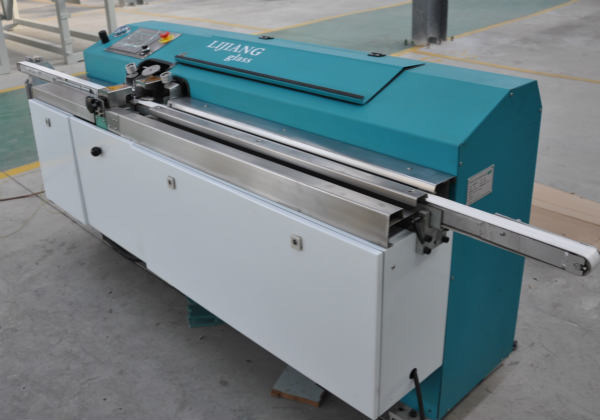

Product description of butyl extruder machine
Automatic Butyl Coating Machineis used for spreading aluminum spacer frames evenly with hot melt butyl. The dispensing cylinder adopts vertical rotary support system, making the refill of butyl more easier.The butyl extruder has the characteristic of complete functions and stable working mode.
The feature of Butyl Coating Machine
1.Butyl extruder machine is suitable for square, rectangular, shaped, arc and kinds of aluminum frames.
2.The Butyl Extruder adopt PLC control system ,touch screen interface
3.The Butyl coating machine can be Quickly speed of warming,Up to 47m / min,improve work effect.
4.Butyl Extruder machine can automatically adjust the amount of glue according to different speeds.
5.Butyl extruder machine adopt Siemens brand,stable performance.
6.Glue cylinder of Butyl coating equipment adopt the upright structure, easy to change butyl.
Technical Data of butyl extruder
| Speed | 5-47m/min |
| Diameter of butyl cylinder |
20mm |
| Aluminum spacer width | 6A-27A |
| Squeeze pressure | 10-18MPa |
| Temperature | 110~140℃ |
| Air pressure | >0.6MPa |
| Diameter of butyl cylinder | 200mm |
| Air supply | 0.4m³/min |
| Dimension | 2800*700*900mm |
| Total power | 380V, 5KW, 50HZ |
Quality control of LIJIANG GLASS
Company Introduction
Jinan Lijiang Automation Equipment Co., Ltd. is located in the beautiful spring city------Jinan. It is an enterprise which integrated glass processing equipment research and development, sales and service into a whole. As it is close to Beijing-Shanghai high-speed rail, the transportation is very convenient.
The company is committed to building high-end insulating glass machinery and equipment by learning from famous experts, establishing the research and development centers, cooperating with domestic and foreign well-known enterprises, importing advanced technology and so on. Now, our friendly partners include North Glass, Xin Fuxing, Yaohua, Dalian Huaying, Beijing Guanhua, Shanghai Hao Jing, Sichuan Li Hehua and other well-known enterprises. Since the establishment of the company, our products have been exported to Europe, America, South America, the Middle East, Southeast Asia, India, nearly 30 countries and regions. At the same time, our company worked with the well-known domestic research institutes, such as the North China Industrial Group, Shandong University and others, to constantly improve the level of technical research. So far, we have independently produced the vertical automatic IG production line with filling gas on line, the vertical IG sealing robot, the automatic spacer bending machine, the automatic desiccant filling machine and the new fully automatic butyl extruder machine, its technology and quality have reached the highest leading level in China.
With the rapid development of insulating glass industry, LIJIANG is looking forward to working with you for win-win situation and jointly creating a new world.
