Product Details:
|
| Name: | Butyl Extruder Machine | Squeeze Pressure: | 10-18MPa |
|---|---|---|---|
| Temperature: | 110~140℃ | Aluminum Spacer Width: | 4-30mm |
| Speed: | 0-47m/min | ||
| Highlight: | insulating glass line,glass processing machines |
||

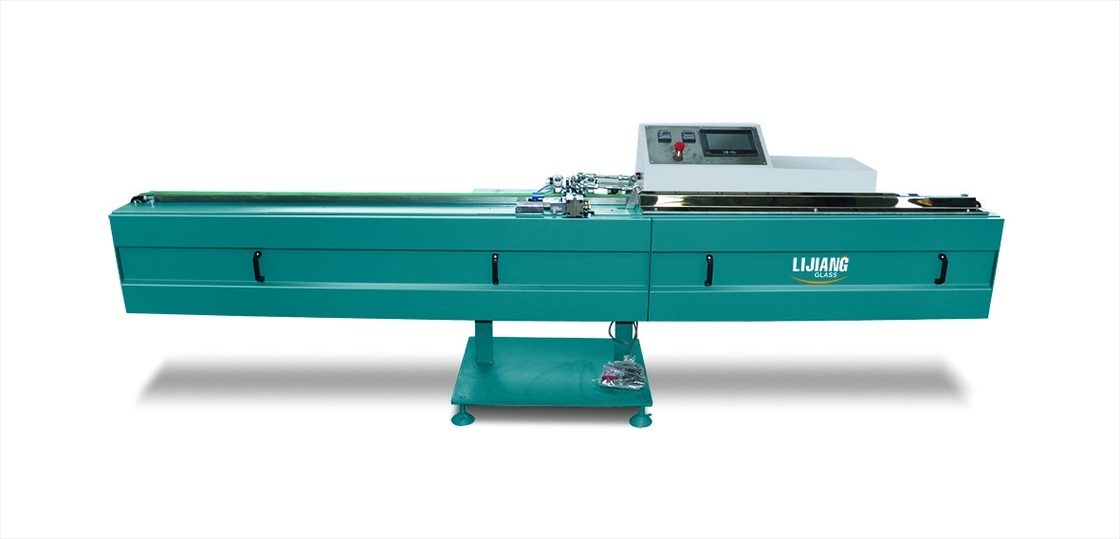

LJTB01 Butyl Extruder Machine
Application

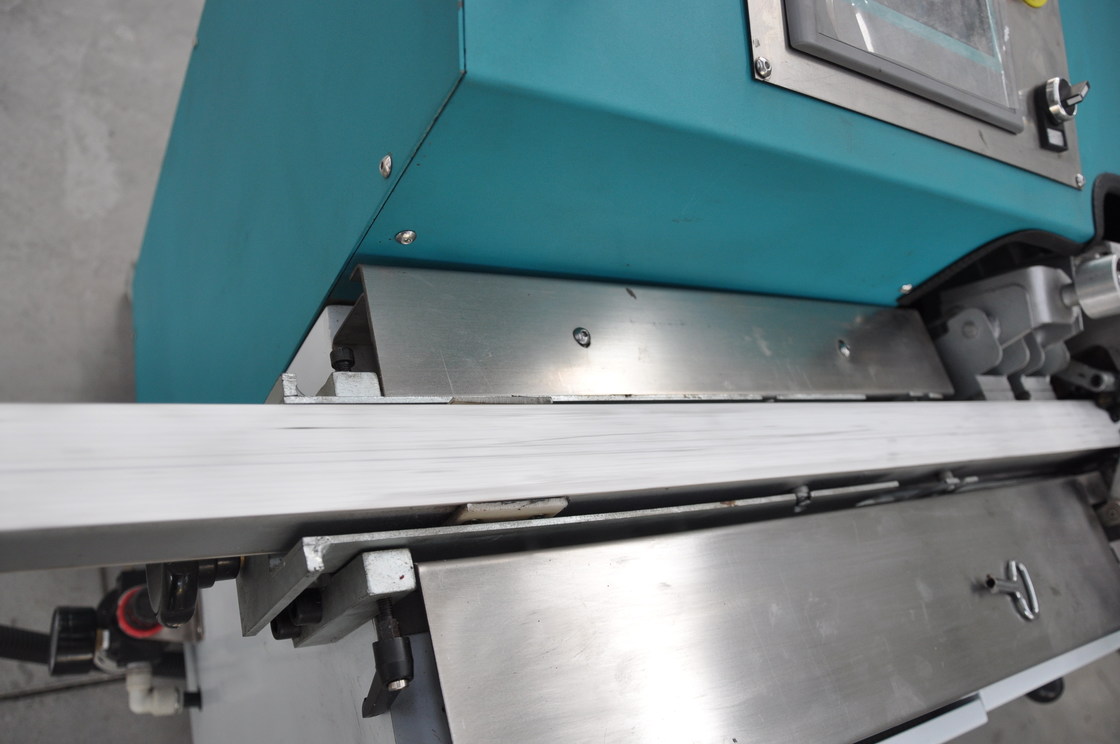

The type of LJTB01 butyl extruder machine is used for spreading aluminum
spacer frames evenly with hot melt butyl. This equipment use large electrical
control panel which makes the operation more easier. The conveyor of aluminum
is controlled by frequency converter, and the speed can be adjusted from 0m/min
to 47m/min, which has the fastest speed in China.
It is very popular with energy-saving. Its squeezing system adopts pneumatic
and hydraulic supercharging system, which makes the squeezing pressure more
stable. The dispensing cylinder uses vertical rotary support system and it makes
the refill of butyl easier.
It can prolong the life of squeezing system and set the
heating time in 24 hours with electricity and air pressure.
KINCO Touch Screen
Clear interface,
Simple operation,
Smart touch screen,
Updated programming
.
Adopt Germany’s Harvey valve, more stable performance
Other features
1. Filter out debris automatically through auto exhaust, keep spreading quickly and evenly.
2. Quickly speed of warming, improve work effect.
3. Adjustable coating speed, can up to 0-47m/min.
4. Can save about 40% materials, only 5g/m.
5. Extruder head height adjustment structure.
6. Automatic centering and clamping structure.
7. Stable temperature and it is convenient to adjust the sealing material automatically.
Technical Data
| Squeeze pressure | 10-18MPa |
| Temperature | 110~140℃ |
| Aluminum spacer width | 4-30mm |
| Speed | 0-47m/min |
| Diameter of butyl cylinder | 200mm |
| Air supply | 0.4m³/min |
| Air pressure | ≥0.6MPa |
| Total power | 380V, 5KW, 50HZ |
| Dimension | 2600×680×1100mm(L×W×H) |
| Weight | 650kg |
JINAN KATION TRADING CO.,LTD.
Founded in 2009, Kation-Tech specializes in R&D, production and sales of Insulating
glass machinery and related auxiliary equipment for the glass deep processing industry
and the door and window construction industry. Has the professional processing basis
of insulating glass machinery, aluminum-plastic windows & doors machinery and the related
auxiliary materials, etc. In this way, we provide the most comprehensive glass processing
solution and windows & doors solution for domestic and foreign customers well.
Until 2019, we exported glass machines and materials to America, South America,
Europe, the Middle East, India and so on, nearly 30 countries and regions. We have
established a perfect international business relationship with 10 powerful agents and
made an endeavor together to build a famous international brand to the world.
Kation-Tech, with craftsmanship, profession and honesty, wins the future with you together!
Certifications
Contact Person: Miss. Rose
Tel: +86 18678875966
Fax: 86-0531-85960498
