|Machine Name:||Vertical Glass Washing And Drying Machine||Max Glass Size:||2000mm*2500mm|
|Min Glass Size:||400mm*250mm||Material:||Stainless Steel|
|Brushes:||6 Pieces Of Soft Brushes||Warranty:||1 Year|
glass cleaning machine,
vertical glass washer
Jinan Lijiang Automation Equipment Co., Ltd. is located in the beautiful spring city------Jinan. It is an enterprise which integrated glass processing equipment research and development, sales and service into a whole world. As it is close to Beijing-Shanghai high-speed rail station, the transportation is very convenient.
The company is committed to building high-end insulating glass machinery and equipment by learning from famous experts, establishing the research and development centers, cooperating with domestic and foreign well-known enterprises, importing advanced technology and so on. Now, our friendly partners include North Glass, Xin Fuxing, Yaohua, Dalian Huaying, Beijing Guanhua, Shanghai Hao Jing, Sichuan Li Hehua and other well-known enterprises. Since the establishment of the company, our products have been exported to Europe, America, South America, the Middle East, Southeast Asia, India, nearly 30 countries and regions. At the same time, our company worked with the well-known domestic research institutes, such as the North China Industrial Group, Shandong University and others, to constantly improve the level of technical research. So far, we have independently produced the vertical automatic IG production line with filling gas on line, the vertical IG sealing robot, the automatic spacer bending machine, the automatic desiccant filling machine and the new fully automatic butyl extruder machine, its technology and quality have reached the highest leading level in China.
1. It is made of stainless steel, the brush bearing is made of Harbin stainless steel, which is famous in China;

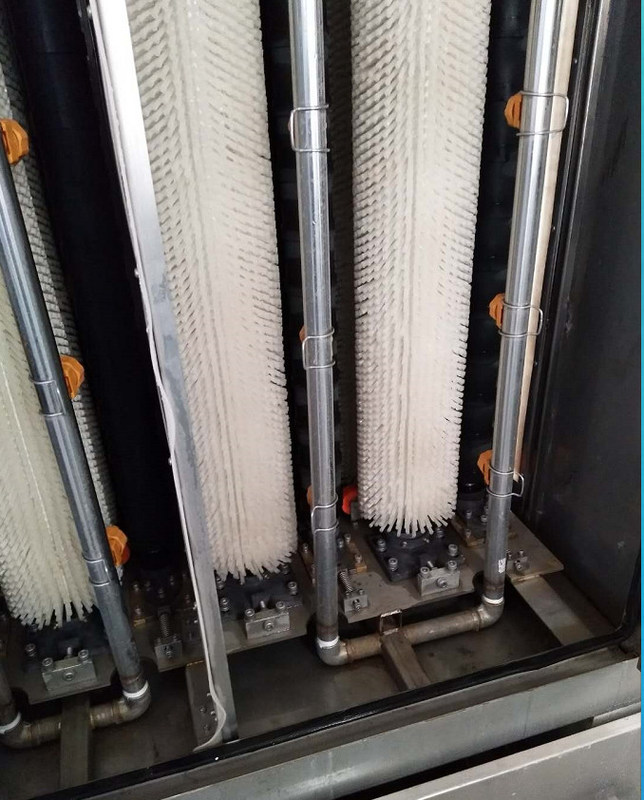

2.3 pairs of soft brush is equipped with 0.1mm brush wire;
3. Use European anti noise mode to reduce noise;
Drying section :
1. The front and rear extrusion wheels are powered to keep different sizes of glass can pass quickly and smoothly;
2. The new type air knife could adjusts the size of the air vent through the aluminum duck beak; reduces the number of adjusting screws, ensures that each screw is not loose, and avoids the resonance of the air knife.
3. The width of the air knife can be adjusted automatically according to the thickness of the glass
|Max. glass size||2000mm*2500mm|
|Min. glass size||280mm*400mm|
|Glass washing speed||2-10m/min|
|Glass conveyor speed||45m/min|
|Washing brushes||3 pairs of soft brushes with 0.1mm hair|
|Water supply||Water consumption:0.5t/h conductivity:40μs/cm|
