Hot Sales Automatic Spacer Bending Machine of Insulating Glass LJZW2020

Hot Sales Automatic Spacer Bending Machine  of Insulating Glass LJZW2020
Hot Sales Automatic Spacer Bending Machine  of Insulating Glass LJZW2020 Hot Sales Automatic Spacer Bending Machine  of Insulating Glass LJZW2020 Hot Sales Automatic Spacer Bending Machine  of Insulating Glass LJZW2020 Hot Sales Automatic Spacer Bending Machine  of Insulating Glass LJZW2020 Hot Sales Automatic Spacer Bending Machine  of Insulating Glass LJZW2020

Large Image :  Hot Sales Automatic Spacer Bending Machine of Insulating Glass LJZW2020

Product Details:
Place of Origin: China
Brand Name: Lijiang
Certification: CE
Model Number: LJZW2020
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: 25000USD
Packaging Details: wooden case or container
Delivery Time: 10days
Supply Ability: 10set/month

Hot Sales Automatic Spacer Bending Machine of Insulating Glass LJZW2020

Description
Name: Automatic Spacer Bending Machine Of Insulating Glass Function: Aluminum Spacer,warm Edge Spacer.steel Spacer
PLC: Siemens
High Light:

insulating glass line

,

glass processing machines

Hot Sales Automatic Spacer Bending Machine  of Insulating Glass LJZW2020 0





























   LIJIANG GLASS- PROFESSIONAL SUPPLIER FOR INSULATING GLASS MACHNE



Hot Sales Automatic Spacer Bending Machine  of Insulating Glass LJZW2020 1

Hot Sales Automatic Spacer Bending Machine of Insulating Glass LJZW2020

Hot Sales Automatic Spacer Bending Machine  of Insulating Glass LJZW2020 2



Main feature

• Germany Siemens PLC control system, touch screen interface

• Japan FUJI CNC servo control system

• Four spacer size storage units

• Using servo system to control feeding mechanism



• Automatically cut and feed aluminum spacers

• Auxiliary function of adjustment for bending large aluminum frame

• Aluminum spacers are available in different sizes and sizes

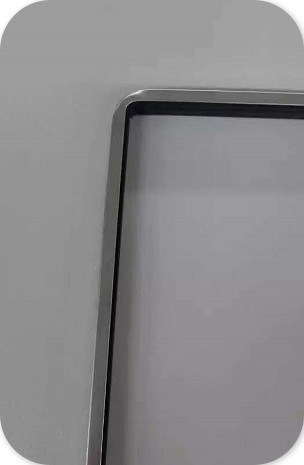

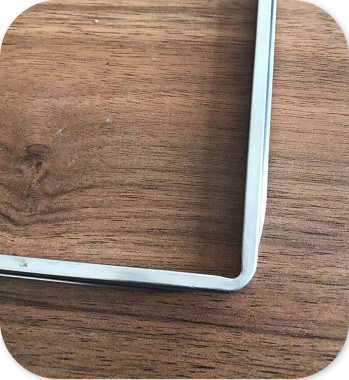

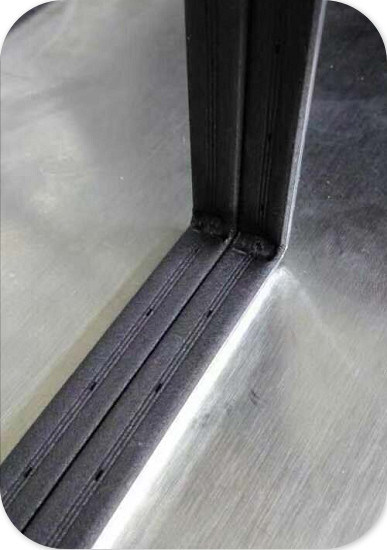

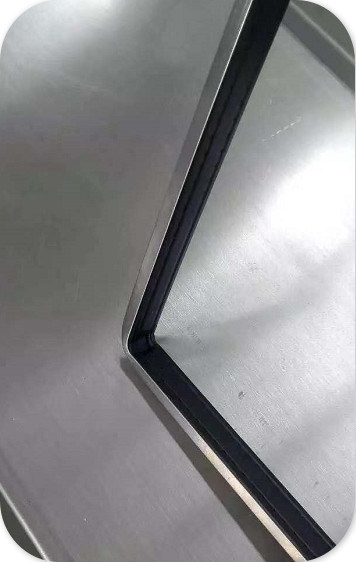

• Bend shaped spacer frames continuously

• Separated guard board outside of bender

• Automatically avoid the connection while bending and cutting

• Pause and Reset device for handling equipment failures

• Can bend aluminum spacer, Technoform, Alupro, Thermix, warm spacer (Swisspacer)



• USB input function, read the excel format file directly etc (Optional)

• Stainless steel (Optional)

• Automatic drill gas filling hole (Optional)

• Connect to ERP system (Optional)

• Spacer printing code function (Optional)

• Printing label sticker function (Optional)



Hot Sales Automatic Spacer Bending Machine  of Insulating Glass LJZW2020 3

Hot Sales Automatic Spacer Bending Machine  of Insulating Glass LJZW2020 4

 ♦Number code are request to spply good service in the future♦

Hot Sales Automatic Spacer Bending Machine  of Insulating Glass LJZW2020 5

            ♦ Printing label sticker function (Optional)

Hot Sales Automatic Spacer Bending Machine  of Insulating Glass LJZW2020 6

     ♦Spacer printing code function (Optional)

Hot Sales Automatic Spacer Bending Machine  of Insulating Glass LJZW2020 7



Technical data

Max. bending size 2000mm*2000mm (2500mm*2500mm)
Min. bending size 250mm*200mm
Aluminum spacer width 5.5-27mm
Dimensional error ±0.5mm
Angle error ±1º
Processing speed ≤26s
Air supply ≥0.65MPa
Total power AC220/380V 50Hz 2.5KW
Dimension 10500mm*2200mm*2600mm


Hot Sales Automatic Spacer Bending Machine  of Insulating Glass LJZW2020 8

Hot Sales Automatic Spacer Bending Machine  of Insulating Glass LJZW2020 9

Jinan Lijiang Automation Equipment Co., Ltd. is located in the beautiful spring city------Jinan. It is an enterprise which integrated glass processing equipment research and development, sales and service into a whole world . As it is close to Beijing-Shanghai high-speed rail, the transportation is very convenient.



The company is committed to building high-end insulating glass machinery and equipment by learning from famous experts, establishing the research and development centers, cooperating with domestic and foreign well-known enterprises, importing advanced technology and so on. Now, our friendly partners include North Glass, Xin Fuxing, Yaohua, Dalian Huaying, Beijing Guanhua, Shanghai Hao Jing, Sichuan Li Hehua and other well-known enterprises. Since the establishment of the company, our products have been exported to Europe, America, South America, the Middle East, Southeast Asia, India, nearly 30 countries and regions. At the same time, our company worked with the well-known domestic research institutes, such as the North China Industrial Group, Shandong University and others, to constantly improve the level of technical research. So far, we have independently produced the vertical automatic IG production line with filling gas on line, the vertical IG sealing robot, the automatic spacer bending machine, the automatic desiccant filling machine and the new fully automatic butyl extruder machine, its technology and quality have reached the highest leading level in China.



With the rapid development of insulating glass industry, LIJIANG is looking forward to working with you for win-win situation and jointly creating a new world.
