Product Details:
|
| Name: | Butyl Extruder Machine | Speed: | 0-47m/s |
|---|---|---|---|
| Brand: | Siemens | Aluminum Spacer Width: | 6-27A |
| Diameter Of Butyl Cylinder: | 200mm | Power: | 380V,5,7kw |
| High Light: | silicone extruder machine,double glazing equipment |
||
Product overview of butyl extruder machine

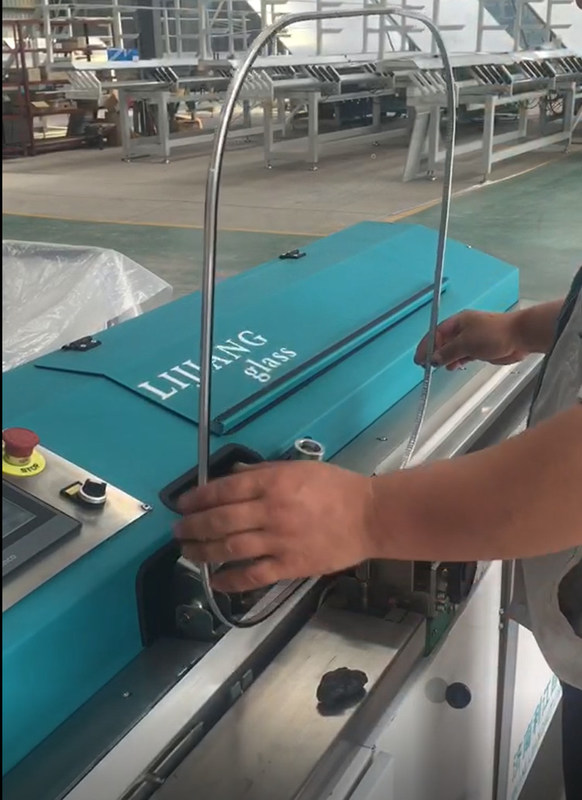

The butyl that be glued on the both side of aluminum frame by New butyl extruder machine, is the first sealant for insulating glass.Butyl extruder machine is suitable for square, rectangular, shaped, arc and kinds of aluminum frames.
The feature of Butyl Extruder
1. Butyl extruder machine adopt Siemens brand, extending working life, stable performance.
2. Quickly speed of warming, improve work effect.
3.The coating speed of Sealant dispensing equipment can be adjusted to 0-47m / min.
4.Filter out debris automatically through auto exhaust, keep spreading quickly and evenly without bubbles.
5.Butyl extruder machine Can save about 40% materials, only 5g/m.
6.Butyl extruder machine have Extruder head height adjustment structure for glue to leave blank
Technical Data of small Extruder machine
| Squeeze pressure | 10-18MPa |
| Temperature | 110~140℃ |
| Aluminum spacer width | 4-30mm |
| Speed | 0-47m/min |
| Diameter of butyl cylinder | 200mm |
| Air supply | 0.4m³/min |
| Air pressure | ≥0.6MPa |
| Total power | 380V, 5KW, 50HZ |
