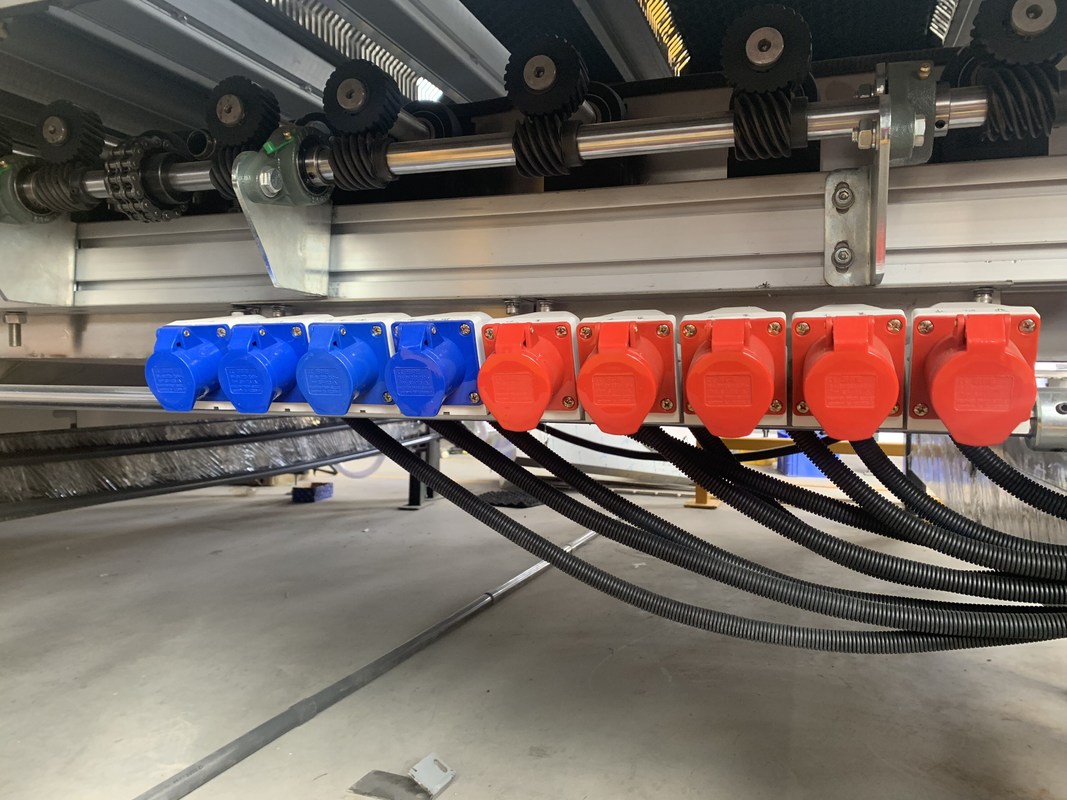

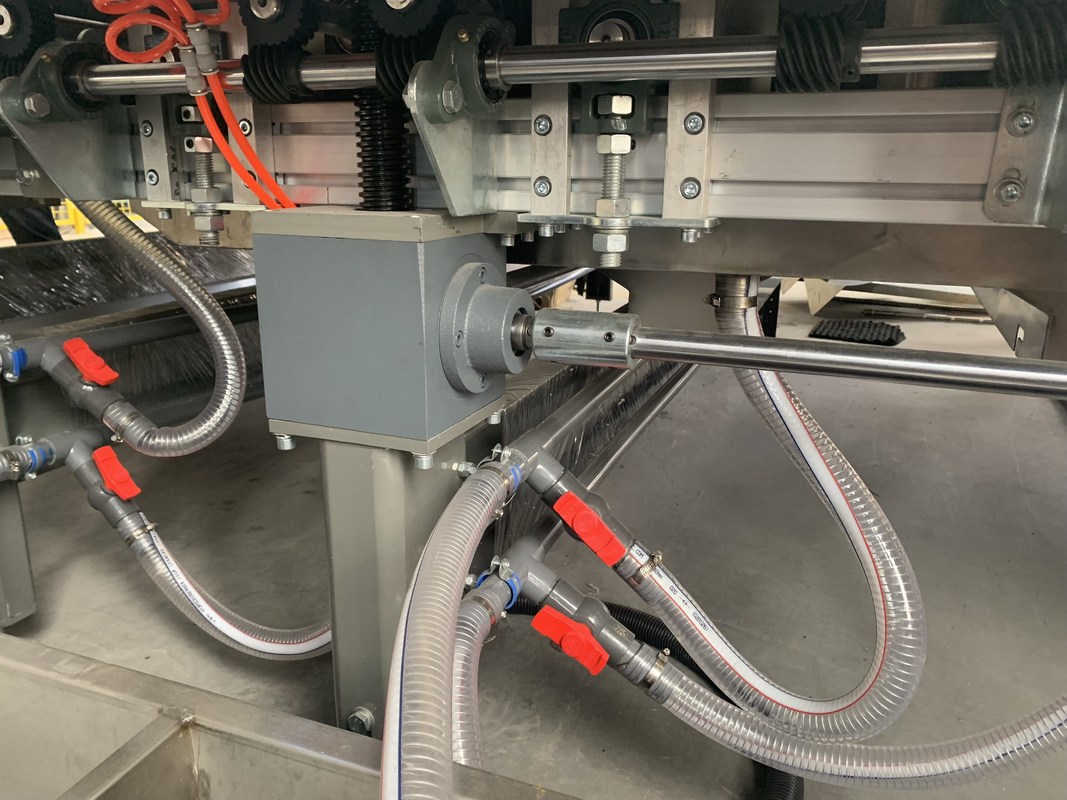

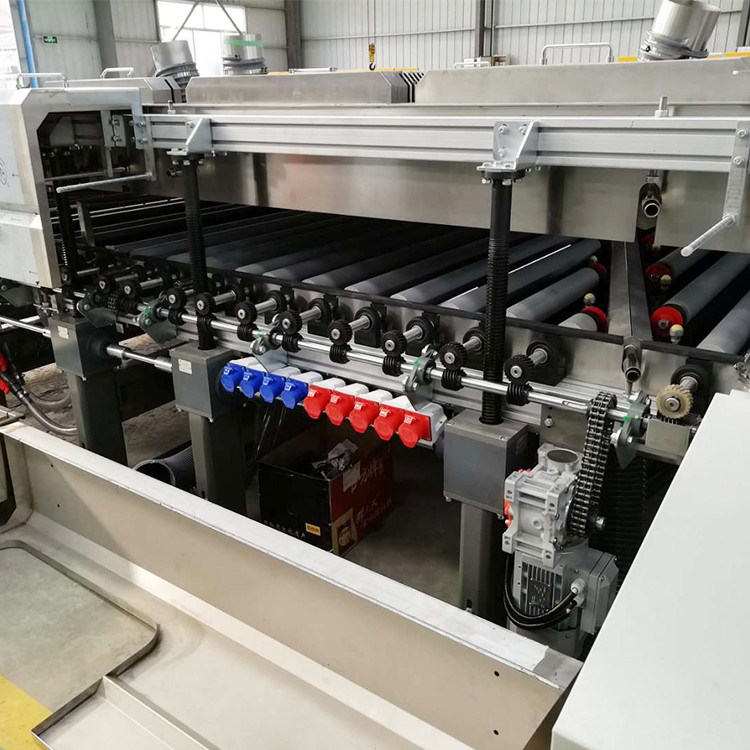

Horizontal glass washing machine for float glass low-e glass and coating glass
LIJIANG GLASS-Solution for Insulating Glass Processing
Horizontal Glass Washing Machine LJWBQJ2500
Glass washing machine LJWBQJ2500 used
for cleaning and drying the upper and lower
surfaces of ordinary plate glass and high quality
low-e glass,it is composed of incoming segment,
cleaning air-drying segment and outgoing segment.
1. Maximum glass width: 2500mm (effective maximum: 2650mm)
2. Minimum glass specification: 400mm×400mm (limited to single row on left and right sides)
3. Glass thickness: 3mm-25mm (digital display)
4. Speed range: glass thickness within 3-25mm Vmax=1-12m/min
5. Main drive, brush speed regulation method: frequency control
6. Table height :900±25mm
7. Total power: 42KW(water-bearing wind heating: 15KW)
8. Water source: self-circulation, tap water (according to civil water standards) and deionized water water supplement (deionized water equipment shall be provided by the buyer)
9. Power source: 380V 50Hz
10. Dimensions (length × width × height) : approximately 6260×4800×3100
11. Weight: about 3940kg
| Maximum glass width | 2500mm (effective maximum: 2650mm) |
| Minimum glass specification | 400mm×400mm (limited to single row on left and right sides) |
| Glass thickness | 3mm-25mm (digital display) |
| Speed range | glass thickness within 3-25mm Vmax=1-12m/min |
| Main drive, brush speed regulation method | frequency control |
| Table height | 900±25mm |
| Total power | 42KW(water-bearing wind heating: 15KW) |
| Water source | self-circulation, tap water (according to civil water standards) and deionized water water supplement (deionized water equipment shall be provided by the buyer) |
| Dimensions (length × width × height) | approximately 6260*4800*3100 |
♦The fan is equipped with air filter in the air inlet chamber, with large air volume and good air drying effect,
♦The whole fan box is installed in the upper part of the workshop, with the air filter screen on the side for easy inspection and cleaning；
