Automatically Filling Argon Vertical Insulating Glass Production Line For Glass Processing

Automatically Filling Argon Vertical Insulating Glass Production Line For Glass Processing
Automatically Filling Argon Vertical Insulating Glass Production Line For Glass Processing Automatically Filling Argon Vertical Insulating Glass Production Line For Glass Processing Automatically Filling Argon Vertical Insulating Glass Production Line For Glass Processing

Large Image :  Automatically Filling Argon Vertical Insulating Glass Production Line For Glass Processing

Product Details:
Place of Origin: CHINA
Brand Name: LIJIANG
Certification: CE
Model Number: LJBZ2025G
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Container
Delivery Time: Within 20 days
Payment Terms: L/C, T/T
Supply Ability: 10sets/month

Automatically Filling Argon Vertical Insulating Glass Production Line For Glass Processing

Description
Name: Vertical Hollow Glass Flat Pressure Production Line Max.glass Size: 2000*2500mm
Glass Thickness: 3-15mm Insulating Glass Thickness: 50mm

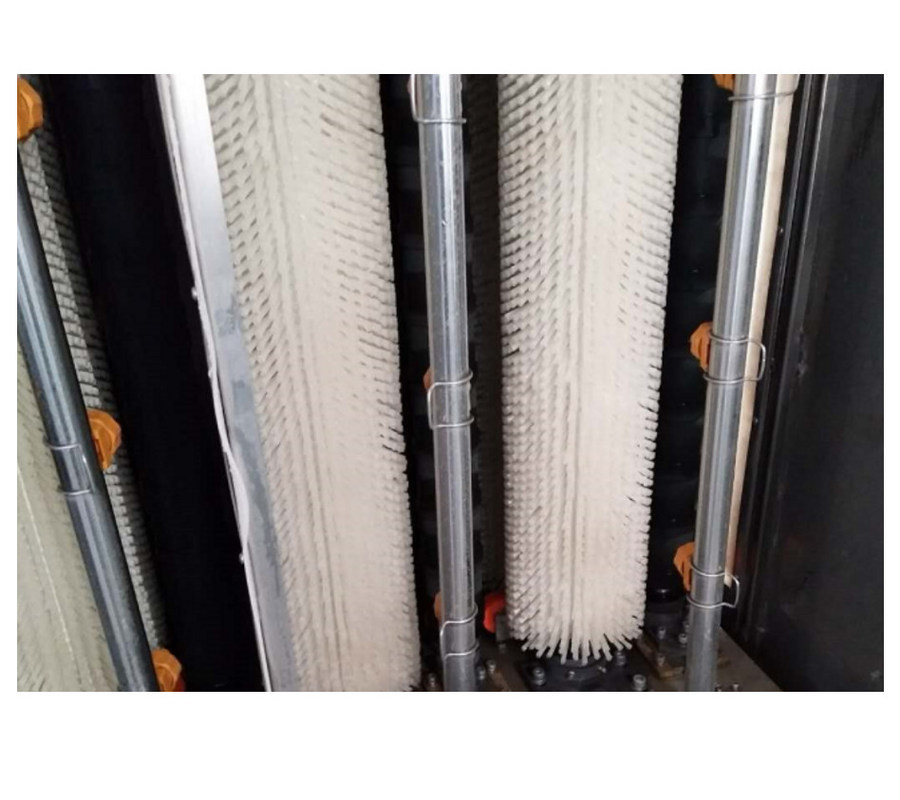

Washing Brushes: 3 Pairs
Highlight:

double glazing production

,

insulating glass line

vertical hollow glass flat pressure production line

LJBZ2025G is a special equipment in aluminum hollow glass production. LJBZ2025G vertical hollow glass flat pressure production line can complete the following functions: glass cleaning, aluminum frame placement, ordinary double glass, ordinary three glass, double glass aeration and three glass aeration.



The Summary of Insulating glass production line

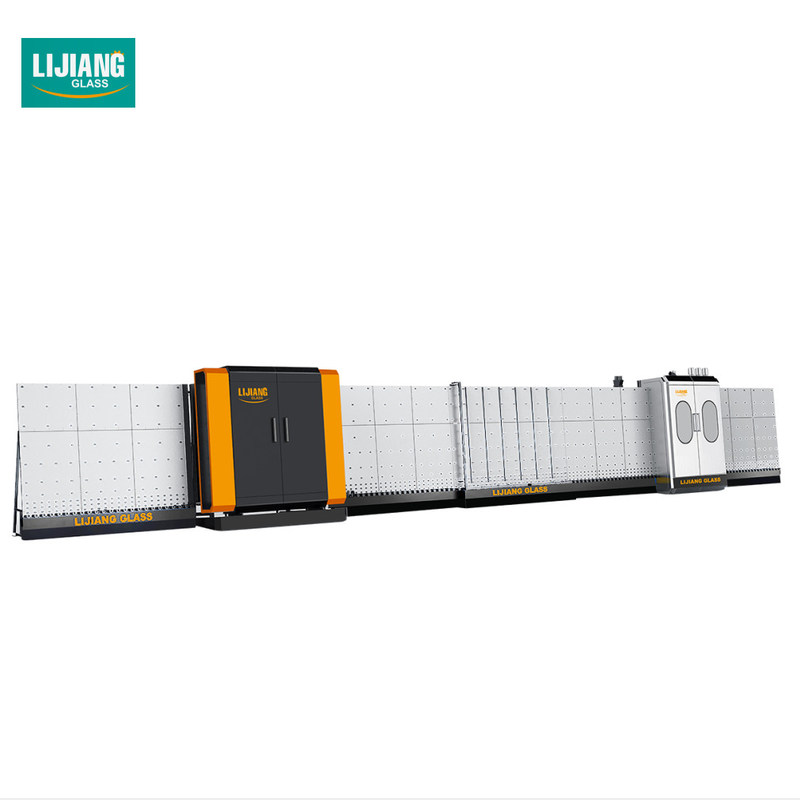

Automatic vertical insulating glass production line is mainly suitable for the production of double glass, triple glass and stepped glass. It realizes online inflation and automatic detection of argon gas content. It can simultaneously press two insulating glasses for glass below 1.5 meters and simultaneously inflate two insulating glasses.  Other special sizes and requirements can be customized according to customer specific requirements.

Automatic vertical insulating glass production line including feed,  cleaning drying section,  discharging period,  inspection frame section,  flat pressure feed zone, inflatable board, pressure discharging section.

Automatically Filling Argon Vertical Insulating Glass Production Line For Glass Processing 0





The feature of  hollow glass flat pressure production line



1.The machine adopts Siemens control system, equipped with high resolution touch screen.



Automatically Filling Argon Vertical Insulating Glass Production Line For Glass Processing 1

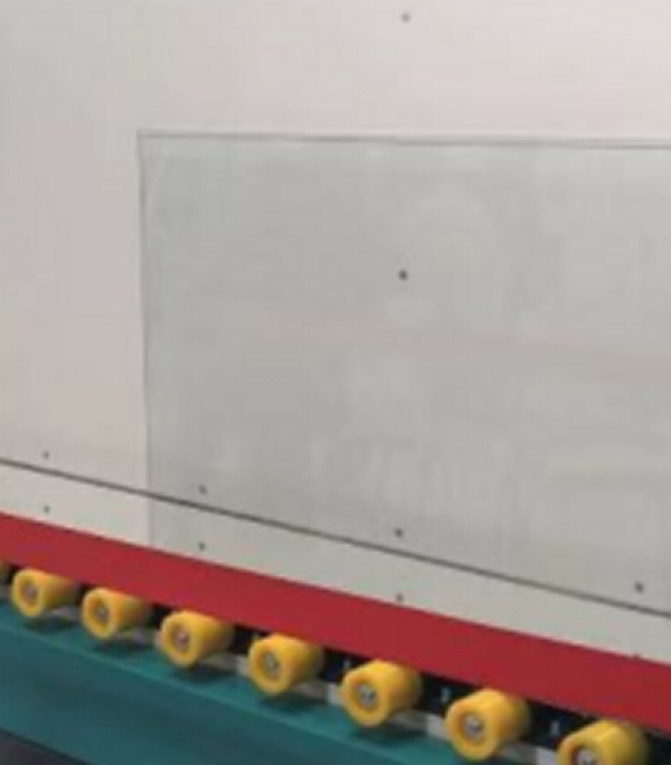

2.Air-buffered backrest prevents glass scratches and glass wheel marks

Automatically Filling Argon Vertical Insulating Glass Production Line For Glass Processing 2

3.Automatic inflating function inside the slab, automatically inflating according to the size of the glass, improving inflation efficiency and gas utilization rate.The IG line fills argon gas with 22s only for one piece of 1m*1m double glazing glass.

Automatically Filling Argon Vertical Insulating Glass Production Line For Glass Processing 3

4.Automatic recognition of coating and LOW-E glass.There is the Low-e glass sensor in the washing machine

5.Automatic Insulating glass production line adopt CNC technology into the pressing board. We designed the adjustable points inside the pressing board to keep the back plate straight all the time.

Automatically Filling Argon Vertical Insulating Glass Production Line For Glass Processing 4

Main functions



1)Making double IG units

2)Making triple (3-layer) IG units

3)Making low-e IG units

4)Making four-sides IG units

5)Making shaped IG units

6)Filling argon gas automatically



Technical data



Max. glass size 2500mm*3500mm
Min. glass size 280mm*400mm
Glass thickness 3-15mm / 19mm
Insulating glass thickness 50mm / 60mm
Glass washing speed 2-10m/min
Glass conveyor speed 45m/min
Washing brushes 3 pairs
Water supply Water consumption:0.5t/h conductivity:40μs/cm
Air supply Flow: 0.8m/min
Air pressure ≥0.8MPa
Total power 3P 380V 50HZ 40KW
Dimension 23500*3500*3700mm
Weight 6500kg



Company introduction



Jinan Lijiang Automation Equipment Co., Ltd. is located in the beautiful spring city------Jinan. It is an enterprise which integrated glass processing equipment research and development, sales and service into a whole. As it is close to Beijing-Shanghai high-speed rail, the transportation is very convenient.



The company is committed to building high-end insulating glass machinery and equipment by learning from famous experts, establishing the research and development centers, cooperating with domestic and foreign well-known enterprises, importing advanced technology and so on. Now, our friendly partners include North Glass, Xin Fuxing, Yaohua, Dalian Huaying, Beijing Guanhua, Shanghai Hao Jing, Sichuan Li Hehua and other well-known enterprises. Since the establishment of the company, our products have been exported to Europe, America, South America, the Middle East, Southeast Asia, India, nearly 30 countries and regions. At the same time, our company worked with the well-known domestic research institutes, such as the North China Industrial Group, Shandong University and others, to constantly improve the level of technical research. So far, we have independently produced the vertical automatic IG production line with filling gas on line, the vertical IG sealing robot, the automatic spacer bending machine, the automatic desiccant filling machine and the new fully automatic butyl extruder machine, its technology and quality have reached the highest leading level in China.



With the rapid development of insulating glass industry, LIJIANG is looking forward to working with you for win-win situation and jointly creating a new world.

Automatically Filling Argon Vertical Insulating Glass Production Line For Glass Processing 5
