Freezer , Polisufide And Silicon Sealant Pump For Insulating Glass Processing

Freezer , Polisufide And Silicon Sealant Pump For Insulating Glass Processing

double glazing production

insulating glass line

Place of Origin:

China

Brand Name:

Lijiang

Certification:

CE

Model Number:

LJST02A

Contact Us
Request A Quote
Product Details
Name:
Seanlant Extruder
Fuction:
For Polysulfide Sealant And Silicone Sealant
Advantage:
Freezer Can Put Two Gun Together
Highlight:

double glazing production

,

insulating glass line

Payment & Shipping Terms
Minimum Order Quantity
Negotiable
Price
Negotiable,
Packaging Details
wooden case
Delivery Time
10days
Payment Terms
L/C, T/T
Product Description

Freezer And Polisufide And Silicon Sealant Pump For Insulating Glass Processing



Freezer , Polisufide And Silicon Sealant Pump For Insulating Glass Processing 0

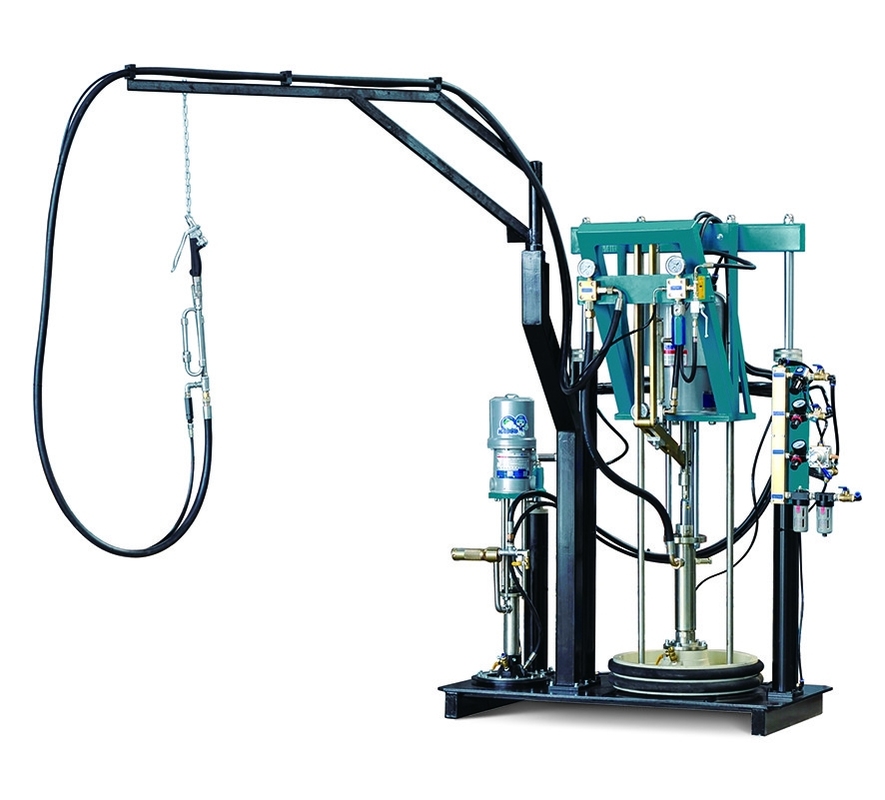

Sealant-spreading Machine LJST02A



Main feature

• Imported motor system to improve equipment efficiency

• Imported sealant gun,stainless steel mixer

• High pressure protect device

• Anti-back flow control structure

• Mixed rate detector can control the rate of two kinds of glue

Freezer , Polisufide And Silicon Sealant Pump For Insulating Glass Processing 1





Freezer , Polisufide And Silicon Sealant Pump For Insulating Glass Processing 2
Freezer , Polisufide And Silicon Sealant Pump For Insulating Glass Processing 3

Technical data



Working air pressure 0.3-0.6MPa
Sealant spreading pressure 15-20MPa
Sealant volume 4L/min
Diameter of A/B sealant 570mm/280mm
Sealant spreading air pressure ratio 50:1
Mixed rate 6:1-14:1
Air supply Flow 0.8m3/min
Air pressure ≥0.8MPa
Overall dimension 1100*950*1630mm


Freezer , Polisufide And Silicon Sealant Pump For Insulating Glass Processing 4

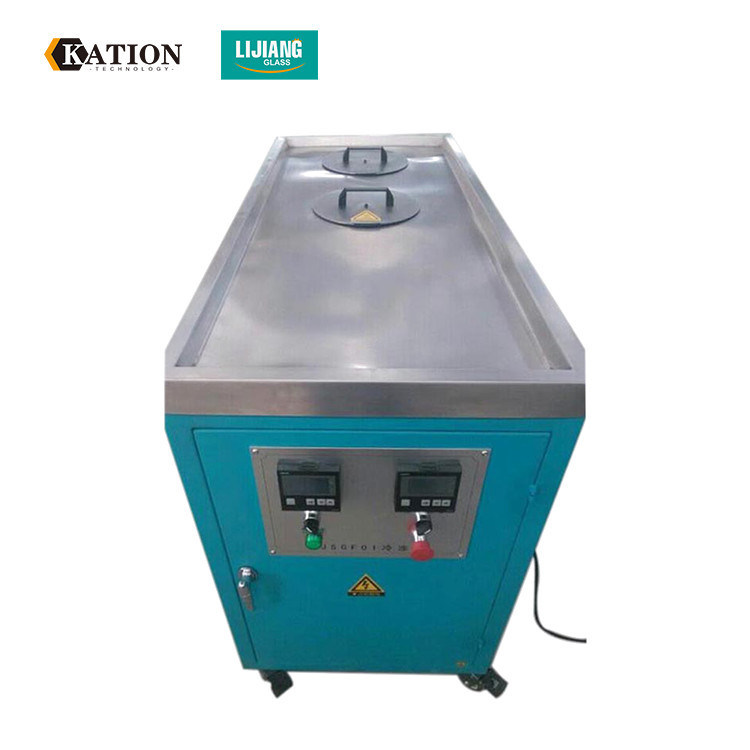

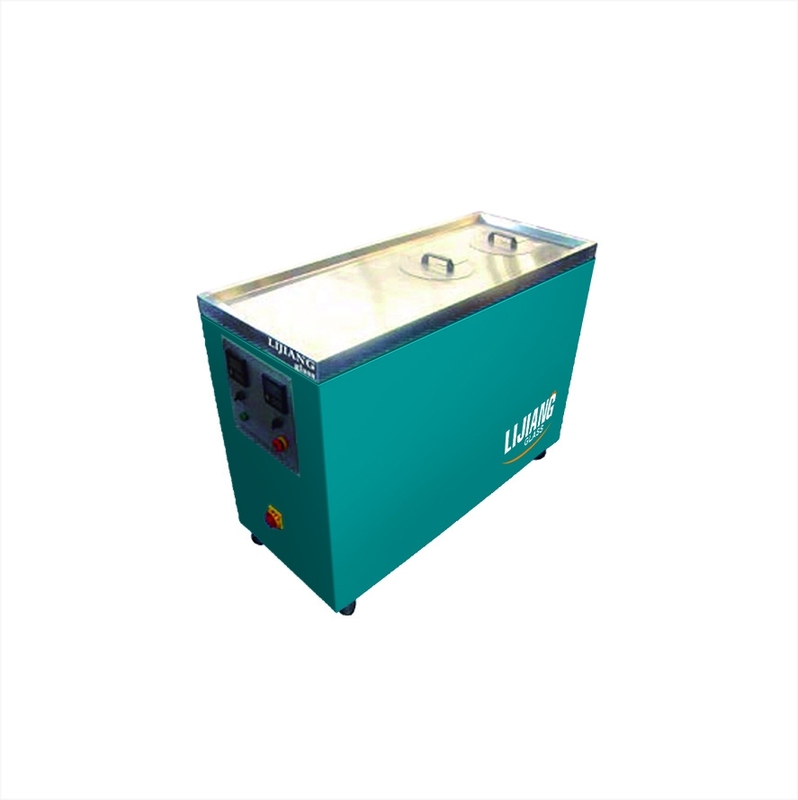

Freezer LJSGF01

Freezer , Polisufide And Silicon Sealant Pump For Insulating Glass Processing 5

Main feature

• It is used for storing the gun when manual glue gun stop work during the process of gluing insulating glass

• Storing at low temperature,to prevent sealant solidify

• Apply to polysulfide and silicone

• Can be effectively reduced waste when cleaning the glue

Technical data

Max refrigerating temperature 70ºC
Min heating temperature -40ºC
Total power 3.8kw
Refrigerating <150min
Overall dimension 1550*60*1300mm





Freezer , Polisufide And Silicon Sealant Pump For Insulating Glass Processing 6

Freezer , Polisufide And Silicon Sealant Pump For Insulating Glass Processing 7

Freezer , Polisufide And Silicon Sealant Pump For Insulating Glass Processing 8

Freezer , Polisufide And Silicon Sealant Pump For Insulating Glass Processing 9



Freezer , Polisufide And Silicon Sealant Pump For Insulating Glass Processing 10Freezer , Polisufide And Silicon Sealant Pump For Insulating Glass Processing 11Freezer , Polisufide And Silicon Sealant Pump For Insulating Glass Processing 12



Freezer , Polisufide And Silicon Sealant Pump For Insulating Glass Processing 13Freezer , Polisufide And Silicon Sealant Pump For Insulating Glass Processing 14

Freezer , Polisufide And Silicon Sealant Pump For Insulating Glass Processing 15Freezer , Polisufide And Silicon Sealant Pump For Insulating Glass Processing 16Jinan Lijiang Automation Equipment Co., Ltd. is located in the beautiful spring city------Jinan. It is an enterprise which integrated glass processing equipment research and development, sales and service into whole world . As it is close to Beijing-Shanghai high-speed rail, the transportation is very convenient.





The company is committed to building high-end insulating glass machinery and equipment by learning from famous experts, establishing the research and development centers, cooperating with domestic and foreign well-known enterprises, importing advanced technology and so on. Now, our friendly partners include North Glass, Xin Fuxing, Yaohua, Dalian Huaying, Beijing Guanhua, Shanghai Hao Jing, Sichuan Li Hehua and other well-known enterprises. Since the establishment of the company, our products have been exported to Europe, America, South America, the Middle East, Southeast Asia, India, nearly 30 countries and regions. At the same time, our company worked with the well-known domestic research institutes, such as the North China Industrial Group, Shandong University and others, to constantly improve the level of technical research. So far, we have independently produced the vertical automatic IG production line with filling gas on line, the vertical IG sealing robot, the automatic spacer bending machine, the automatic desiccant filling machine and the new fully automatic butyl extruder machine, its technology and quality have reached the highest leading level in China.





With the rapid development of insulating glass industry, LIJIANG is looking forward to working with you for win-win situation and jointly creating a new world.
