Product Details:
|
| Name: | Butyl Rubber Spacer Of Insulating Glass | Sapcer Thinkness: | Can Be Request |
|---|---|---|---|
| Advantage: | Can Easy For Shape Glass | ||
| High Light: | double glazing production,insulating glass line |
||

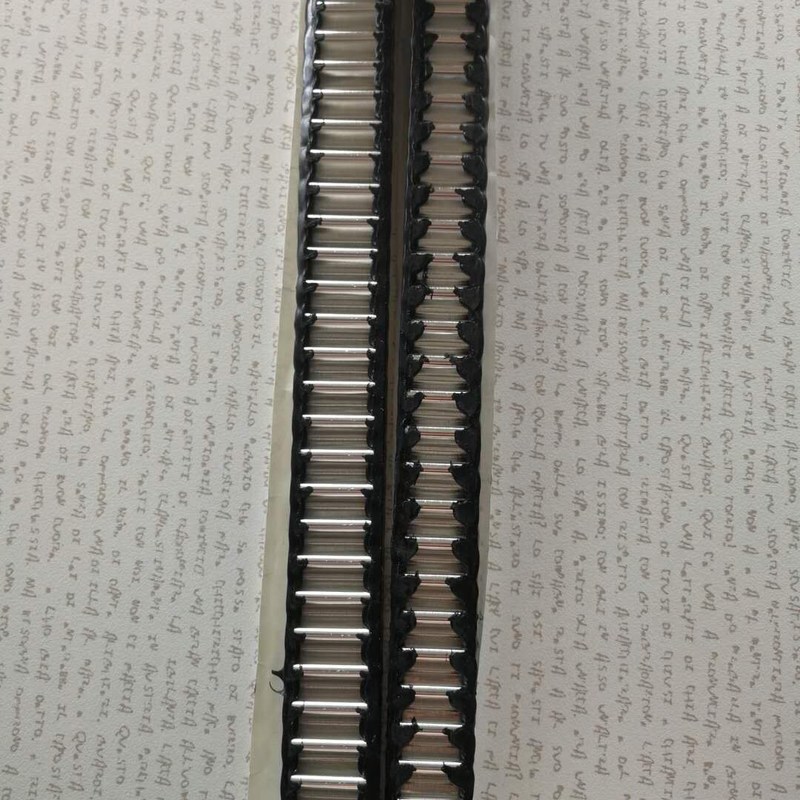

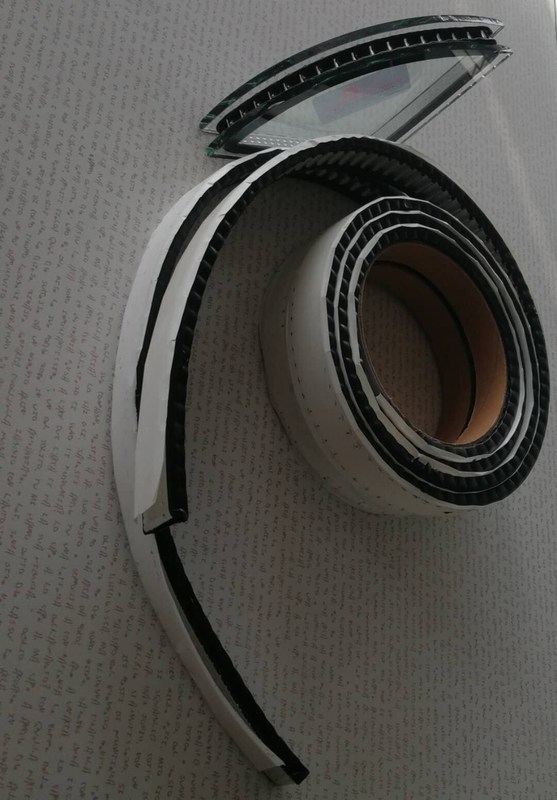

rubber spacer with aluminum sapcer for any shape of insulating glass
Using method and attention
All the glass should be dry and clean. The insulating glass should be made by the following steps.
1. Putting the spacer onto the corner of one glass, then making the spacer straight, at the same time keeping the spacer around the surface of the glass, at the end, reserved 2.5mm– 3.0mm to the edge of the glass and the spacer should be reserved about 20mm more joint the pact pressing the joint, making no space in the circle.
2. Then putting another glass onto the one which has the spacer above, making sure the two pieces of glass are mutual alignment in both vertical and horizonal.
3. Putting them into the hot press machine with the temperature between 110–140Š inside and 50~60Šthe outlet.
4. According to the structure requirement of the insulating glass, two component silicone sealant could be putting outside of the spacer. Then a piece of insulating glass should come out.
5. The butyl spacer must be carried out in accordance with this attention otherwise may cause the seal leakage.
Advantage:
| Specifications and technical parameters | ||||||
| size (mm) | width (mm) | thickness (mm) | m/carton | weight/ carton | carton | |
| B ± | A ± | m + | kg ± | big carton | ||
| 6 | 8.0 ±0.1 | 6.5 ±0.1 | 800 +0.5 | 60.50 ±1.5 | ||
| 7 | 9.0 ±0.1 | 6.5 ±0.1 | 760 +0.5 | 62.10 ±1.5 | carton size | L*W*H:570*470*570 |
| 8 | 10.0 ±0.1 | 6.5 ±0.1 | 700 +0.5 | 62.40 ±1.5 | 20'GP container | 144 carton with pallet |
| 9 | 11.0 ±0.1 | 6.5 ±0.1 | 670 +0.5 | 63.20 ±1.5 | size of roll | Ø535x465 |
| 10 | 12.0 ±0.1 | 6.7 ±0.1 | 630 +0.5 | 62.50 ±1.5 | center diameter | Ø37 |
| 11 | 13.0 ±0.1 | 6.7 ±0.1 | 600 +0.5 | 66.50 ±1.5 | small carton | |
| 12 | 14.0 ±0.1 | 6.7 ±0.1 | 550 +0.5 | 64.30 ±1.5 | ||
| 13 | 15.0 ±0.1 | 7.0 ±0.1 | 520 +0.5 | 64.30 ±1.5 | carton size | L*W*H:470*460*470 |
| 14 | 16.0 ±0.1 | 7.0 ±0.1 | 500 +0.5 | 65.50 +1.5 | 20'GP container | 176carton with pallet |
| 15 | 17.0 ±0.1 | 7.0 ±0.1 | 440 +0.5 | 62.20 ±1.5 | size of roll | Ø465x465 |
| 16 | 18.0 ±0.1 | 7.0 ±0.1 | 430 +0.5 | 63.80 ±1.5 | center diameter | Ø37 |
| special sizes can be customized, MOQ 20 thousand meters. | ||||||
| Raw material options | |||||
| No. | Material name | Material | producing area | composition | Technical requirements |
| 1 | Inner sealant | Butyl rubber | China | butyl sealant. Calcium powder,polyisobutylene | Q/PHX001-2014 |
| 2 | External sealant | Polymer adhesive | Germany | BASF polyisobutylene,butyl sealant, Calcium | GB/T 19187-2003 |
| 3 | Aluninum strip | 3003 aluminum alloy | China | AL-Mn | GB/T 3190 1996 EN AW 3003/AlMnlCu EN 573 3-1994 |
| 4 | Aluminum foil film | Aluninum foil film | China | Aluainum foil membrane | GB/T 28118-2011 |
| 5 | Molecular seive | 3A nolecular sieve | China | 2/3K20•1/3Na20 •Al203 •2Si02 •9/2H20 | GB/T 10504 2017 |
| 6 | heat-insulating film | PVC | China | PVC | GB3830-83 |
Service support
1.24 hours technical supporting by e–mails.
2. 24 hours calling service & online service.
3. Oversea door–to–door service available.
4. User manual and detailed operating video1CD available.
