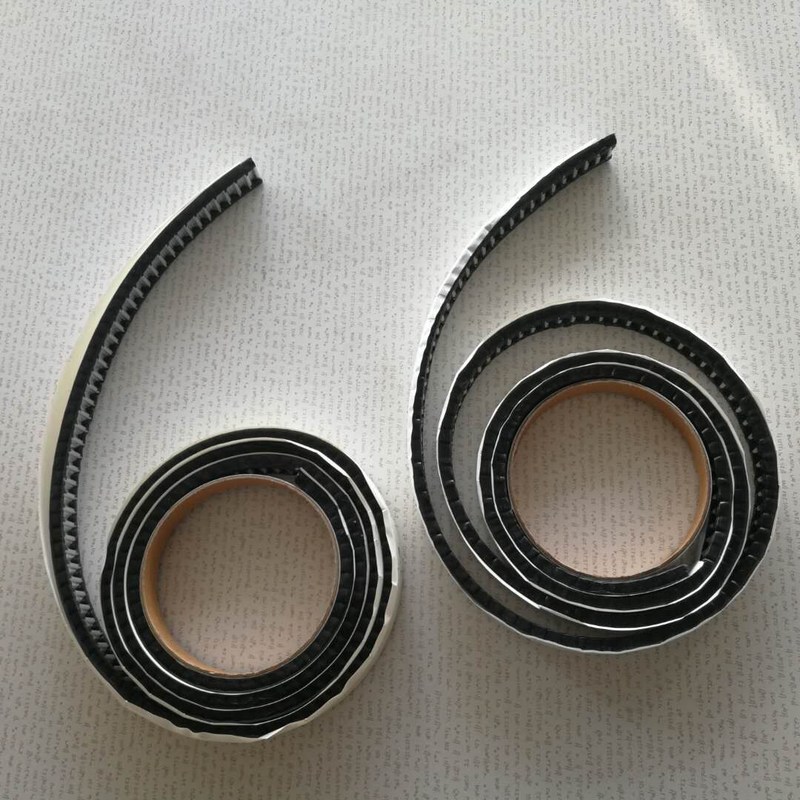

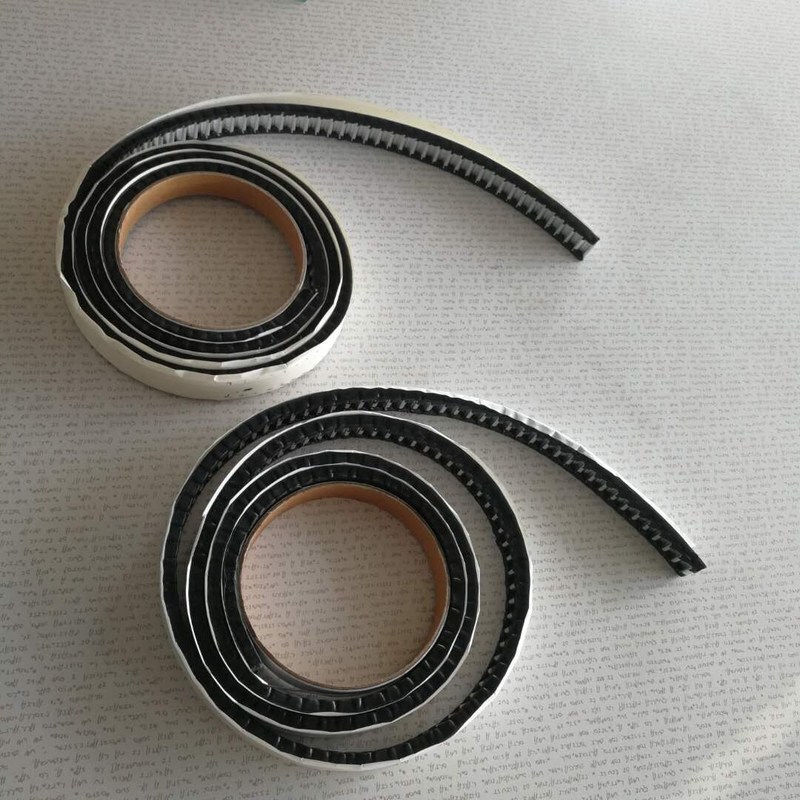

Warm Edge Thchnolgy Butyl Aluminum Sapcer For Insulating Glass Production

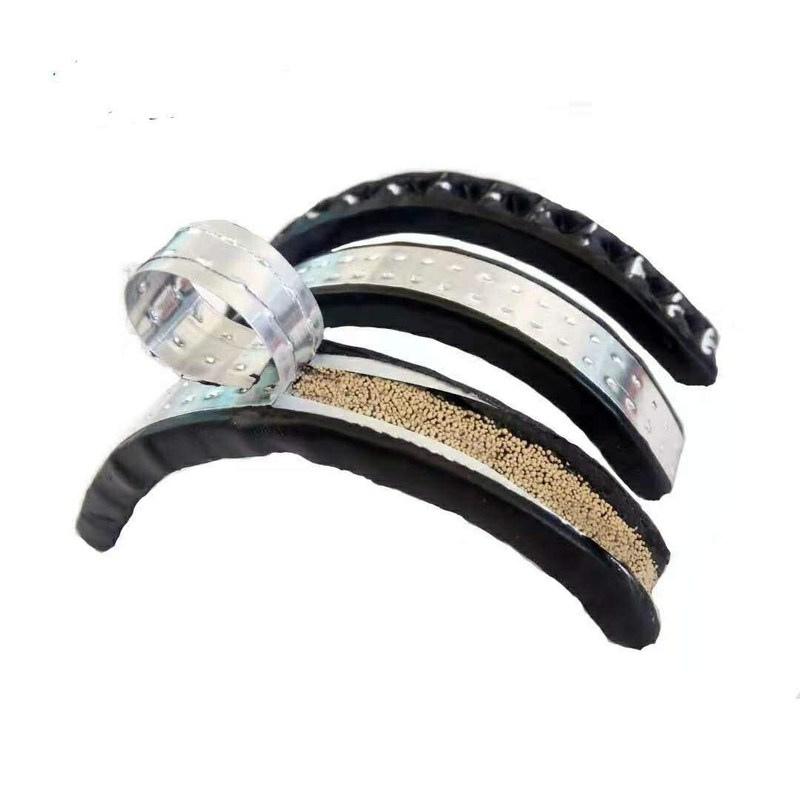

Butyl Spacer is a new product ,it Summarize the advantages and disadvantages of traditional products to optimize and improved products according to market demands.the surface is made of 3003 alloy aluminum strip, Internal use of polymer PVC material,3A molecular sieves, butyl silicone sealant.

Chnspacer is a new product ,it Summarize the advantages and disadvantages of traditional products to optimize and improved products according to market demands.the surface is made of 3003 alloy aluminum strip, Internal use of polymer PVC material,3A molecular sieves, butyl silicone sealant.

Keywords: warm edge spacer.flexible spacer bar.rubber spacer with aluminum

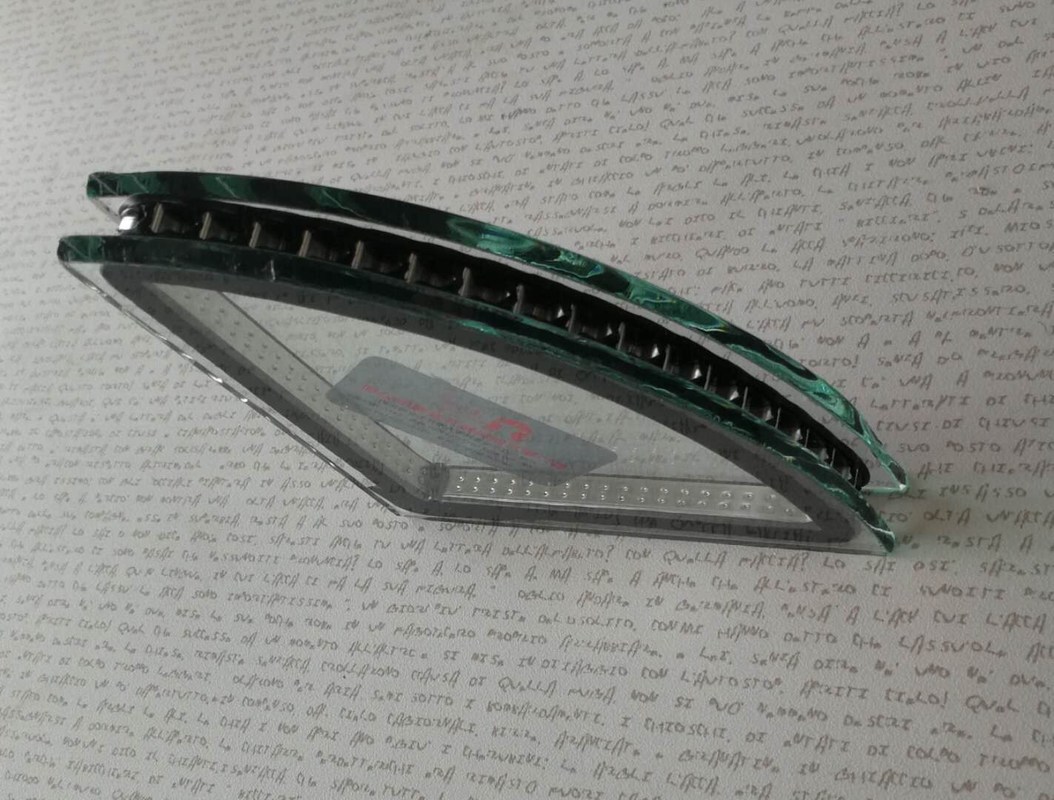

Use for Manufacturing building doors and windows,Train,Bus,insulating glass ,insulating door, shutter,Refrigeration equipment and so on.

Advantage:

• Better sealing:Material butyl rubber come from Germany for good sealing result.
• Better water vapor barrier: Extra long water vapor barrier, it prevent the water vapor to coming into glass from outside.Extra glass life and window and door life.
• Better production efficiency , can process various shapes of insulating glass.
• Good air tightness : Polymer binder prevent water vapor to permeating. Good anti–high temperature perfermance.
• Good resistance to low temperature. Good anti–aging performance.

• Specifications and technical parameters
  size (mm)	width (mm)	thickness (mm)	m/carton	weight/ carton	carton
  	B ±	A ±	m +	kg ±	big carton
  6	8.0 ±0.1	6.5 ±0.1	800 +0.5	60.50 ±1.5
  7	9.0 ±0.1	6.5 ±0.1	760 +0.5	62.10 ±1.5	carton size	L*W*H:570*470*570
  8	10.0 ±0.1	6.5 ±0.1	700 +0.5	62.40 ±1.5	20'GP container	144 carton with pallet
  9	11.0 ±0.1	6.5 ±0.1	670 +0.5	63.20 ±1.5	size of roll	Ø535x465
  10	12.0 ±0.1	6.7 ±0.1	630 +0.5	62.50 ±1.5	center diameter	Ø37
  11	13.0 ±0.1	6.7 ±0.1	600 +0.5	66.50 ±1.5	small carton
  12	14.0 ±0.1	6.7 ±0.1	550 +0.5	64.30 ±1.5
  13	15.0 ±0.1	7.0 ±0.1	520 +0.5	64.30 ±1.5	carton size	L*W*H:470*460*470
  14	16.0 ±0.1	7.0 ±0.1	500 +0.5	65.50 +1.5	20'GP container	176carton with pallet
  15	17.0 ±0.1	7.0 ±0.1	440 +0.5	62.20 ±1.5	size of roll	Ø465x465
  16	18.0 ±0.1	7.0 ±0.1	430 +0.5	63.80 ±1.5	center diameter	Ø37
  special sizes can be customized, MOQ 20 thousand meters.

•
•

  ---

  ---



Service support

    1.24 hours technical supporting by e–mails.

2. 24 hours calling service & online service.

3. Oversea door–to–door service available.

4. User manual and detailed operating video1CD available.
