Product Details:
|
| Production Name: | Automatic Spacer Bending Machine | Spacer Size: | 6A - 27A |
|---|---|---|---|
| Spacer Types: | Aluminum Spacer, Stainless Steel, Warm Spacer | Spacer Shape: | Rectangle , Circle , Other 8 Types Of Shape |
| PLC: | Germany Siemens | Spacer Racks: | 4 Or 12 |
| Length: | 11m | Voltage: | 380v 50Hz 3P |
| High Light: | double glazing production,insulating glass line |
||

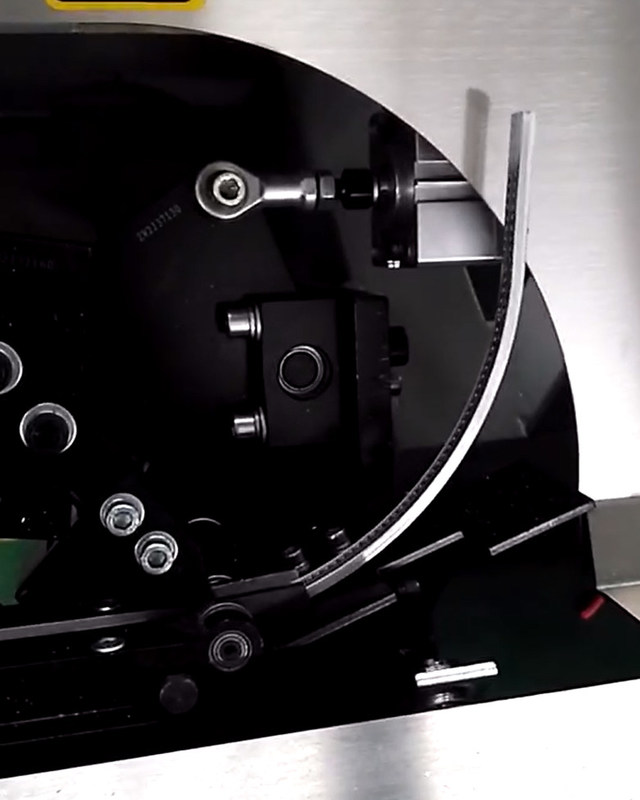

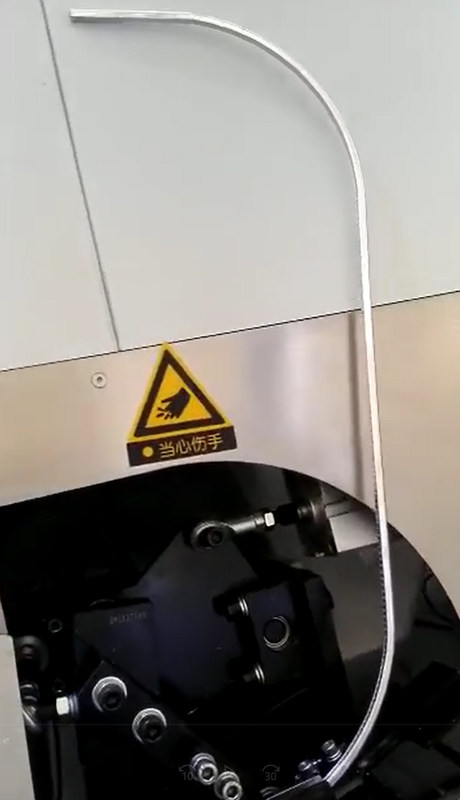

The spacer bending machine is used to bend frame for making double glazing glass, what is the mainly advantages of the spacer bending machine?
1. It is the automatic spacer bending machine. It can cut spacer, bend spacer, feed spacer and advoid the spacer pins automatically. There are 4 sets of racks to storage different sizes of spacers. You can request 12 racks.

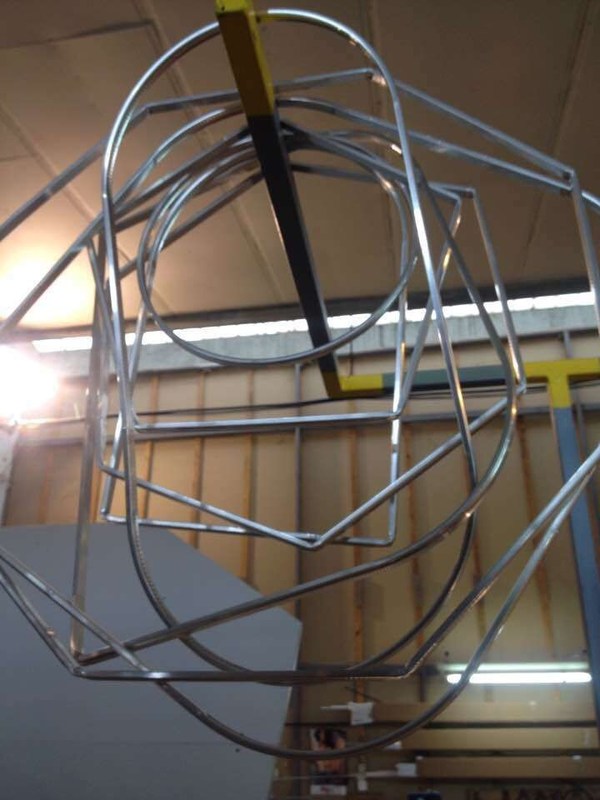

2. It can bend rectangle frame and other 8 typles of shapes, such as circle, semicircle and arc frame.
3. It can bend aluminium spacer, stainless steel bars and warm-edge spacer. But SS and warm spacer are optional.
4. The automatic spacer bending machine has many good and special functions, such as USB function, printing logo, printing label or ERP functions.
5. The spacer bending machine works very fast, 20s for one 1m*1m frame.
| Max spacer size | 2000mm*2000mm |
| Min spacer size | 250mm*200mm |
| Spacer width | 6A - 27A |
| Angle corner | <1 |
| Voltage | 380V 50Hz 3P |
| Bending speed | 20s for 1m*1m frame |
| Dimension | 10500mm*2200mm*2600mm |
| Machine brand | LIJIANG GLASS |
| Dimension error | <0.5mm |
