Warm Edge Insulating Glass Production Line Butyl Rubber Spacer With Aluminum

Warm Edge Insulating Glass Production Line Butyl Rubber Spacer With Aluminum

double glazing production

insulating glass line

Place of Origin:

China

Brand Name:

Lijiang

Certification:

CE

Model Number:

KATION-BS01

Contact Us
Request A Quote
Product Details
Thinkness:
7.2mm
Width:
Can Be Request
Material:
Butyl And Aluminum Spacer
Highlight:

double glazing production

,

insulating glass line

Payment & Shipping Terms
Minimum Order Quantity
Negotiable
Price
negotiation
Packaging Details
Paper case
Delivery Time
10days
Payment Terms
L/C, T/T
Supply Ability
100set/month
Product Description

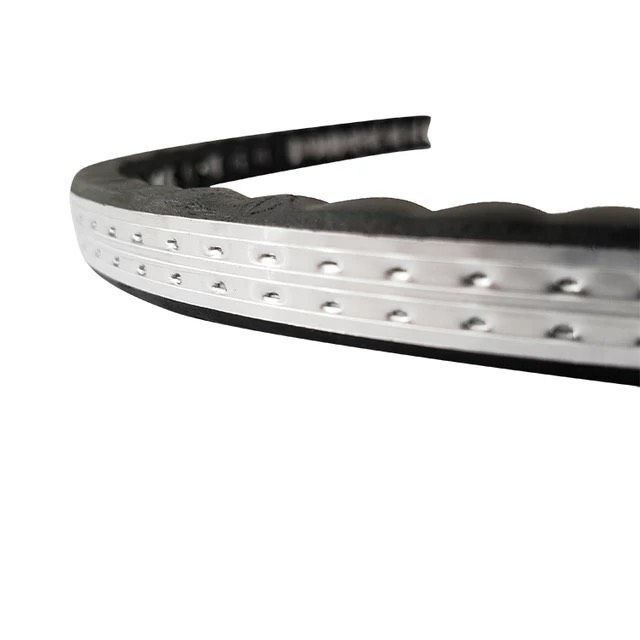

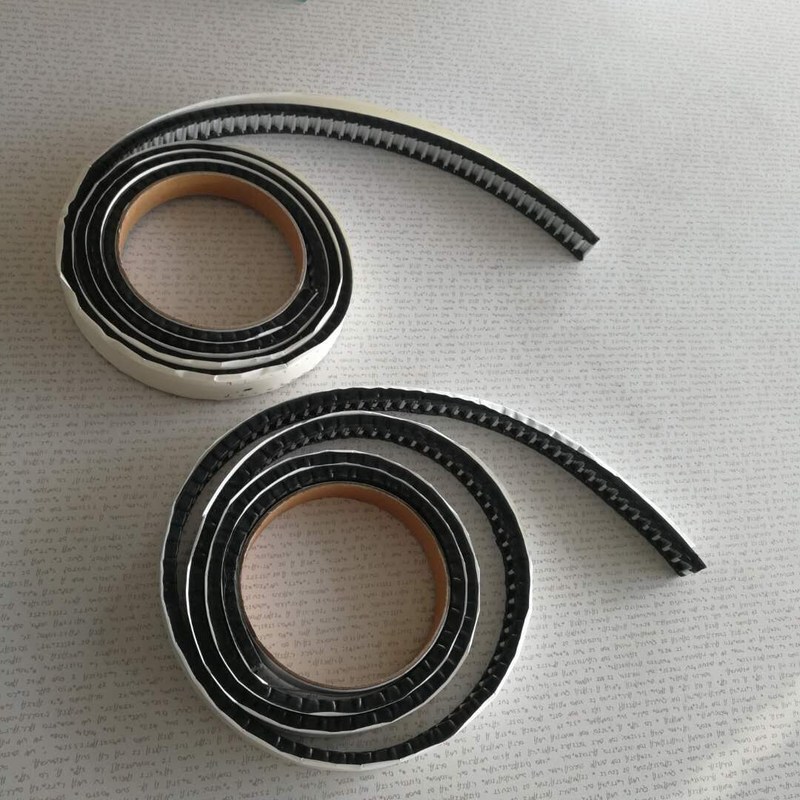

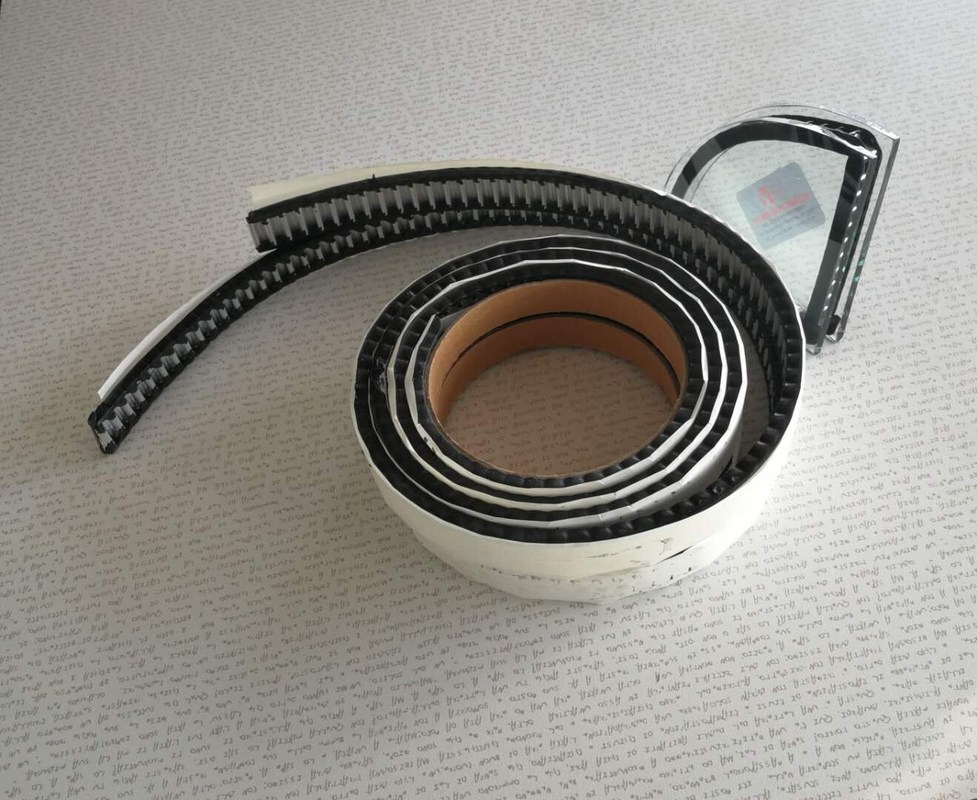

Butyl rubber spacer as warm edge thchnolgy with aluminum for insulation glass



KATION-BS01 is a new product ,it Summarize the advantages and disadvantages of traditional products to optimize and improved products according to market demands.the surface is made of 3003 alloy aluminum strip, Internal use of polymer PVC material,3A molecular sieves, butyl silicone sealant.

Warm Edge Insulating Glass Production Line Butyl Rubber Spacer With Aluminum 0



Warm Edge Insulating Glass Production Line Butyl Rubber Spacer With Aluminum 1

Warm Edge Insulating Glass Production Line Butyl Rubber Spacer With Aluminum 2

Advantage:

  • Better sealing:Using german imported butyl rubber ,the sealing will be good.
  • Warm Edge Insulating Glass Production Line Butyl Rubber Spacer With Aluminum 3  Better water vapor barrier: Extra long water vapor barrier, it prevent the water vapor to coming in.

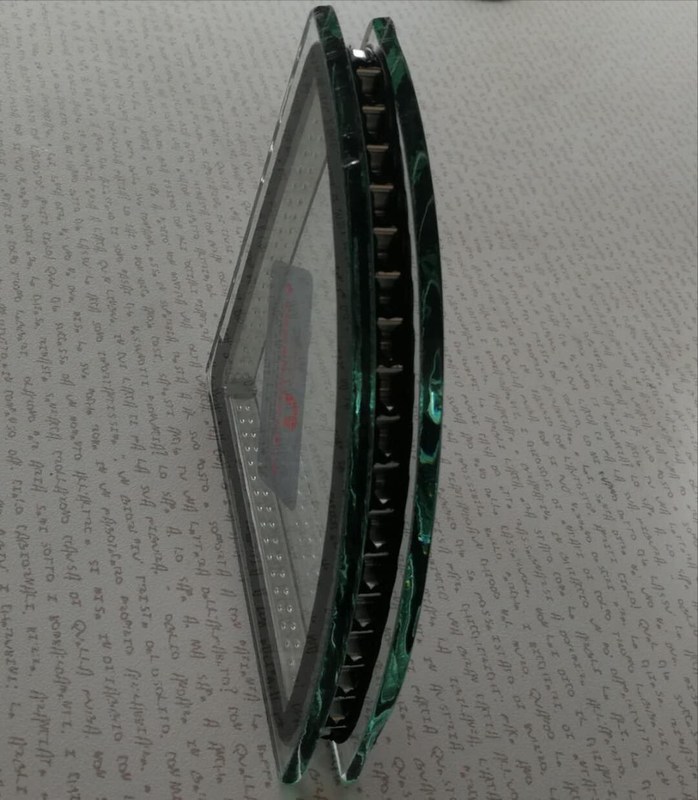

  • Warm Edge Insulating Glass Production Line Butyl Rubber Spacer With Aluminum 4  Better production efficiency , can process various shapes of anisotropic insulating glass.
  • Good air tightness : Polymer binder prevent water vapor to permeating. Good anti–high temperature perfermance.
  • Good resistance to low temperature. Good anti–aging performance.
  • Warm Edge Insulating Glass Production Line Butyl Rubber Spacer With Aluminum 5
  • Warm Edge Insulating Glass Production Line Butyl Rubber Spacer With Aluminum 6
  • Warm Edge Insulating Glass Production Line Butyl Rubber Spacer With Aluminum 7

    Warm Edge Insulating Glass Production Line Butyl Rubber Spacer With Aluminum 8
  •

    Jinan Lijiang Automation Equipment Co., Ltd. is located in the beautiful spring

    city------Jinan. It is an enterprise which integrated glass processing equipment research and development, sales and service into a whole world . As it is close to Beijing-Shanghai high-speed rail, the transportation is very convenient.

  •

    Warm Edge Insulating Glass Production Line Butyl Rubber Spacer With Aluminum 9



    The company is committed to building high-end insulating glass machinery and equipment by learning from famous experts, establishing the research and development centers, cooperating with domestic and foreign well-known enterprises, importing advanced technology and so on. Now, our friendly partners include North Glass, Xin Fuxing, Yaohua, Dalian Huaying, Beijing Guanhua, Shanghai Hao Jing, Sichuan Li Hehua and other well-known enterprises. Since the establishment of the company, our products have been exported to Europe, America, South America, the Middle East, Southeast Asia, India, nearly 30 countries and regions. At the same time, our company worked with the well-known domestic research institutes, such as the North China Industrial Group, Shandong University and others, to constantly improve the level of technical research. So far, we have independently produced the vertical automatic IG production line with filling gas on line, the vertical IG sealing robot, the automatic spacer bending machine, the automatic desiccant filling machine and the new fully automatic butyl extruder machine, its technology and quality have reached the highest leading level in China.

  • Warm Edge Insulating Glass Production Line Butyl Rubber Spacer With Aluminum 10



Warm Edge Insulating Glass Production Line Butyl Rubber Spacer With Aluminum 11

Warm Edge Insulating Glass Production Line Butyl Rubber Spacer With Aluminum 12

Sealant-spreading Machine LJST02A



Main feature

• Imported motor system to improve equipment efficiency

• Imported sealant gun,stainless steel mixer

• High pressure protect device

• Anti-back flow control structure

• Mixed rate detector can control the rate of two kinds of glue

Warm Edge Insulating Glass Production Line Butyl Rubber Spacer With Aluminum 13

Technical data



Working air pressure 0.3-0.6MPa
Sealant spreading pressure 15-20MPa
Sealant volume 4L/min
Diameter of A/B sealant 570mm/280mm
Sealant spreading air pressure ratio 50:1
Mixed rate 6:1-14:1
Air supply Flow 0.8m3/min
Air pressure ≥0.8MPa
Overall dimension 1100*950*1630mm
