|Production Name:||Automatic Butyl Extruder Machine||Gue Weight:||200L|
|Warranty:||1 Year||Coatng Speed:||47m/min|
|Max Spacer Size:||2000mm*2000mm||Power:||5.7kw|
double glazing production,
insulating glass line

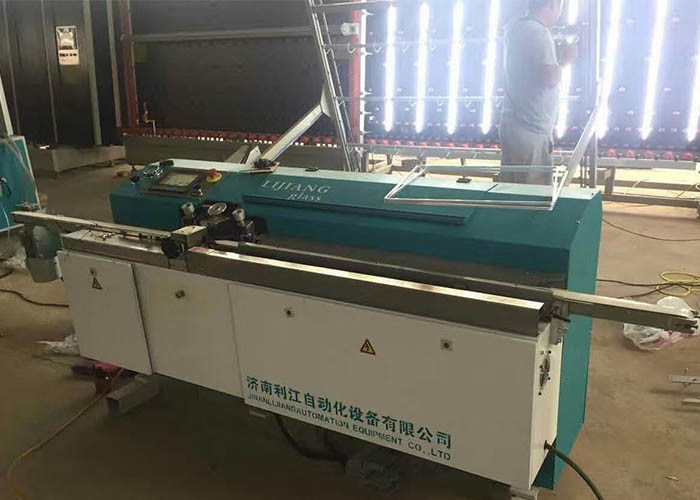

The automatic butyl extruder machine uses butyl glue to coat on the spacer frame, it is the first sealing way for making insulating glass. LJTB01 is the new one which has the fast work speed and big glue barrel for coating. Normal butyl extruder machine is with 7kg glue, big barrel glue will increase the work effective and short the time to change glue materials.
|Spacer width||6A - 27A|
|Glue barrel||7kg ; 200L is optional|
|Total power||380V 50Hz 3P|
|Glue thickness||3.0 -3.5mm|
|Glue weight||Can reach 4g/ m|
1. The Butyl coating machine mainly coating Insulating glass sealant? What is the main role in insulating glass?
The butyl glue is mainly used for bonding aluminum frame and glass, it the first sealing way.
2. Is it convenient to change the glue? Is it from the top or on the side?
Put glue on it, easy to change.
3. Does our equipment have automatic exhaust function? How can we guarantee the continuous glue?
It can exhaust automatically (now it is ready to replace manual exhaust), remove air, filter impurities, and keep the glue application speed stable
4. Is the crossbeam of our equipment easy to adjust?
5. Can we adjust our glue nozzles up and down?
Yes, Adjustable upper and lower
6. How fast can we apply glue? What is the widest aluminum strip that can be coated?
47m / min, 27mm maximum width
7. What brand is our booster pump? Which country's brand is it? What is the brand of pressure reducing valve? Which country's brand? Is it imported with original packaging?
Mcsvitt, Germany; Harvey valve, Germany; imported with original packaging
8. Is our tank made of cast iron or aluminum? Which is good?
Cast aluminum tank, fast heat dissipation
9. Is the conveyor belt we use viscose or non viscose? What are the advantages?
Non adhesive belt, fast transmission speed, keep clean
10. What is our production speed? How much g / M can glue be applied?
5-47/min ; 4g/m
11. Is the width of rubber head adjusted automatically or manually?
12. What are the main advantages of 200L big barrel?
Reduce rubber change time and improve production efficiency
13. Can we do it? Is the shutter OK?
14. Have our accessories been laser marked? What are the benefits?
Laser marking, easy to identify and replace
15. What brand of PLC and frequency converter are used?
