Product Details:
|
| Name: | Insulating Glass Production Line | Min Glass Size: | 350*450mm |
|---|---|---|---|
| Dgu Thickness: | 80mm | Flat Glass Thickness: | 3-15mm |
| Glass Washing Speed: | 6-15m/min | Glass Conveyor Speed: | 45m/min |
| Double Glass: | Available | Triple Glass: | Available |
| Step Glass: | Available | Washing Brushes: | 3 Pairs |
| Highlight: | double glazing production,insulating glass line |
||
Argon Glass filling machine with min glass szie 280*450mm Insulating glass production line
1, Insulating glass production line with argon gas filling machine Introduction
Washing and drying part

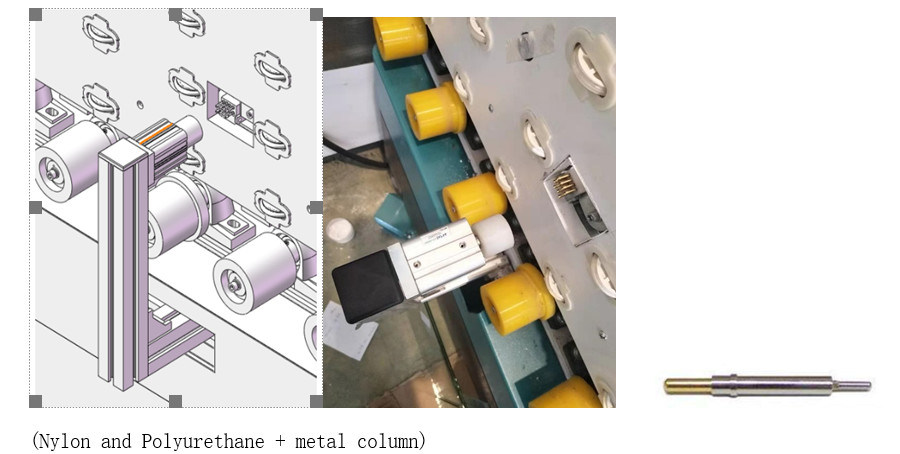

*Glass loading machine use coating inspection -metal film conductiver to avoide wheel marks or scratch low-e Coating

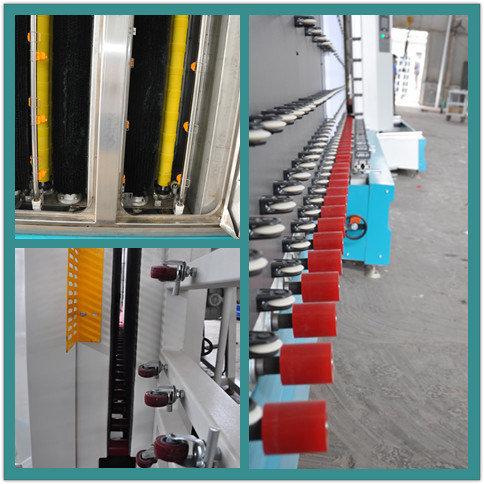

*Glass washing machine have pairs soft brushes can wash low-e glass and normal glass the diameter is less than 0.1mm.
*Washing and drying Glass machine have Air knife is float design ,
*Washing and drying Glass machine always keep the right and suitable distance 3mm between the glass surface and air knife
*The front and back side squeeze wheel of Washing and drying Glass machine are all actively moved and convey.
No mater the glass size is big /small or thickness different(8mm) ,
it all guarantee the glass pass through smoothly.(Same like LISEC)
* Insulating glass pressing machine of Thickness measurement: the cylinder drives the electronic ruler to measure the glass thickness and aluminum frame width, to provide parameters for inflation and servo pressing
*Insulating glass pressing machine of Synchronous belt:synchronous belt beam will move according to the glass thickness and aluminum frame width to ensure that the inflation hole has been between the first and second glass aluminum frame to inflate the gap (value come from DC push rod and electronic ruler)
* Input the argon gas concentration into touch screen according to customer required
* Display Function : touch screen will display whole argon gas filling processing , you will know very clear how much already argon gas filed inside
We are the first and the only one company who can show the argon percentage on the touch screen on line,it’s very useful for customer, When it reach the data customer set ,It will alarm and stop automatically
C ,Pressing part Adjustable Pressing Parts
*There have stress after welding in the Pressing frame ,So out-of -shape problems is inescapable after using some time(machine can not press DGU properly, evenly and tightly )
that is not good for IGU quality, any glass project can not accept these products
For this uneven inescapable issue, here are our solution :
a. we all do the aging treatment , it’s the stress-remove by vibration failure device.
b. The important is We design the 74 points on the backbord, if there have any out-of shape problems we can adjust easily at any time. ( same like Bystronic structure )
Main Parameter
| Components | Brand | Remark |
| Servo motor | Germany Simens | For stepped glass |

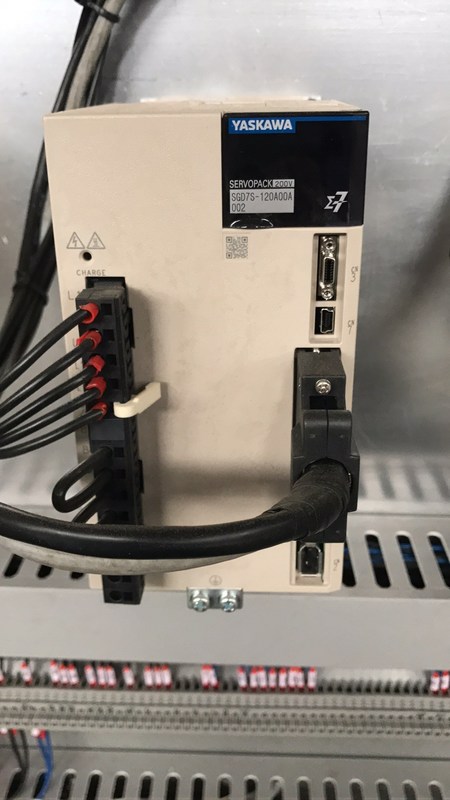

| Servo driver | Germany Simens | For stepped glass |
| Servo motor | Germany Simens | For transfer |
| Servo motor | Germany Simens | For press |

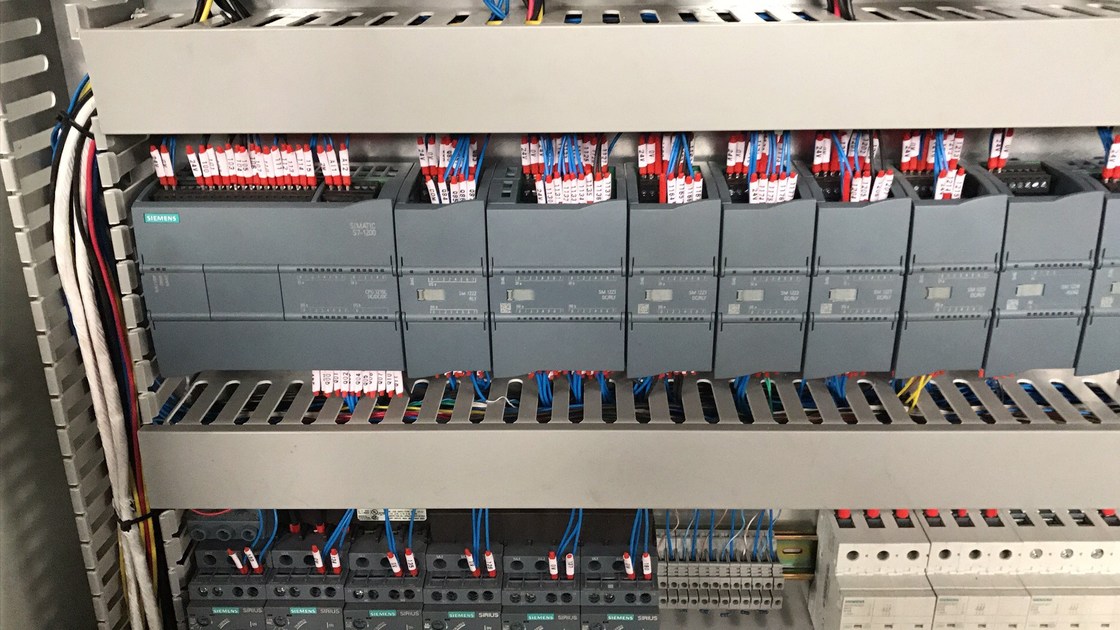

| PLC | Germany Simens | |

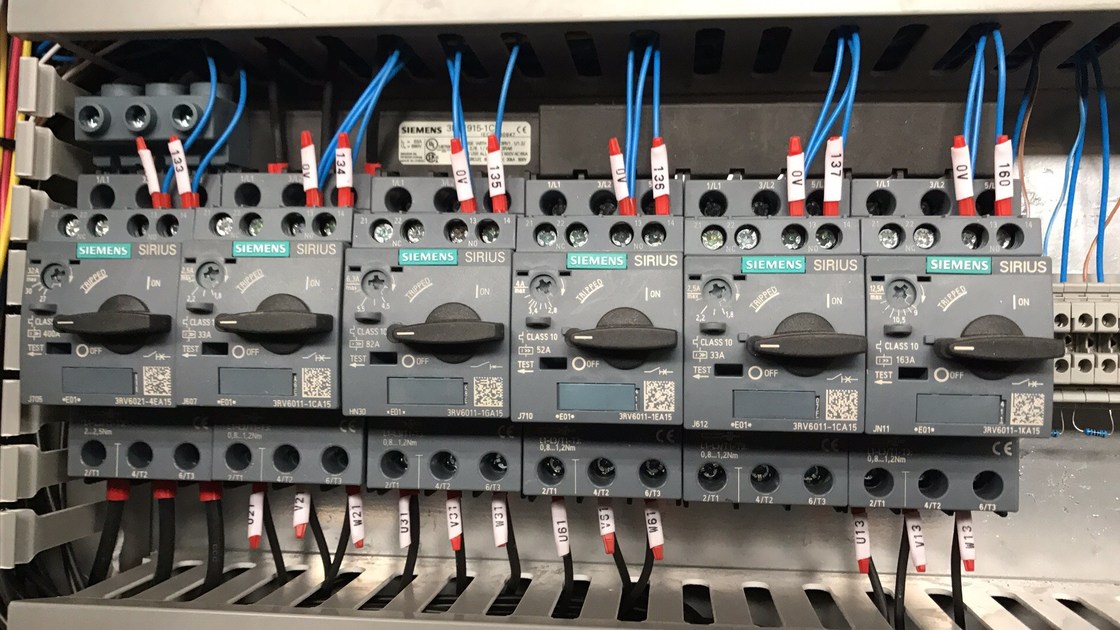

| Low voltage component | Germany Simens | |
| Frequency converter | Germany Simens | |
| Switching power supply | Taiwan MW | |
| Optoelectronic switch | Korea Autonics | |
| Pneumatic component | Taiwan Airtac | |
| Pneumatic component | Taiwan Airtac | |
| Touch screen | Taiwan Wenview | |
| Travel switch | Taiwan (TEND) | |
| Relay | Japan Omron | |
| Button and indicator light | French Schneider |
Main Products
Vertical Insulated Glass Produce Line for double glass production line
Auto Sealing Robot for double glass production line
Sealant Spreading Machine for double glass production line
Low-E Glass Washing &Drying Machine for double glass production line
Smart Edge Deleting Machine for double glass production line
Automatic Spacer Bending Machine for double glass production line
Automatic Desiccant Filling Machine for double glass production line
Butyl Extruder Machine for double glass production line
Glass Edge grinding Machine for double glass production line
Spacer Cutting Machine for double glass production line
Sealing gun Freezer for double glass production
Rotated Sealant Spreading Table double glass sealing
Argon Gas Filling Machine double glass
