Product Details:
|
| Name: | Sealing Robot For Insulating Glass | Max Glass Size: | 2500*4000mm |
|---|---|---|---|
| Advanced Function: | Can Coating More Than 8 Kinds Of Shaped Glass | Feature: | Shaped Glass |
| Highlight: | silicone extruder machine,double glazing equipment |
||

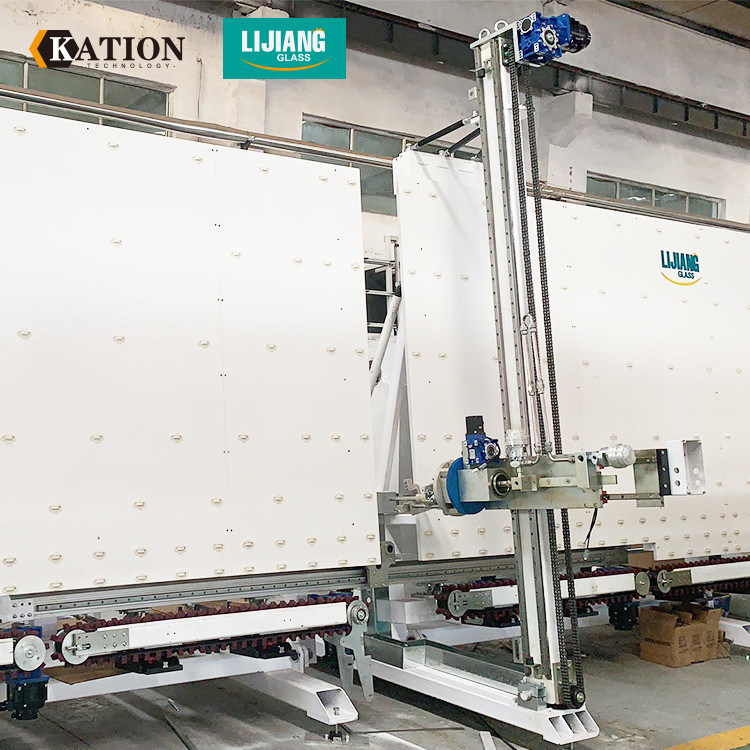

Full Automatic and high-efficienc Sealing robot for insulating glass processing LJTJ2540
This type of machine is a full automatic and high-efficienc sealing robot for insulating glass processing. Automatically measure glass size, glue depth and glue speed with linear adjustment. Single-function parts are equipped with manual functions, easy adjustment.Can coating more than 8 kinds of shaped glass,include Semicircle. Trapezoidal. Parallelogram. Circular. Polygon, etc.
Technical data
| Max. glass size | 2500*4000mm (Optional) |
| Min. glass size | 300*300mm |
| Glass thickness | 12-50mm |
| Working speed | 5-40m/min |
| Air pressure | ≥0.6MPa |
| Squeeze pressure | 32MPa |
| Voltage power | 380V 12kw |
| Overall dimension | 11000*2000 |
Main feature
Electrical parameters
| NAME | BRAND | NAME | BRAND |
| PLC | GERMAN SIEMENS | Triplet | Taiwan AIRTAC |
| Low voltage electrical apparatus | GERMAN SIEMENS | Cylinder | Taiwan AIRTAC |
| Servo motor | JAPAN FUJI | Solenoid valve | Taiwan AIRTAC |
| Servo driver | JAPAN FUJI | Switch power | Taiwan TEND |
| Relay | JAPAN OMRON | TOUCH SCREEN | Taiwan WEINVIEW |
| Sensor | KOREA AUTONICS | GUIDE | Taiwan TBI |
About us
Jinan Lijiang Automation Equipment Co., Ltd. is located in the beautiful spring
city------Jinan. It is an enterprise which integrated glass processing equipment research and development, sales and service into a whole. As it is close to Beijing-Shanghai high-speed rail, the transportation is very convenient.
The company is committed to building high-end insulating glass machinery and equipment by learning from famous experts, establishing the research and development centers, cooperating with domestic and foreign well-known enterprises, importing advanced technology and so on. Our company worked with the well-known domestic research institutes, such as the North China Industrial Group, Shandong University and others, to constantly improve the level of technical research. So far, we have independently produced the vertical automatic IG production line with filling gas on line, the vertical IG sealing robot, the automatic spacer bending machine, the automatic desiccant filling machine and the new fully automatic butyl extruder machine, its technology and quality have reached the highest leading level in China.
Our Service
With the rapid development of insulating glass industry, LIJIANG is looking forward to working with you for win-win situation and jointly creating a new world.
