Product Details:
|
| Standard Size: | 1500*1500mm | Max Size: | Can Be Required |
|---|---|---|---|
| Function: | Working With Sealant Pump Of Insulating Glass | Type: | Rotated Table |
| Highlight: | double glazing production,insulating glass line |
||

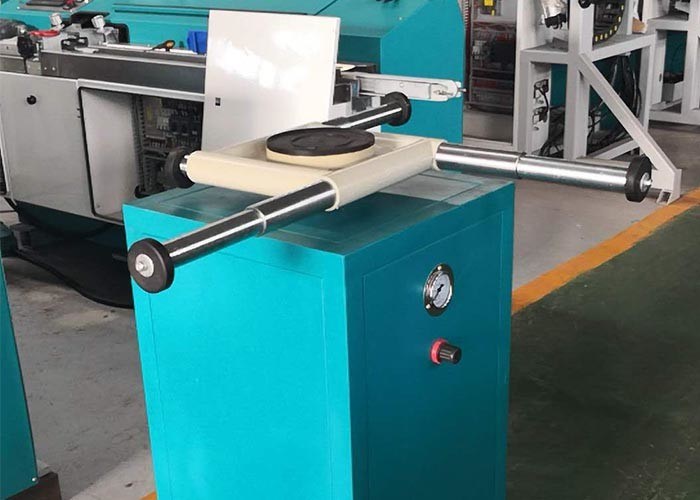

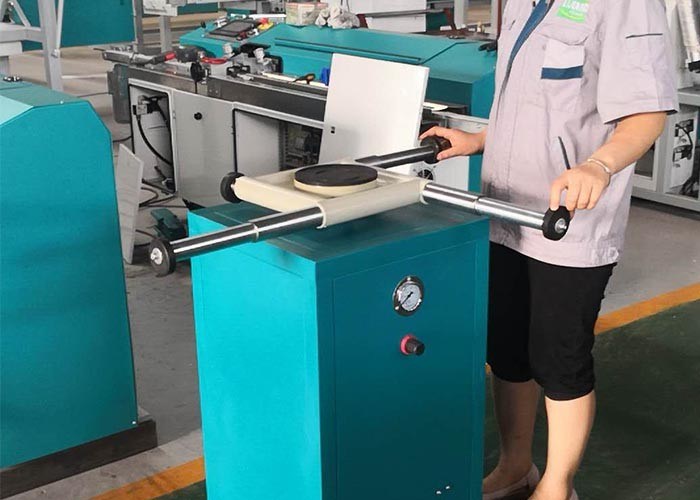

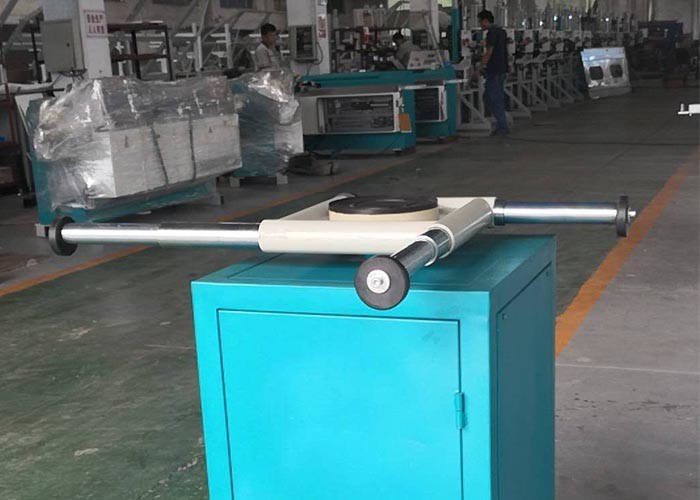

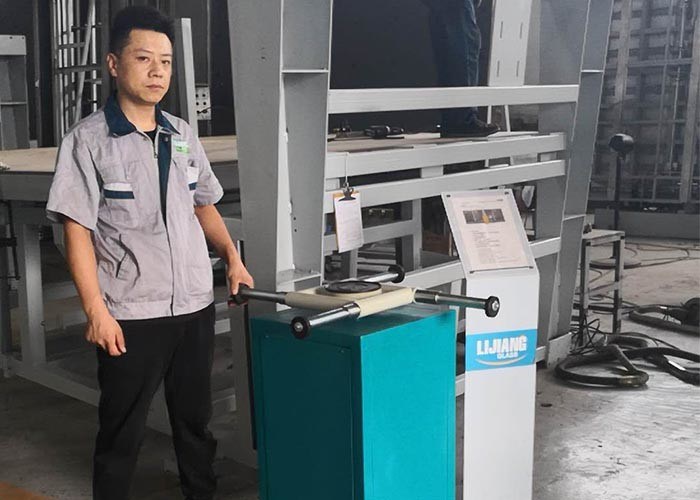

Easy operate for Sealant pump of Double glazing processing —Rotated Table with breight colour
LJZT03 Gold partners for sealant spreading—Rotated table
LJZT03 Gold partners for sealant spreading—Rotated table, good work with Sealant extuder and Hotmelt extuder, easy operating used for fixing and rotating glass when manual coating the outside of insulating glass processing. The glass processing size can be request as customer required.
Main Feature
|
1.Easy operating, simple and flexible
2.It is used for fixing and rotating glass when manual coating the outside of IG glass
3.The middle sucker is suitable for small pieces of glass,however,extra support frame is for large pieces of glass
|
Main technical parameter
| Power supply | 380V 50Hz |
| Total power | 0.37kw |
| Operating dimension | 1500*1500mm |
| Dimension | 600*550*985mm |
Good Partner for Rotated Table--Sealant-spreading Machine LJST02A
Main feature
• Imported motor system to improve equipment efficiency
• Imported sealant gun,stainless steel mixer
• High pressure protect device
• Anti-back flow control structure
• Mixed rate detector can control the rate of two kinds of glue
Technical data
| Working air pressure | 0.3-0.6MPa |
| Sealant spreading pressure | 15-20MPa |
| Sealant volume | 4L/min |
| Diameter of A/B sealant | 570mm/280mm |
| Sealant spreading air pressure ratio | 50:1 |
| Mixed rate | 6:1-14:1 |
| Air supply | Flow 0.8m3/min |
| Air pressure | ≥0.8MPa |
| Overall dimension | 1100*950*1630mm |
Company Information
Our certifications
Jinan Lijiang Automation Equipment Co., Ltd. is located in the beautiful spring
city------Jinan. It is an enterprise which integrated glass processing equipment research and development, sales and service into a whole. As it is close to Beijing-Shanghai high-speed rail, the transportation is very convenient.
The company is committed to building high-end insulating glass machinery and equipment by learning from famous experts, establishing the research and development centers, cooperating with domestic and foreign well-known enterprises, importing advanced technology and so on. Now, our friendly partners include North Glass, Xin Fuxing, Yaohua, Dalian Huaying, Beijing Guanhua, Shanghai Hao Jing, Sichuan Li Hehua and other well-known enterprises. Since the establishment of the company, our products have been exported to Europe, America, South America, the Middle East, Southeast Asia, India, nearly 30 countries and regions. At the same time, our company worked with the well-known domestic research institutes, such as the North China Industrial Group, Shandong University and others, to constantly improve the level of technical research. So far, we have independently produced the vertical automatic IG production line with filling gas on line, the vertical IG sealing robot, the automatic spacer bending machine, the automatic desiccant filling machine and the new fully automatic butyl extruder machine, its technology and quality have reached the highest leading level in China.
With the rapid development of insulating glass industry, LIJIANG is looking forward to working with you for win-win situation and jointly creating a new world.
