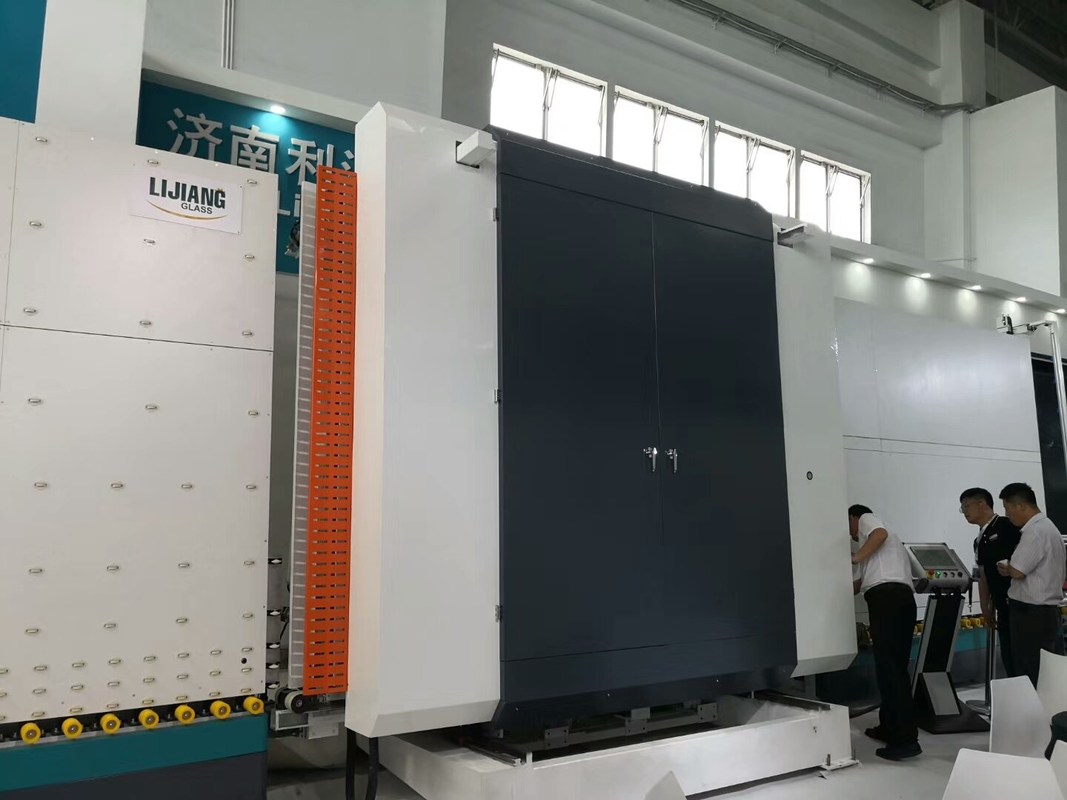

2500 Height Double Glazing Insulating Glass Production Line With Filling Argon Gas Online

2500 Height Double Glazing Insulating Glass Production Line With Filling Argon Gas Online
2500 Height Double Glazing Insulating Glass Production Line With Filling Argon Gas Online 2500 Height Double Glazing Insulating Glass Production Line With Filling Argon Gas Online 2500 Height Double Glazing Insulating Glass Production Line With Filling Argon Gas Online

Large Image :  2500 Height Double Glazing Insulating Glass Production Line With Filling Argon Gas Online

Product Details:
Place of Origin: JINAN, CHINA
Brand Name: LIJIANG GLASS
Certification: CE
Model Number: LJBZ2535
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Container
Delivery Time: 60days
Supply Ability: 20 sets per month

2500 Height Double Glazing Insulating Glass Production Line With Filling Argon Gas Online

Description
Production Nam: Insulating Glass Processing Line Power: 40kw
Max Glass Size: 2500*3500mm Max Filling Gas Size: 2500*3200mm
Glass Thickness: 3 - 18mm Insulating Glass Thickness: 60mm
Motor: Simens Gas Content: >90%
High Light:

double glazing production

,

insulating glass line

2500 Height Double glazing glass production Line with Filling Argon Gas Online

The automatic insulating glass processing line is used to making double glass, triple glass and step glass for windows, doors, buildings, ships, high-speed train windows and so on. Insulating glass processing line contains the glass washing machine, the pressing and filling gas machine. Now, we have normal IG line without filling gas, IG line with filling gas, IG line with air floating and super fast speed IG line with filling gas.

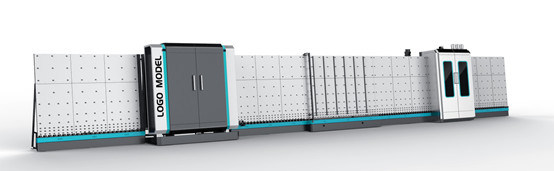

2500 Height Double Glazing Insulating Glass Production Line With Filling Argon Gas Online 0



Main Features:

• The line has 7 sections: 01 transfer section; 02 washing machine; 03 discharge section; 04 inspection and installation section; 05 transfer section; 06 pressing and filling section; 07 discharge section

• PLC control system, touch screen interface

• Using Siemens servo motors

• Applicable to produce double glass, triple glass

• Step glass with optional edges and shaped glass

• Can fill argon gas automatically

Air-floating technology to transfer glass. To prevent the glass from being contaminated by wheels and leaving traces to improve the IG production’s high quality (Optional)

2500 Height Double Glazing Insulating Glass Production Line With Filling Argon Gas Online 1



Technical data

Max. glass size 2500mm*3500mm
Max glass size for filling gas 2500mm*3200mm
Min. glass size 280mm*450mm
Glass thickness 3-15mm
Insulating glass thickness 60mm
Glass washing speed 2-10m/min
Glass conveyor speed 45m/min
Washing brushes 3 pairs of soft brushes with 0.1mm hair
Water supply Water consumption:0.5t/h conductivity:40μs/cm
Air supply Flow: 0.8m/min
Air pressure ≥0.8MPa
Total power 3P 380V 50HZ 40KW
Dimension 23500*3500*3700mm
Weight 6500kg

Electrical parameters



NAME ORIGIN BRAND
Servo motor Germany SIEMENS
PLC Germany SIEMENS
Low voltage electrical appliance Germany SIEMENS
Frequency converter Germany SIEMENS
Transfer motor Taiwan LINHAI
Brush motor Taiwan LINHAI
Water pump China LINGXIAO
Guide Taiwan HIWIN
Pneumatic Components Taiwan AIRTAC
Electric gauge China MIRAN
Photoelectric switch Germany SICK
Micro Switch Taiwan TEND
Button and indicator light France SCHNEIDER
touch screen Taiwan WEINVIEW
Intermediate relay Japan OMRON
IG line with gas filling online
