Product Details:
|
| NAME: | Horizontal Glass Washing Machine | Maximum Glass Width: | 2600mm |
|---|---|---|---|
| Min Glass Specification: | 350*350mm | Glass Thickness: | 3--25mm |
| Cleaning Speed Range: | Glass Thickness Within 3-19mm Vmax=1--12m/min | Other Name: | Glass Washing Machine |
| High Light: | horizontal glass washer,automatic glass cleaning machine |
||

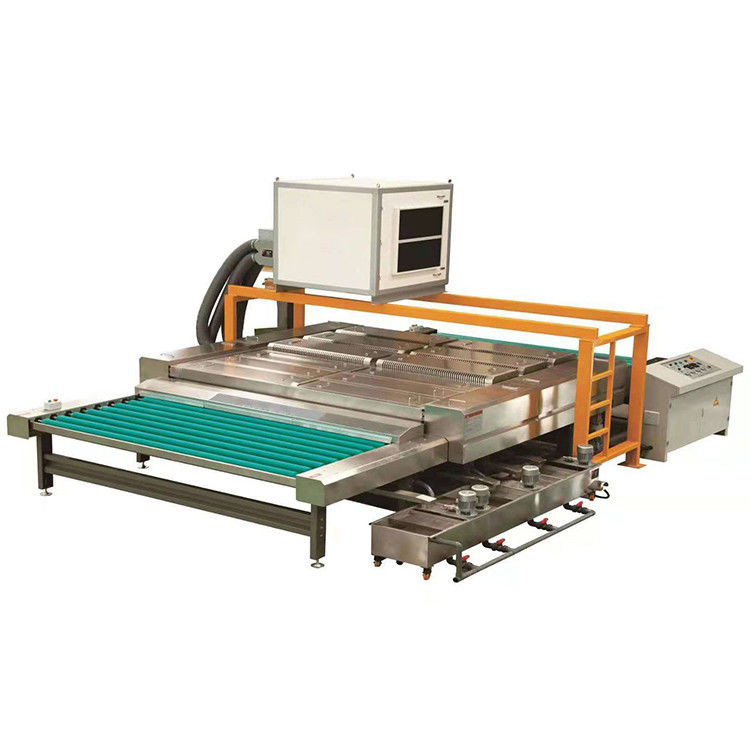

Glass washing machine CP-2500A is used for cleaning and drying the ordinary plate glass and low-e glass.
The glass washing machine consists of a feeding section, a cleaning drying section and a discharging section.
Main features:
1.Aluminum alloy structure, can be used permanently；
2..The washing part in contact with water is made of stainless steel；
3.The rubber roller is made of vulcanized rubber with stainless steel shaft；
4.Two pairs of special stainless steel aluminum alloy air knife configuration, strong wind, good air drying effect, with heating system(with temperature control device, optional opening and closing)；
5..Mechanical button control, cleaning machine digital display, easy to operate, easy to operate, easy to maintain；
6.Optional with PLC control, touch screen display.It is convenient for workers to operate and maintain, and can be connected to all manufacturers of edge grinding machines without gap.
Technical parameters:
1.Maximum glass width: 2500mm (effective maximum: 2650mm)
2.Minimum glass specification: 400mm×400mm (limited to single row on left and right sides)
3.Glass thickness: 3mm-25mm (digital display)
4.Speed range: glass thickness within 3-25mm Vmax=1-12m/min
5.Main drive, brush speed regulation method: frequency control
6. Table height :900±25mm
7.Total power: 42KW(water-bearing wind heating: 15KW)
8.Water source: self-circulation, tap water (according to civil water standards) and deionized water water supplement (deionized water equipment shall be provided by the buyer)
9.Power source: 380V 50Hz
10.Dimensions (length × width × height) : approximately 6260×4800×3100
11.Weight: about 3940kg
Origin of motor and main accessories:
| Main drive motor | Zhejiang province |
| Brush motor | Zhejiang province |
| High pressure air blower | Guangdong province |
| The water pump | Shanqing |
| brush | Anhui province |
| Rubber roller | Guangdong province |
| Frequency converter | VEICHI/Rexroth |
| Electric parts | Schneider |
