Vertical Insulating Glass Production Line Can On Line Gas Filling

Vertical Insulating Glass Production Line Can On Line Gas Filling

glass processing machines

double glazing production

Place of Origin:

China

Brand Name:

LIJIANG

Certification:

CE

Model Number:

LJBZ2535

Contact Us
Request A Quote
Vertical Insulating Glass Production Line Can On Line Gas Filling Vertical Insulating Glass Production Line Can On Line Gas Filling Vertical Insulating Glass Production Line Can On Line Gas Filling
Product Details
Name:
Automatic Insulating Glass Production Line
Max.glass Size:
2500*3500mm
Min.glass Size:
450*280mm
Glass Washing Speed:
2-10m/min
Glass Thickness:
3-12mm
Insulating Glass Thickness:
40mm
Highlight:

glass processing machines

,

double glazing production

Payment & Shipping Terms
Minimum Order Quantity
Negotiation
Price
Negotiable
Packaging Details
container
RELATED PRODUCTS
Good price Automatic glass 3mm Vertical Insulating Glass Machine IG Production Line online

Automatic glass 3mm Vertical Insulating Glass Machine IG Production Line

Get Best Price
Good price Double Glazing Insulating Glass Production Line Jumbo Size 3300*7000mm online

Double Glazing Insulating Glass Production Line Jumbo Size 3300*7000mm

Get Best Price
Good price Automatic Insulating Glass Production Line Jumbo Size 3300mm*7000mm online Video

Automatic Insulating Glass Production Line Jumbo Size 3300mm*7000mm

Get Best Price
Good price Double Glazing Thick 60mm Insulating Glass Production Line For Washing And Pressing online

Double Glazing Thick 60mm Insulating Glass Production Line For Washing And Pressing

Get Best Price
CONTACT US
Contact Now
Product Description

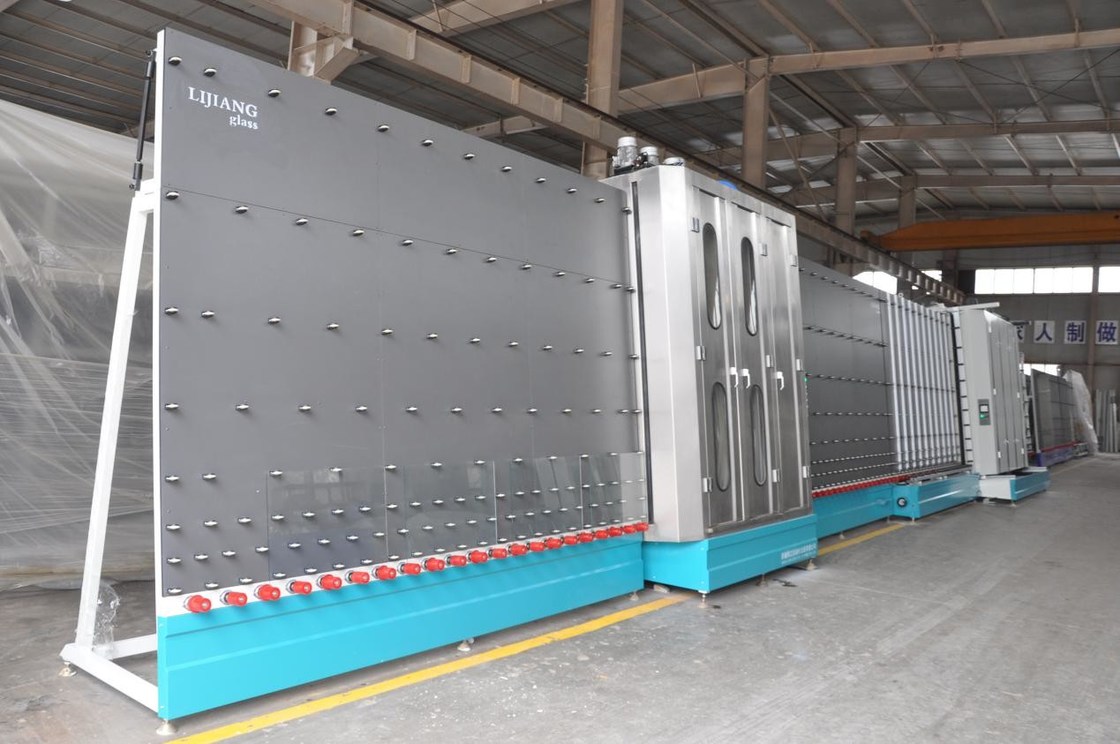

Vertical insulating glass production line can on line gas filling

Vertical insulating glass production line have 7 sections,including Washing section,Checking glass and installing frame section,Transfer sections,Pressing & Gas filling machine.
Our hollow glass production line can do double glass,triple glass and stepped glass.



Main Features:

•Our glass production machinery Adopt SIEMENS control system, keep stable performance
•Our insulating glass equipment adopt PLC control system, touch screen interface

•Applicable to produce stepped IG, triple IG and shaped IG
•Two pieces of IGU can be made and filled with argon gas in one time (Optional)
•Washing section Using 6 pieces of soft brushes
•Wash online and offline low-e glass, automatically recognizes Low-e film
•The air knife can automatically adjust the width of the air knife according to the thickness
•The pressing plate with adjustable screws to guarantee long-lasting high-precision tablet
•Automatically filling argon gas inside the pressing plate with precise gas concentration
•Two pieces of IGU could be pressed and filled gas in once time, each IGU could fill argon gas over 90%

Technical data

Max.glass size 2500mm*3500mm
Min.glass size 280mm*400mm
Glass thickness 3-15mm / 19mm
Insulating glass thickness 50mm / 60mm
Glass washing speed 2-10m/min
Glass conveyor speed 45m/min
Washing brushes 3 pairs
Water supply Water consumption:0.5t/h conductivity:40μs/cm
Air supply Flow: 0.8m/min
Air pressure ≥0.8MPa
Total power 3P 380V 50HZ 40KW
Dimension 23500*3500*3700mm
Weight 6500kg
