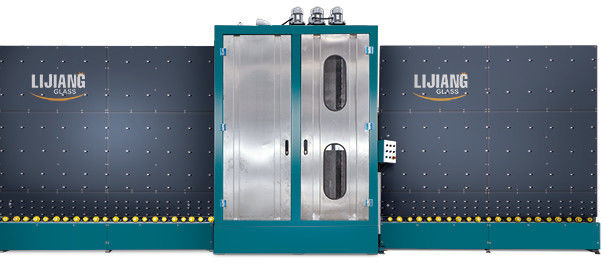

High-speed Vertical Glass Washing Machine

LJBQX  glass washing machine is vertical washing machine, used for washing many kinds of glasses, and low-e glass. The washing machine has three sections, 01 transfer section, 02 washing and drying section and 03 checking and transfer section. The washing machine has low-e film dection function, can detect the low-e film by coating detection mechanism. The brushes are all used soft brushes. The air knife can be adjusted according to different glass' sizes. Washing clearly with high speed. The washing speed can be displayed on the touch screen directly.

Details introduce of the glass washing machine

• 01 transfer section

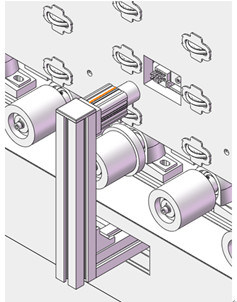

Coating detection mechanism, automatic detection of offline Low-e film

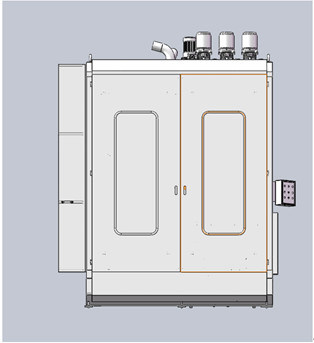

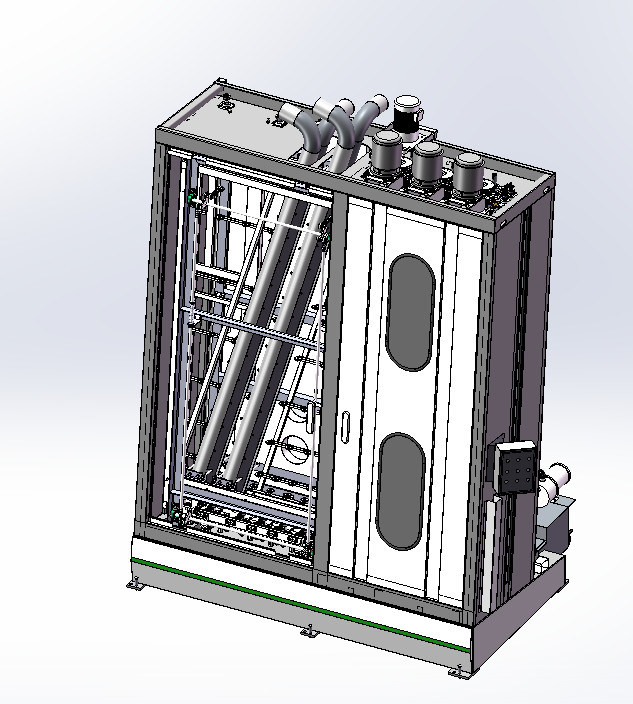

• 02 washing and drying machine

Main feature:

• Using 6 pieces of soft brushes with 0.1mm soft hair, can wash low-e glass

• Pre-washing (Optional)

• New air knife uses aluminum profile (Duckbill Air Knife), the size of the air outlet is adjusted by the aluminum profile duck beak. This can reduce the number of adjusting screws, ensure that each screw is not loose, and avoid the resonance of the air knife.

• The air knife can automatically adjust the width of the air knife according to the thickness

• The operation box with washing speed display, can accurately display washing speed (8-10m)

• Water tank automatic temperature control, water replenishing system

• European silencer system

• Stainless steel material

• 03 checking and discharge section

• Using LED lights to check if the glass is washed clean or not, if the glass is not clean, it will alarm.

Main specification:

Max glass size : 1800*2000mm / 2000*2500mm/  2500*3500mm (can be optional)

Min glass size : 400*280mm

Glass thickness: 3 - 18mm

Glass with low-e film : Yes

Numbers of brushes : 6 pieces

Brushes' quality: soft brushes ( can wash low-e glass) with 0.1mm diameter

Brushes' motors: 3 motors

Air knife: adjustable

Washing speed : winter 6 - 7m,  sumer 8 - 10m

Front and rear Pushing wheels: with power

Washing speed : can be displayed on the screen

Warranty: one year

Machine brand: LIJIANG GLASS

Country of original: Made in Jinan, China
