Place of Origin:
JINAN, CHINA
Brand Name:
LIJIANG GLASS
Certification:
CE
Model Number:
LJQX2535

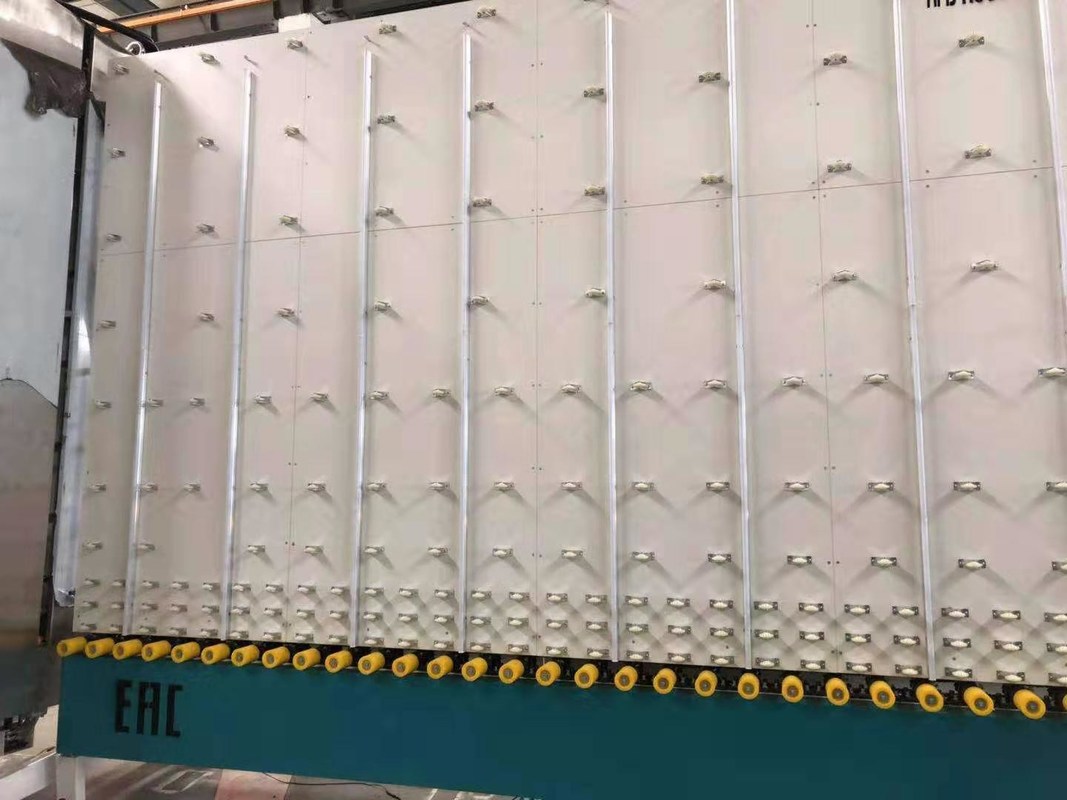

High Performance Vertical Washing Insulating Glass Production Line Siemens Control
Automatic vertical washing machine can complete the following functions: pre-cleaning, cleaning and drying of white glass and low-e glass.
Automatic vertical washing machine is in the production of slot aluminum insulating glass. The washing machine has the advantages of small occupation area, high efficiency, reliable performance and convenient maintenance.
Automatic vertical washing machine adopts Siemens control system, which can freely adjust the cleaning speed of cleaning machine.
Automatic vertical washing machine is divided into manual and automatic control mode, each section can be controlled separately, easy to use and concise.
Automatic vertical washing machine includes feed section, pre-cleaning section, cleaning and drying section, discharge section.
Main feature:
•Automatic vertical washing machine Using 6 pieces of soft brushes
•Automatic vertical washing machine can Wash online and offline low-e glass, automatically recognizes Low-e film
•Washing part adopts the design of upper and lower layered structure
•Automatic vertical washing machine Adopt variable frequency fan, energy efficient, good cleaning effect
•The air knife can automatically adjust the width of the air knife according to the thickness
•Automatic vertical washing machine Using intelligent intermittent energy-saving working methods
•Hierarchical type washing system
•Water tank automatic temperature control, water replenishing system
•Automatic vertical washing machine adopt European silencer system
•304 stainless steel materials
| Power supply | Voltage(V) | 380 |
| Frequency (Hz) | 50 | |
| Main power | kW | ≈35 |
| Washing speed | m/min | 1~7 |
| Max high speed | m/min | 10 |
| Min glass size | mm | 450×280 |
| Max glass size | mm | 2500×4000 |
| Glass thickness | mm | 3~15 |
| Roller height | mm | 500±20 |
| Total weight | kg | ≈3500 |
