Product Details:
|
| Name: | Automatic Insulating Glass Production Line | Max.glass Size: | 2500*3500mm |
|---|---|---|---|
| Min.glass Size: | 450*280mm | Glass Washing Speed: | 2-10m/min |
| Glass Thickness: | 3-12mm | Insulating Glass Thickness: | 40mm |
| High Light: | glass processing machines,double glazing production |
||

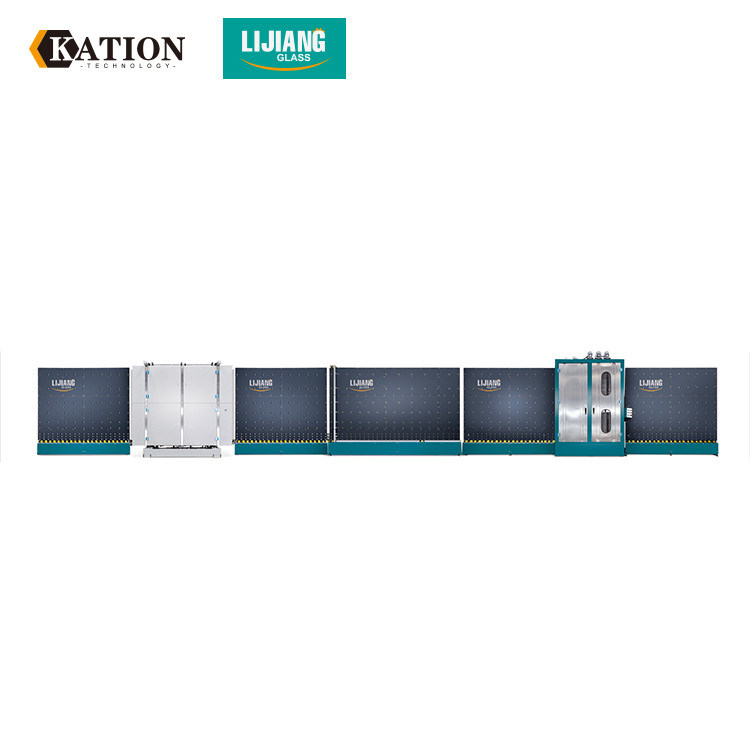

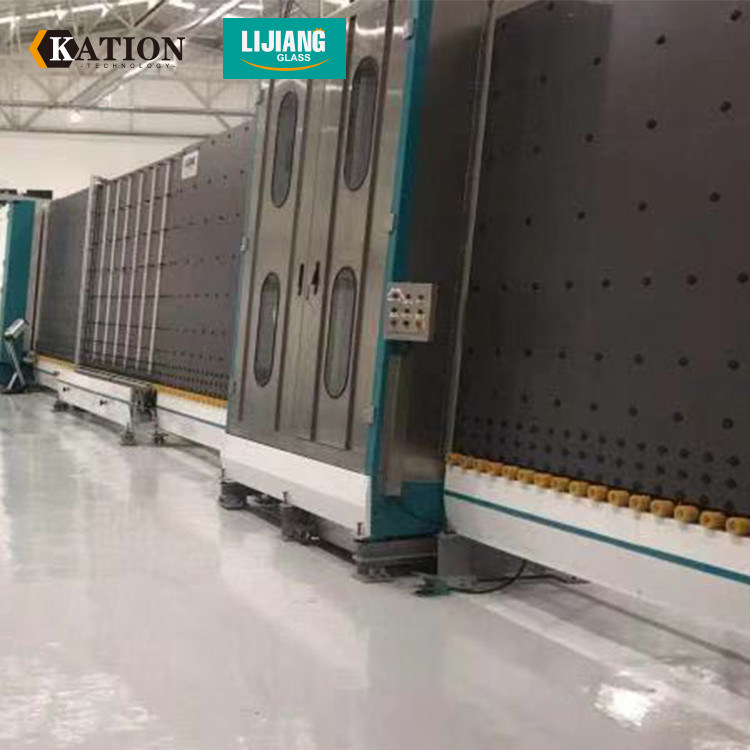

Automatic Vertical Insulating Glass Production Line can Online gas filling
Automatic Vertical Insulating Glass Production Line stable performance.
Automatic Vertical Insulating Glass Production Line can Online gas filling (option).
Automatic Vertical Insulating Glass Production Line adopt PLC control system, touch screen interface.
Automatic Vertical Insulating Glass Production Line can Coating&LOW-E glass automatic identification.
Automatic Vertical Insulating Glass Production Line Can wash on-line&off-line glass.
Automatic Vertical Insulating Glass Production Line have Hierarchical type washing system.
Water tank in the Automatic Vertical Insulating Glass Production Line have automatic temperature control, water replenishing system
Automatic Vertical Insulating Glass Production Line adopt European silencer system&stainless steel drying system
Triple IG , shaped IG automatic assembly and positioning system
Universal wheel in tilting table has balance weight device
Servo control stepped IG system, modularity function, superposition function
Automatic control of second press for over length glass
Automatic Vertical Insulating Glass Production Linealso can make stepped glass with a servo motor.
Glass washing machine can automatically recognize the glass thickness, the air knife moves forward and backward to adjust the distance so that the relative distance between the air knife and the glass is constant.Glass washing machine have 6 pieces of soft brushes, 0.1mm
| Max.glass size | 2500mm*3500mm |
| Min.glass size | 280mm*400mm |
| Glass thickness | 3-15mm / 19mm |
| Insulating glass thickness | 50mm / 60mm |
| Glass washing speed | 2-10m/min |
| Glass conveyor speed | 45m/min |
| Washing brushes | 3 pairs |
| Water supply | Water consumption:0.5t/h conductivity:40μs/cm |
| Air supply | Flow: 0.8m/min |
| Air pressure | ≥0.8MPa |
| Total power | 3P 380V 50HZ 40KW |
| Dimension | 23500*3500*3700mm |
| Weight | 6500kg |
