Product Details:
|
| Name: | Vertical Automatic Insulating Glass Production Line , | Washing Brushes: | 3 Pairs |
|---|---|---|---|
| Glass Washing Speed: | 2-10m/min | Glass Conveyor Speed: | 48m/min |
| Max.glass Size: | 2500*3500mm/2000*2500mm | Min.glass Size: | 280*450mm |
| Glass Thickness: | 3-15mm | Insulating Glass Thickness: | 60mm |
| High Light: | glass processing machines,double glazing production |
||

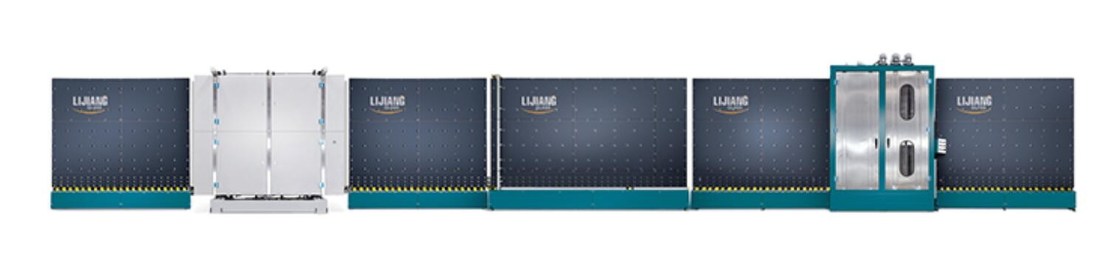

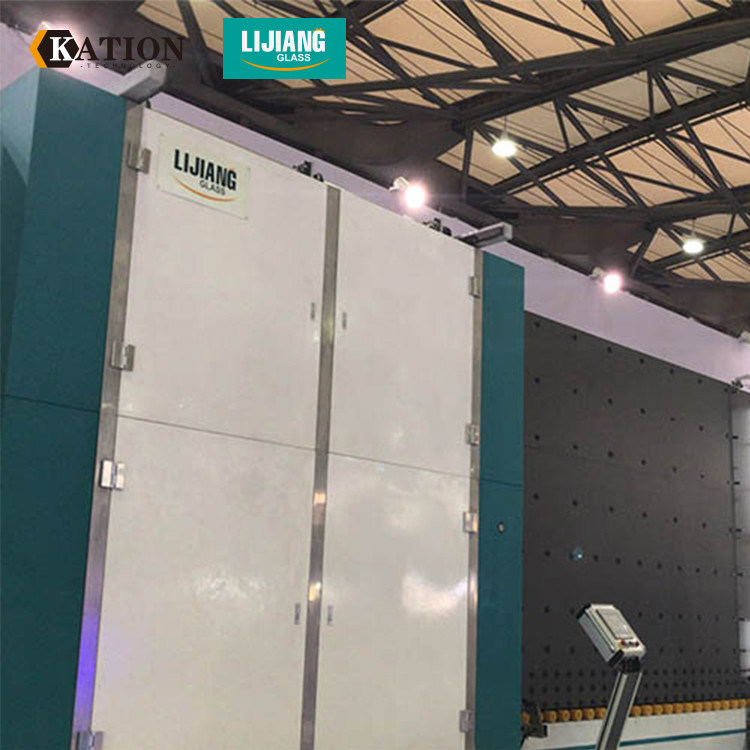

Insulating Glass Production Line With Gas Filling
Insulating Glass Production Line combine with Brstronic technology to update.
In the pressing part, first step uses CNC device to Eliminate hard power to keep the board straight all the time, second step, we have a special structure design to prevent the board not straight after using a long time.
Insulating Glass Production Line Adopt SIEMENS and OMRON control system, keep stable performance.
Insulating Glass Production Line Adopt PLC control system, touch screen interface.
Insulating Glass Production Line Applicable to produce stepped IG, triple IG and shaped IG.
Insulating Glass Production Line Adopt Automatically adjust the depth of glue with digital display.
Insulating Glass Production Line Using servo to control system, modular function, superposition function.
Insulating Glass Production Line can Automatically filling argon gas within the plate with high, synchronous compressing glasses, to maximize the gas retention rate.No need to drill holes in spacer frame.Standard filling gas is Argon.Insulating Glass Production Line can Automatically set filling data and display data on the screen.
Technical data
| Max.glass size | 2500mm*3500mm |
| Min.glass size | 280mm*400mm |
| Glass thickness | 3-15mm / 19mm |
| Insulating glass thickness | 50mm / 60mm |
| Glass washing speed | 2-10m/min |
| Glass conveyor speed | 45m/min |
| Washing brushes | 3 pairs |
| Water supply | Water consumption:0.5t/h conductivity:40μs/cm |
| Air supply | Flow: 0.8m/min |
| Air pressure | ≥0.8MPa |
| Total power | 3P 380V 50HZ 40KW |
| Dimension | 23500*3500*3700mm |
| Weight | 6500kg |
