Product Details:
|
| Name: | Insulating Glass Production Line | Max.glass Size: | 2500*3500/2200*3000mm |
|---|---|---|---|
| Min.glass Size: | 300*450mm | Glass Thickness: | 3-12mm |
| Insulating Glass Thickness: | 40mm | Glass Washing Speed: | 2-10m/min |
| Glass Conveyor Speed: | 45m/min | Washing Brushes: | 3 Pairs |
| High Light: | glass processing machines,double glazing production |
||

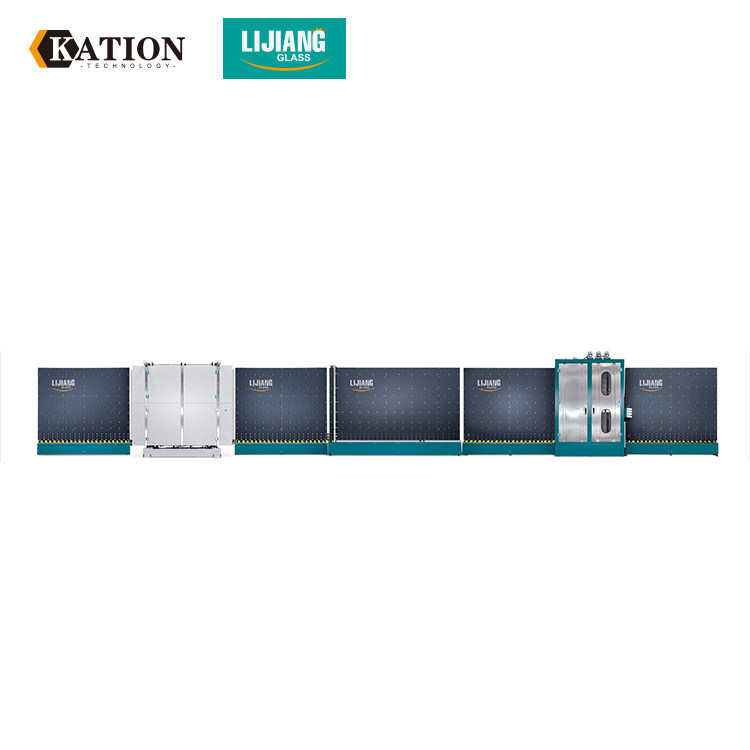

Vertical Flat Press Insulating Glass Production Line Hierarchical Type Washing System
Insulating Glass Production Line Main feature
· Can wash on-line&off-line glass
· Hierarchical type washing system
· Water tank automatic temperature control, water replenishing system
· European silencer system&stainless steel drying system
· Intelligent batch-type energy saving systemn Embedded subdued light inspection method
· Aluminum frame assembly separate part structure
· Digital display&sealant depth adjustment device
· Adjustable matrix separating pressing system
· Automatic outside rotary glass positioning system
· Aviation plug cable connect way
· Triple IG , shaped IG automatic assembly and positioning system
· Universal wheel in tilting table has balance weight device
· Servo control stepped IG system, modularity function, superposition function
· Automatic control of second press for over length glass
· Static automatic release function
Insulating Glass Production Line APPLICATION
As the most important process of insulating glass production, we are especially professional in glass cleaning, transmitting pressing and gas filling(optional).The production line can do double glass,triple glass and stepped glass.
Insulating Glass Production Line Parameters:
| Max.glass size: | 2500*3500/2200*3000mm |
| Min.glass size | 300*450mm |
| Glass thickness | 3-12mm |
| Insulating glass thickness | 40mm |
| Glass washing speed | 2-10m/min |
| Glass conveyor speed: | 45m/min |
| Washing brushes | 3 pairs |
| Water supply: | Water consumption:0.5t/h conductivity:≤50μs/cm |
| Air supply | Flow: 0.8m/min |
| Air pressure | ≥0.8MPa |
| Total power | 3P380V 50HZ 25KW |
| Dimension | 18500*3500*3600/18350*2600*3250mm |

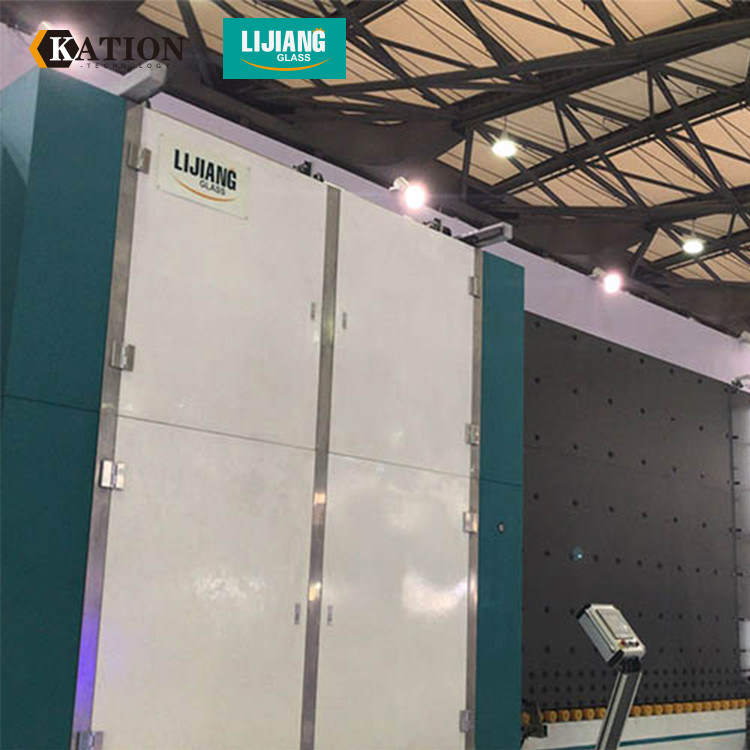

Insulating Glass Production Line Details
