Product Details:
|
| Name: | Glass Processing Machines | Max.glass Size: | 2000*2500mm(Extend IG Unit) |
|---|---|---|---|
| Min.glass Size: | 300*500mm | Glass Thickness: | 3-12mm |
| Insulating Glass Thickness: | 40mm | Glass Washing Speed: | 2-10m/min |
| Glass Conveyor Speed: | 48m/min | Feature: | Stable Performance |
| Highlight: | glass processing machines,double glazing production |
||

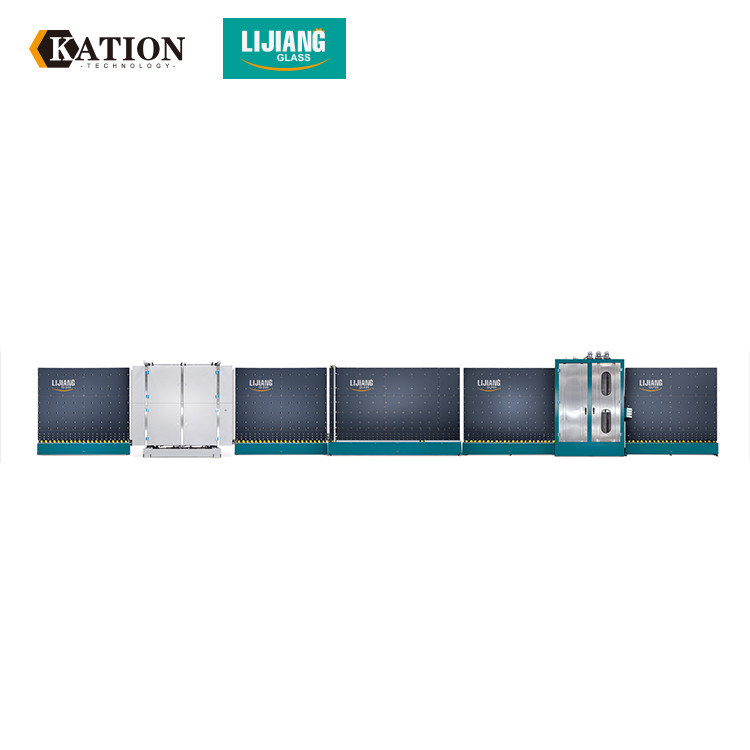

Powerful Glass Processing Machines , Industrial Glass Manufacturing Equipment
Glass Processing Machines Main feature
· Stable performance
· Online gas filling (option)
· PLC control system, touch screen interface
· Coating&LOW-E glass automatic identification
· Can wash on-line&off-line glass
· Hierarchical type washing system
· Water tank automatic temperature control, water replenishing system
· European silencer system&stainless steel drying system
· Intelligent batch-type energy saving systemn Embedded subdued light inspection method
· Aluminum frame assembly separate part structure
· Digital display&sealant depth adjustment device
· Adjustable matrix separating pressing system
· Automatic outside rotary glass positioning system
· Aviation plug cable connect way
· Triple IG , shaped IG automatic assembly and positioning system
· Universal wheel in tilting table has balance weight device
· Servo control stepped IG system, modularity function, superposition function
· Automatic control of second press for over length glass
· Static automatic release function
Glass Processing Machines APPLICATION
As the most important process of insulating glass production, we are especially professional in glass cleaning, transmitting pressing and gas filling(optional).The production line can do double glass,triple glass and stepped glass.
Glass Processing Machines Main Parameters:
| Washing speed | 2~10m/min |
| Max.working speed | 45m/min |
| Washing glass thickness | 3~15mm |
| Max.insulating glass thickness | 60mm |
| Conveyor height | 500mm |
| Min.glass size | 450×280 |
| Max.glass size | 2500×3500 |
Glass Processing Machines Main components:
| Circuit breaker | schneider |
| Contactor | schneider |
| PLC | Siemens or omron |
| Touch screen | Taiwan Wenview |
| Power switch | Taiwan |
| Frequency | Dongyuan or Siemens |
| Relay | Japan Omron |
| Optoelectronic switch | Korea Autonics |
| Servo motor | Siemens |
| Pneumatic component | Taiwan Airtac |
Glass Processing Machines Details
