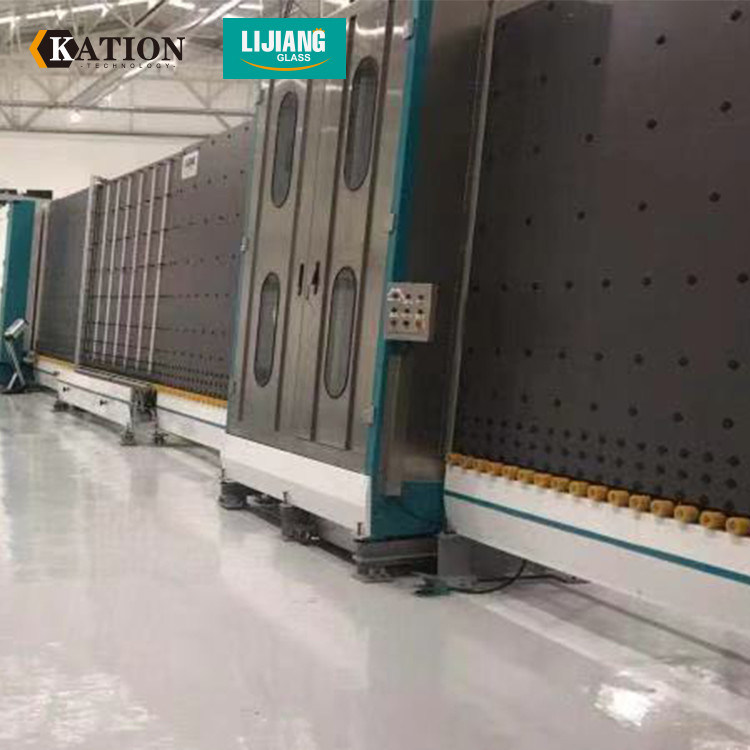

Product Details:
|
Name: | Automatic Glass Production Line | Max.glass Size: | 2500*3500mm/2200*3000mm/2000*2500mm |
---|---|---|---|
Min.glass Size: | 280*450mm | Glass Conveyor Speed: | 48m/min |
Washing Brushes: | 3 Pairs | Glass Thickness: | 3-15mm |
Insulating Glass Thickness: | 60mm | Glass Washing Speed: | 2-10m/min |
Highlight: | glass processing machines,double glazing production |
Application:
Lijiang glass IG line combine with Brstronic technology to update. In the pressing part, first step uses CNC device to Eliminate hard power to keep the board straight all the time, second step, we have a special structure design to prevent the board not straight after using a long time.
Technical data
Max.glass size | 2500*3500mm/2200*3000mm/2000*2500mm |
Min.glass size | 280*450mm |
Glass thickness | 3-15mm |
Insulating glass thickness | 60mm |
Glass washing speed | 2-10m/min |
Glass conveyor speed | 48m/min |
Washing brushes | 3 pairs |
Water supply | Water consumption:0.5t/h conductivity:≤50μs/cm |
Air supply | Flow: 0.8m/min |
Air pressure | ≥0.8MPa |
Total power | 3P 380V 50HZ 40KW/27KW/24KW |
Dimension | 23500*3500*3700mm/18350*2600*3250mm/16400*2500*3100mm |
Weight | 6500kg/6000kg/5200kg |
l Adopt SIEMENS and OMRON control system, keep stable performance
l PLC control system, touch screen interface
l Automatically adjust the depth of glue with digital display
l Using servo to control system, modular function, superposition function
l Applicable to produce stepped IG, triple IG and shaped IG

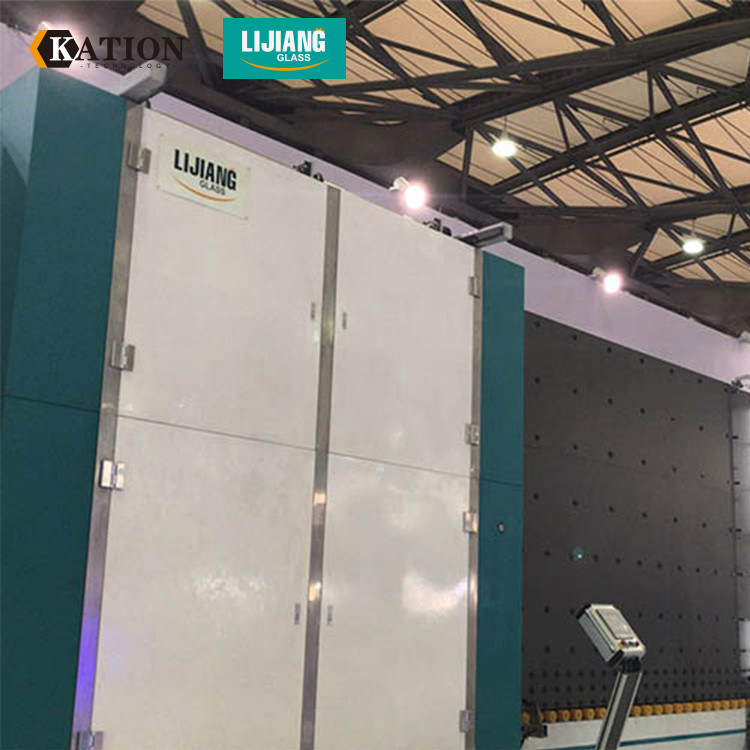

Glass washing part:
Main feature:
l Automatic detect low-e & high performance glass
l Wash online and offline low-e glass, automatically recognizes Low-e film
l Washing part adopts the design of upper and lower washing sections
l Adopt variable frequency fan, energy efficient, good cleaning effect
l The air knife can automatically adjust the width of the air knife according to the thickness
l Using intelligent intermittent energy-saving working methods
l Hierarchical type washing system
l Water tank automatic temperature control, water replenishing system
l European silencer system&stainless steel drying system
Pressing robot:
Main feature:
Ultra-long insulating glass can be compressed in the second time
The machine adopts servo torque compression
The pressure plate with adjustable flat and no deformation, can guarantee long-lasting high-precision tablet
Equipped with a precisely adjustable front platen mechanism
The system can diagnose fault information
The press plate can be opened to 65mm width for easy maintenance
Applicable to produce stepped IG, triple IG and shaped IG
Gas filling parts:
Automatically filling argon gas within the plate with high, synchronous compressing glasses, to maximize the gas retention rate
When filling shaped IG, inflatable front side of the rectangular size required 450mm (length), 280mm (high)
No need to drill holes in spacer frame
Standard filling gas is Argon
Fast reacting sensor for permanent control of gas filling process
Automatically set filling data and display data on the screen
