Product Details:
|
| Name: | Sealant Speading Machine | Sealant Volume: | 4L/min |
|---|---|---|---|
| Working Air Pressure: | ≥0.6MPa | Sealent Spreading Pressure: | 15-20MPa |
| Diameter Of A/B Sealant: | 570mm/280mm | ||
| Highlight: | glass sealing machine,silicone extruder machine |
||

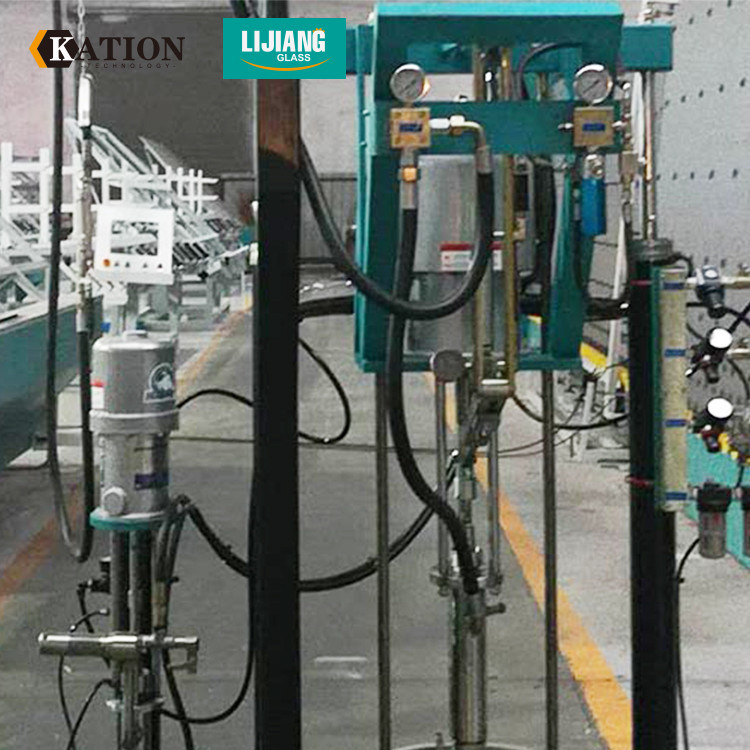

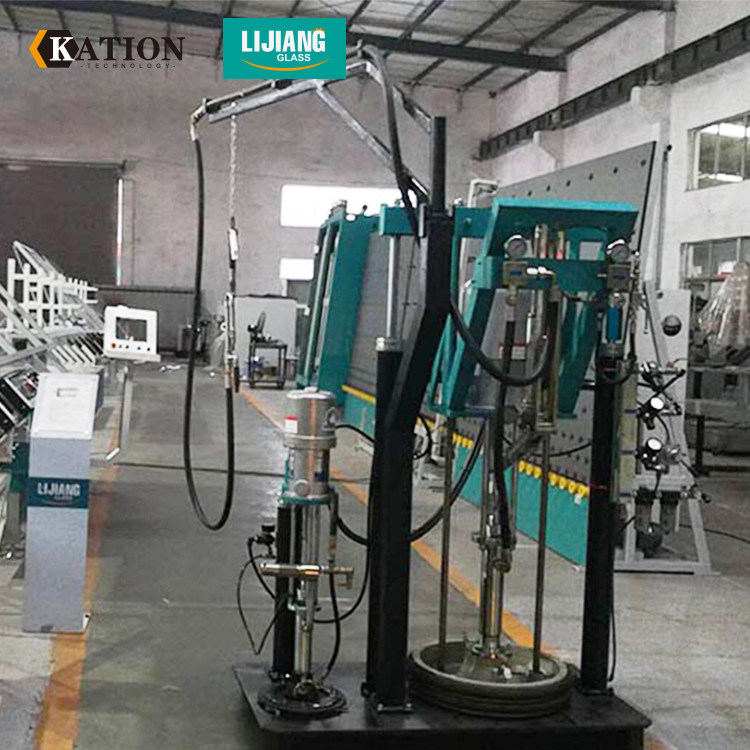

Sealant-spreading machine LJST03
APPLICATION
This equipment was designed by advanced technology from abroad and inside of China. It is special equipment used for spreading the two-component polysulphide glue and/or two-component silicone structure glue for the aluminum type insulating glass or curtain wall glass.A and B pump adopt Korea brand HASCO.So it can ensure the reliable working-effect.
Special and convenient mixed device can ensure the high quality mixing of the two-component polysulphide glue and/or two-component silicone structure glue. This equipment is featured by uniform mixture and continuous stability of extruded glue, good spreading effect and high production efficiency.
Main feature
Technical data
| Working air pressure | 0.3-0.6MPa |
| Sealant spreading pressure | 15-20MPa |
| Sealant volume | 4L/min |
| Diameter of A/B sealant | 570mm/280mm |
| Sealant spreading air pressure ratio | 50:1 |
| Mixed rate | 6:1-14:1 |
| Air supply | Flow 0.8m3/min |
| Air pressure | ≥0.8MPa |
| Overall dimension | 1100*950*1630mm |
1,Min motor
Adopted Korea HASCO to improve equipment efficiency.
2,B motor
Adopted Korea HASCO to improve equipment efficiency.
3,Sealant gun
We adopted the Sealant gun from Korea HASCO.
Stainless steel mix pipe and hybrid mandrel,easy to clean glue.
4,Proportional pump & Safety valve
Special check valve in the pump to make sure extrude glue fluently and avoid incomplete mixing.
5,Glue bucket
Gluing evenly without bubbles.
