Name: 2.5M * 3.5M Insulating Glass Production Line , Automatic Double Glazing Machinery
Brand: Jinan Lijiang Automation Equipment Co., Ltd.
SKU: LJBZ2535G
Availability: InStock

Home > Products > Insulating Glass Production Line >

2.5M * 3.5M Insulating Glass Production Line , Automatic Double Glazing Machinery

glass processing machines

double glazing production

Place of Origin:

JiNan China

Brand Name:

LiJiang Glass

Certification:

Model Number:

LJBZ2535G

Request A Quote

2.5M * 3.5M Insulating Glass Production Line , Automatic Double Glazing Machinery

Product Details

Color:

Optional

Direction:

Optional

Dimension:

18500*3500*3600Mm

Max Glass Size:

2500*3500Mm

Glass Thickness:

3-12Mm

Weight:

6500KG

Highlight:

glass processing machines

double glazing production

Payment & Shipping Terms

Minimum Order Quantity

1 set

Price

Negotiable

Packaging Details

Wooden box

Delivery Time

2-3months

Supply Ability

40 sets per year

Automatic glass 3mm Vertical Insulating Glass Machine IG Production Line

Get Best Price

Double Glazing Insulating Glass Production Line Jumbo Size 3300*7000mm

Get Best Price

Video

Automatic Insulating Glass Production Line Jumbo Size 3300mm*7000mm

Get Best Price

Double Glazing Thick 60mm Insulating Glass Production Line For Washing And Pressing

Get Best Price

Contact Now

Product Description

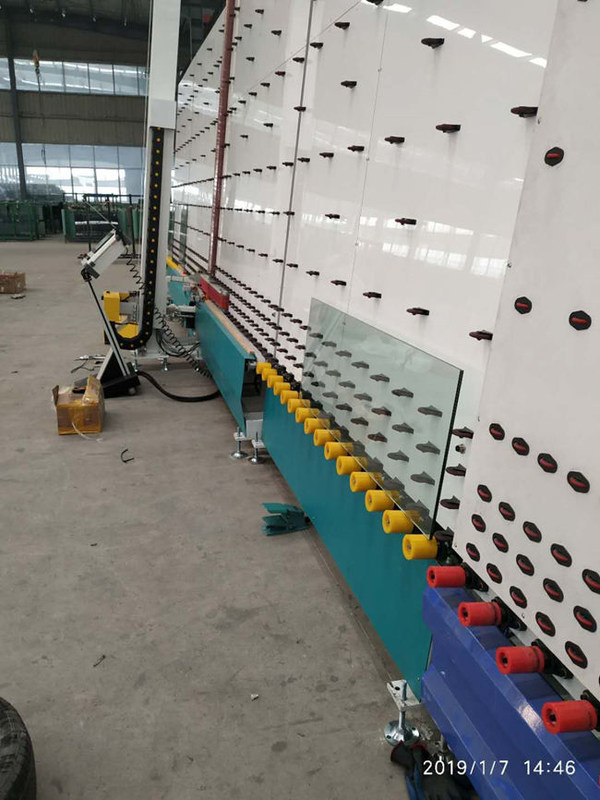

Online Gas Filling Vertical Automatic Insulating Glass Production Line

APPLICATION

Insulating glass production line consists of four sections, transfer section,
washing section, inspection section and pressing section. It uses advanced technology
to make high-quality and variety DGU automatically, such as double glass, triple glass,
shaped glass and stepped glass

Main Features:

Stable performance
Online gas filling (option)
PLC control system, touch screen interface
Coating&LOW-E glass automatic identification
Can wash on-line&off-line glass
Hierarchical type washing system
Water tank automatic temperature control, water replenishing system
European silencer system&stainless steel drying system
Intelligent batch-type energy saving system
Embedded subdued light inspection method
Aluminum frame assembly separate part structure
Digital display&sealant depth adjustment device
Adjustable matrix separating pressing system
Automatic outside rotary glass positioning system
Aviation plug cable connect way
Triple IG , shaped IG automatic assembly and positioning system
Universal wheel in tilting table has balance weight device
Servo control stepped IG system, modularity function, superposition function

2.5M * 3.5M Insulating Glass Production Line , Automatic Double Glazing Machinery 0

2.5M * 3.5M Insulating Glass Production Line , Automatic Double Glazing Machinery 1

2.5M * 3.5M Insulating Glass Production Line , Automatic Double Glazing Machinery 2

2.5M * 3.5M Insulating Glass Production Line , Automatic Double Glazing Machinery 3
