Product Details:
|
| Color: | Customer's Request | Function: | Gas Filling |
|---|---|---|---|
| Usage: | Double Glass Processing | Type: | Semi Automatic |
| Power: | 0.1KW | Scope Of Supply: | Window |
| Dimension: | 620*439*700mm | Weight: | 200KG |
| High Light: | semi automatic filling machine,argon filling systems |
||

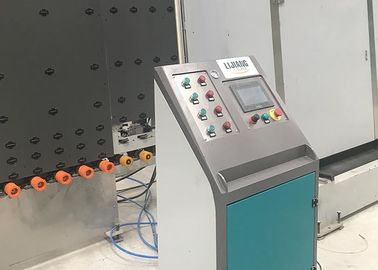

1. Auxiliary equipment for insulating glass processing, argon gas filling machine.
2. This machine is used for filling argon gas into insulating glass.
3. Automatic display the work process, to indicate the gas filling be finished or not.
4. 4 pieces of insulating glasses could be finished once.
5. Easy movement in workshop.
Main technical parameter
| Power supply | 220V 50Hz |
| Total power | 0.1kw |
| Dimension | 620*439*700mm |
1,We can input the gas filling proportion into the touch screen, during the gas filling ,the touch screen can display the whole process of gas filling visually at the same time.
2,There have pressure alarm device, when the gas filling is enough to the adjusted proportion value, the alarm device will work and the machine stop automatically.
3, Within 20s 1㎡ IGU will be finished. There have two gas pipe one is argon -in in the bottom of IGU ,another one is air -out in the top of IGU.
4, It can gas filling 4 piece IGU one time
