Product Details:
|
Color: | Customer's Request | Function: | 4 Section Gas Filling |
---|---|---|---|
Usage: | Double Glass Processing | Type: | Semi Automatic |
Power: | 0.1KW | Scope Of Supply: | Window |
Dimension: | 620*439*700MM | Weight: | 200KG |
Highlight: | argon filling systems,argon gas filling equipment |
Power supply | 220V 50Hz |
Total power | 0.1kw |
Operating dimension | 650*450*125mm |
Weight | 200kg |

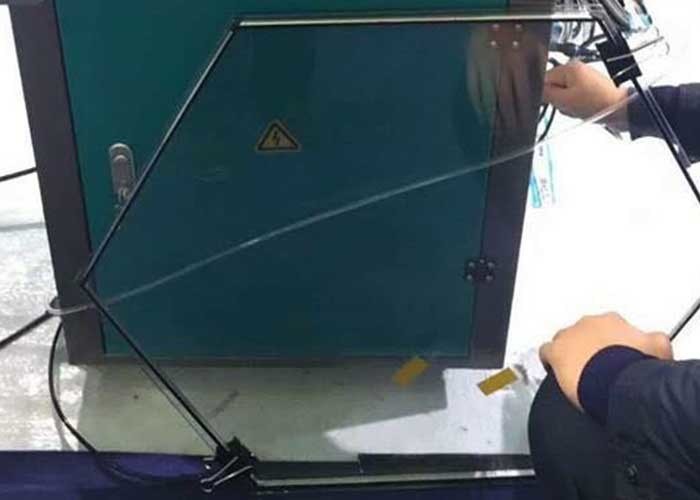

1.The machine of inflator for insulating glass is used for inflator inert gases to insulating. The inert gases can increase function of heat insulation, sound insulation and save source energy in insulation.
2.The whole equipment inflate inert gases from gas run valve, when the inert gases run into the insulating glass, there are gas pure analysis apparatus, automatically check apparatus and show lamp of check.
3.Four pieces of insulating glass can be inflated at one time.
4.This machine is with high automatic technical and high efficiency. It also have handsome appearance and easy to operate.
Why we are choosing argon gas not other inert gas inflate into insulating glass units ?
Argon is commonly used in insulated glazing as it is affordable. Krypton is considerably more expensive. It is more prevalent in triple-pane windows since it is more effective when the glass panes are close together. It is not generally used except to produce very thin double glazing units or relatively thin or extremely high performance triple glazed units. Sometimes, krypton is mixed with argon and injected into the airspace. Xenon is also one of inert gas used for insulated glass but it is rarely applicable though it would be even more effective than krypton.
In general, the more effective a fill gas is at its optimum thickness, the thinner the optimum thickness is. For example, the optimum thickness for krypton is lower than for argon, and lower for argon than for air
