Place of Origin:
JINAN, CHINA
Brand Name:
LIJIANG GLASS
Certification:
CE
Model Number:
LJQX2535

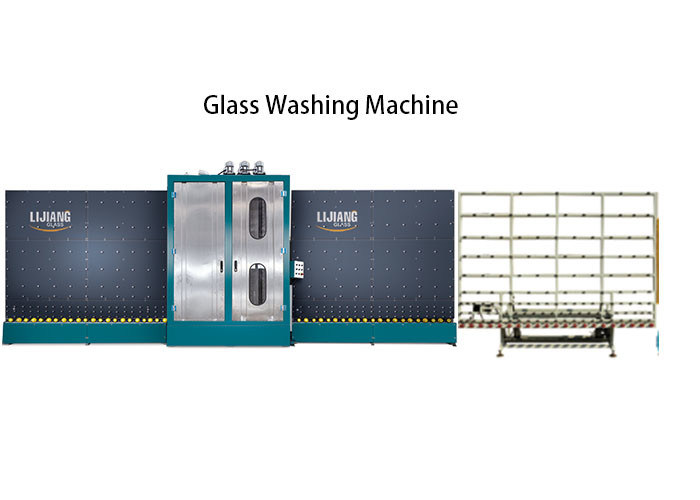

Low Noise Flat Glass Washing Machine Air Knife For Insulating Glass Production Line
Features;
1. All parts connected to water are stainless steel or waterproof material
2. Equipped with three pairs of brushes
3. Independent motor for brush to ensure the stability
4.Available for LOW-E glass,coated glass and mirrors
5. Hot/cool water for washing are optional
6. The transmission is applied with chain system
7.One pair of special air knife with warm air for drying system.
8. Equipped with Sound insulation cotton to reduce noise
| Max.glass size | 2500*3500mm/2200*3000mm/2000*2500mm |
| Min.glass size | 280*450mm |
| Glass thickness | 3-15mm |
| Insulating glass thickness | 60mm |
| Glass washing speed | 2-10m/min |
| Glass conveyor speed | 48m/min |
| Washing brushes | 3 pairs |
| Water supply | Water consumption:0.5t/h conductivity:≤50μs/cm |
| Air supply | Flow: 0.8m/min |
| Air pressure | ≥0.8MPa |
| Total power | 3P 380V 50HZ 40KW/27KW/24KW |
| Dimension | 23500*3500*3700mm/18350*2600*3250mm/16400*2500*3100mm |
| Weight | 6500kg/6000kg/5200kg |
FAQ:
1. .Question: What is the after-sale service?
Answer: LIJIANG GLASS is famous not only the good machines, but also the best after-sale service. Customers know that LIJIANG service center opens to customer in 24 hours a day, no weekend time. Once customer has a little problem, we can help them deal with it as soon as possible by call or video, also there are some professional engineers working in customers country to help them. Even our agents have their own service center in different countries.
2. Question: What is the guarantee?
Answer: Normally, each machine from LIJIANG GLASS has one- year’s guarantee time. During the time, any part gets wrong, LIJIANG provide the service and spares for free ( except wearing parts). Before delivering goods, LIJIANG always provides one set of spares for each machine to customer without any payment.
