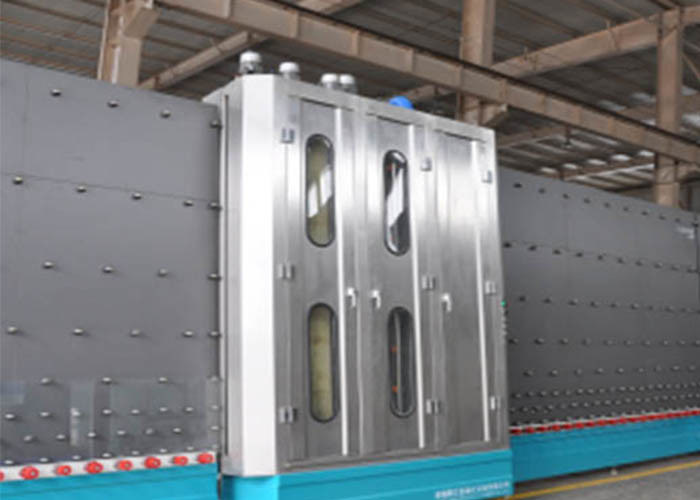

Vertical Glass Washer 2-10 M / Min , Automatic Insulating Glass Production Line

Vertical Glass Washer 2-10 M / Min , Automatic Insulating Glass Production Line
Vertical Glass Washer 2-10 M / Min , Automatic Insulating Glass Production Line

Large Image :  Vertical Glass Washer 2-10 M / Min , Automatic Insulating Glass Production Line

Product Details:
Place of Origin: JINAN, CHINA
Certification: CE
Model Number: LJQX2535
Payment & Shipping Terms:
Minimum Order Quantity: One set
Price: Negotiable
Packaging Details: Container
Delivery Time: 30 days
Supply Ability: 60 sets per year

Vertical Glass Washer 2-10 M / Min , Automatic Insulating Glass Production Line

Production Name: Vertical Glass Washing Machine Application: Washing All Kinds Of Glasses
Brushes: 6 Soft Brushes Used For Low-e Glass Material: Stainless Steel
Glass Thickness: 3 - 15mm Open Top: Available
High Light:

glass cleaning machine


vertical glass washer

3-18Mm Vertical Glass Washing Machine 3 Pair Soft Brushes


LJQX 2535  can wash normal glass and low-e and soft coating glass with six soft brudhes, the brushes ' hair is 0.1mm.Vertical glass washing machine is called glass washing and drying machine. The main part uses 304 stainless steel materials.


Parameter details:

  • Keyword: Glass washer
  • Place of orign:Jinan
  • Input Voltage: 380v
  • Condition: Vertical Glass Washing Mashing
  • Machine Type: Insulating glass production line
  • Place of Origin: Shandong
  • Brand Name: Jinan city
  • Model Number: LJQX - Lijiang glass vertical glass washing machine
  • Voltage: 380V
  • Certification: CE
  • Warranty: 1 Year
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Product Name: Vertical glass washing machine
  • Max glass size: 2500*3500 mm
  • Working Speed: 2-10m/min
  • Min glass size: 300*500mm size 2500*3500mm/2200*3000mm/2000*2500mm size 280*450mm
Glass thickness 3-15mm
Insulating glass thickness 60mm
Glass washing speed 2-10m/min
Glass conveyor speed 48m/min
Washing brushes 3 pairs
Water supply Water consumption:0.5t/h conductivity:≤50μs/cm
Air supply Flow: 0.8m/min
Air pressure ≥0.8MPa
Total power 3P 380V 50HZ 40KW/27KW/24KW
Dimension 23500*3500*3700mm/18350*2600*3250mm/16400*2500*3100mm
Weight 6500kg/6000kg/5200kg




1, Europe design concept, easy and intelligent operation;

2, World famous brands of key components, ensure stable operation and long service life;

3, Designed for high quality glass washing, such as reflective glass, Low-E glass, tempered glass and laminated glass;

4, Large glass processing scale with high speed, various models and customization available;

5, With functions of glass transferring, glass washing, glass drying and glass checking;

6,Three pairs of high quality washing brushes, suitable for Low E glass washing;


Vertical Glass Washer 2-10 M / Min , Automatic Insulating Glass Production Line 0

Vertical Glass Washer 2-10 M / Min , Automatic Insulating Glass Production Line 1


1. Question : Are you a manufacturer?

Answer: LIJIANG AUTOMATION EQUIPMENT CO.,LTD is a professional manufacturer in Jinan, China. Making INSULATED GLASS PROCESSING MACHINER. Including Insulating Glass Production Line, Automatic Sealing Robot, Automatic Low-e Glass Edge Deleting Machine, Automatic Spacer Bending Machine, Automatic Desiccant Filling Machine, Automatic Butyl Extruder Machine and some manual equipment. Such as Two Pump Sealant Extruder Machine, Freezer, Rotating Table, Edge Grinding Machine and so on.


2.Question: What is the guarantee?

Answer: Normally, each machine from LIJIANG GLASS has one- year’s guarantee time. During the time, any part gets wrong, LIJIANG provide the service and spares for free ( except wearing parts). Before delivering goods, LIJIANG always provides one set of spares for each machine to customer without any payment.


3. Question:What is LIJIANG GLASS special advantages?

Answer: LIJIANG GLASS always adopts new technology to update IG machinery. Always cooperating with Europe and America famous IG experts to make the best and high-quality machines. 1. The technicians team and engineers are very experienced with more than 20 years in this field. For IG line, we cooperate with Europe famous company - BYSTRONIC to make a special design for IG pressing part, which can keep the pressing board straight all the time, no need to be adjusted by manual. 2. The most electric parts on each IG machines are used SIEMENS BRAND, some parts also import from Japan and Korea to install. Whats’ more, LIJIANG has its own spares processing center, so that many customers buy wearing spares on IG machines here with high quality and low price.


4.Question: What is the after-sale service?

Answer: LIJIANG GLASS is famous not only the good machines, but also the best after-sale service. Customers know that LIJIANG service center opens to customer in 24 hours a day, no weekend time. Once customer has a little problem, we can help them deal with it as soon as possible by call or video, also there are some professional engineers working in customers country to help them. Even our agents have their own service center in different countries.
