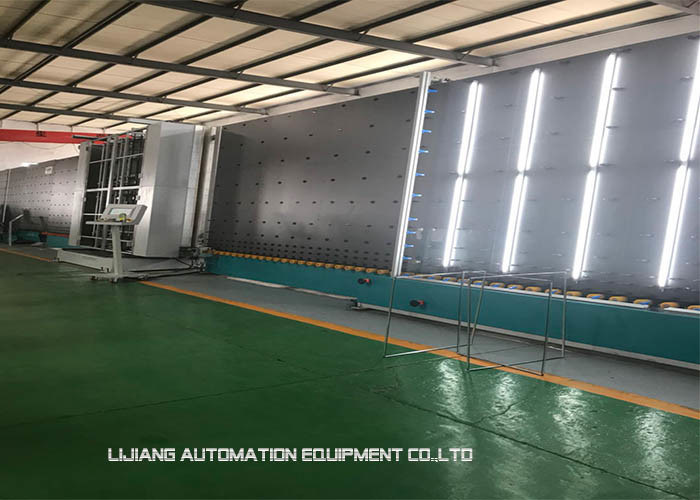

Hydraulic Insulating Glass Line 300*500 Millimeter Min Size With Speed Change Device

Hydraulic Tempered Insulating Glass Production Line With Speed Change Device

Main Parameters:

Main components:


Main Features:

1.Adopting internationally leading technology

2.Adopting Taiwai Xinjie PLC & ENC variable-frequency governor and Weinview true-color advanced touch

screen and Korea Autonics sensing controller

3.Adopting six variable-frequency governors in all, each section conveying reasonably, efficient in production

4.Consisting of two independent programs of inside assembly and outside assembly, either of which can produce two-layer and three-layer insulating glass

5.All the reducers made of precise cast aluminum, turbines made of cast tin bronze

6.All the bearings made of pure steel, rotating flexibly, having no noises

7.All the conveying axles manufactured by grinding machine (ensuring high precision) and equipped with quality bearing, ensuring glass is conveyed stably and fast

8.Conveying wheel made of polyurethane material, resisting wear and giving llittle noises

9.Aluminum frame positioned vertically and horizontally at the same time, adjusted easily, placed fast and accurately

10.Glass positioned on conveying sections in a swing way, placed accurately, causing little wear to baffle

11.Outside assembly section advancing and retreating in a hydraulic way, stably and reliably; beam lifted by linear guideway stably

Plate press features

1.Specially designed in an opening way, able to be pushed open 550mm by cylinder stroke, convenient for repairing and maintenance

2.Using Taiwan YSB vacuum generator and sucking discs which are distributed reasonably to improve glass sucking effect

3.Adopting American Start stepping motor control system to carry out big and small piece work, preferable for curtain wall glass manufacturing

4.Using hydraulic pressure to control plate press to make plate press have constant pressure and insulating glass get better sealing effect

5.The air float of plate press being directly guided into Chinese standard rectangle tube to avoid blocking and make glass run in place; not slotting plate inside to prevent plate deforming

6.The glass positioning cylinder within plate in angle-inserting structure resisting impact and ensuring glass runs to right place and is not staggered

Cleaner features

1.Its tank part made of thickened stainless steel; its components and screws contacting water made of stainless steel or waterproof aluminum, not rusting in long-term use, convenient for maintenance

2.Adopting top drive and double-layer structure, avoiding sealing elements aging and leaking, convenient for maintenance

3.Two rubber rollers inside being automatically adjusted to a distance suitable for thickness of glass to be cleaned using spring, able to clean 3-12mm glass

4.With three-level cleaning; using six brushes of quality 1010 nylon yarn 150mm in diameter and four times of spraying to clean lass quickly (8-12m per minute); able to clean LOW-E glass and coated glass

5.Having a device for identifying LOW-E glass and coated glass to automatically identify their front and back; a pair of coarse-wool brushes yielding automatically to avoid coating damage

6.The air knife and back rest within drying closet made of stainless steel, avoiding secondary pollution after glass being cleaned

7.Reasonable angle design of air knife making glass dried better

8.Unique circulating air design making glass drying system reduce energy consumption and noises

9.Upper section adopting humanized design; when placing large glass, stamp foot switch to stop conveying, and stamp it again to start conveying; this is easy to operate so as to ensure personal safety of operators.
