Multi Function Insulating Glass Production Line Flat Press 450×280 Size

Multi Function Insulating Glass Production Line Flat Press 450×280 Size
Multi Function Insulating Glass Production Line Flat Press 450×280 Size

Large Image :  Multi Function Insulating Glass Production Line Flat Press 450×280 Size

Product Details:
Place of Origin: JINAN,CHINA
Brand Name: LIJIANG
Certification: CE
Model Number: LJBZ2535
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiable
Packaging Details: 40gp
Delivery Time: 30days
Supply Ability: 1set 30days

Multi Function Insulating Glass Production Line Flat Press 450×280 Size

Description
Max Glass Size: 2500*4500mm Min Glass Size: 300*500mm
Glass Thickness: 3-15mm Insulating Glass Thickness: 50mm
Glass Washing Speed: 2-10m/min Glass Conveyor Speed: 48m/min
Washing Brushes: 3 Pairs Guarantee Period: 12 MONTHS
Highlight:

glass processing machines

,

double glazing production

Multi Function Insulating Glass Production Line Flat Press 450×280 Min Size
IG machine line consists of the transfer section, washing section, inspection section and pressing section. It uses advanced technology to make high-quality and variety DGU automatically, such as double glass, triple glass, shaped glass and stepped glass.


ModelMin size of glass(Optional)Max size of glassLow-EStepped glassTriple glassGas filling online
LJBZ1825300*5001800*2500AvailableAvailableAvailableAvailable
LJBZ2025300*5002000*2500AvailableAvailableAvailableAvailable
LJBZ2230300*5002200*3000AvailableAvailableAvailableAvailable
LJBZ2535
(Optional)
300*5002500*3500AvailableAvailableAvailableAvailable



Max.glass size2500*3500mm/2200*3000mm/2000*2500mm
Min.glass size280*450mm
Glass thickness3-15mm
Insulating glass thickness60mm
Glass washing speed2-10m/min
Glass conveyor speed48m/min
Washing brushes3 pairs
Water supplyWater consumption:0.5t/h conductivity:≤50μs/cm
Air supplyFlow: 0.8m/min
Air pressure≥0.8MPa
Total power3P 380V 50HZ 40KW/27KW/24KW
Dimension23500*3500*3700mm/18350*2600*3250mm/16400*2500*3100mm
Weight6500kg/6000kg/5200kg

Specifications:

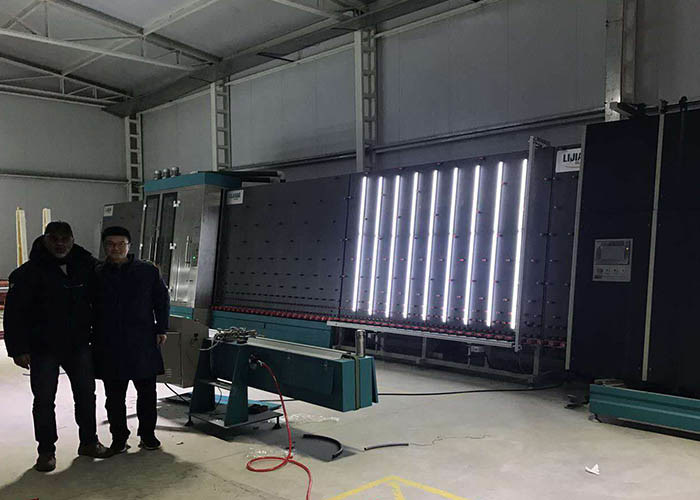

1 vertical automatic insulating glass flat press production line is composed of vertical glass conveyor, vertical glass washing & drying machine, vertical glass inspection conveyor,Aluminum frame positioning section, vertical flat press lamination machine and Tilting Table.
2 This production line adopts the world's leading processing technology, PLC and touch screen frequency conversion control.
3 Cleaning and drying equipment adopts thick stainless steel, with 4 pairs soft brush to avoid damage to coating layer. Able to identify aspects of which side is coated glass, to ensure that the correct pieces together.
4 The design of the front and back boxes of automatic flat press machine (front vacuum float,back air-float transmission) make the glass pieces once completed.automatic the and selects the current international leading manner of flat crush laminated plates
5 The machines can produce triple insulating glass and the different size cutain glass , low-e shape insulating glass .
6 This line is high in efficiency, low in energy consumption, compact in structure and easy to operate.

Multi Function Insulating Glass Production Line Flat Press 450×280 Size 0Feature:

  • Making double glazed glass line, double glazed line, double glazed glass machine
  • Shape glass Low-e insulating glass machine
  • Mechanical trouble cheek
  • Whole line control function with monitors
  • Automatic control for Low-e glass (6-brushes treatment for low-e glass)
  • Automatic adjust function for pressing with hydraulic compression
  • Titling table with hydraulic pressure
  • Monitor using system temperature/speed/production volume

Details description:
Low-e glass sensor
This sensor is installed before washing machine.It can automatically recognize Low-e glass,preventing the glass from dropping Low-e surface.
Conveyor roller
The transfer wheel in the washing and drying section : The front and back transfer wheel are all moved, all actively transferred. It can guarantee the big size glass and thick glass pass through smoothly.
Washing&Drying machine
The whole washing &drying machine adopts 304 stainless steel,including the plate and interior spare parts.And some slider block are copper.
Washing part
It has 3 pair of brushes, which are all soft brushes, washing flat glass,tempering glass and low-e glass.It has a diameter of less than 0.1mmde bristles,which will never damage glass,especially low-e glass .
We use the genuine materials.The thickness plate can up to 4mm and the interior plate can be 8mm.The equipment performance is better and service life is much longer.
Noise reduction device
The noise can be controlled below 90 decibels by using nylon gear and sponges.
Water heating system
It also uses 304 stain steel and adopts air heating system.
Drying part
Frequency wind knife
1)Here we can see there are two set of switches and frequency.It can be divided into up&down two parts and adopts frequency knife.The two parts will work at the same time when drying a large size glass(height>1.5m),while there is only down-parts drying for the small size glass(height<1.5m),saving much energy.
How much you will save the electricity ?
1 hour will save 1.5$, 1 day save 36$, one month save 1080$, one year 12960$.
A universal joint device
There is a universal joint device.When the glass thickness was changed, the wind knife can move forward and backward to adjust the distance, so that the relative distance between the wind knife and the glass is constant, so as to avoid the damage to the glass due to the change of the glass thickness.
Transferring actively
There are wheels on both sides of the bottom of the glass to actively transfer the glass so the transmission speed is faster, and the large size or small size glass can be passed quickly.
Press part - Pressing way
It presses IGUs by hydraulic station with pressure, it guarantees the precise pressure.
Energy saving of pressing function
It adopts 3 micro switches,which divide the pressing part into 4 sections.
Each micro switch receives the signal and adds a part of the working area. When the corresponding micro switch is not touched, the region does not work.
The work area can be divided in this way.
Adjustable points
It has adjustable points on the pressing plate.
As we know, the press plate will be out of shape after long time using.So its pressing performance will be dramatically reduced.With these points, we can adjust the flatness of the pressing section, so that it can ensure stable performance.
Stepped glass(Optional)
It also can make stepped glass with a servo motor.
Energy saving of pressing function
It adopts 3 micro switches,which divide the pressing part into 4 sections.
Each micro switch receives the signal will add a part of the working area. When the corresponding micro switch is not touched, the region does not work.


  • When glass L 1.5m Part 1 work.
  • When glass L =1.5m-2.3m Part 1 & Part 2 work.
  • When glass 2.3m < L < 3.2m Part 1, Part 2 & Part 3 work.
  • When glass 3.2m = L 4m All parts work together

Gas filling parts :

  • Automatically filling argon gas within the plate with high, synchronous compressing glasses, to maximize the gas retention rate
  • When filling shaped IG, inflatable front side of the rectangular size required 450mm (length), 280mm (high)
  • No need to drill holes in spacer frame
  • Standard filling gas is Argon
  • Fast reacting sensor for permanent control of gas filling process
  • Automatically set filling data and display data on the screen

Automatically filling argon gas with 22s for one piece of double glazing glass. Can set and display the gas value on the screen according to our request. Such as 85%,88%,90%,95%....
