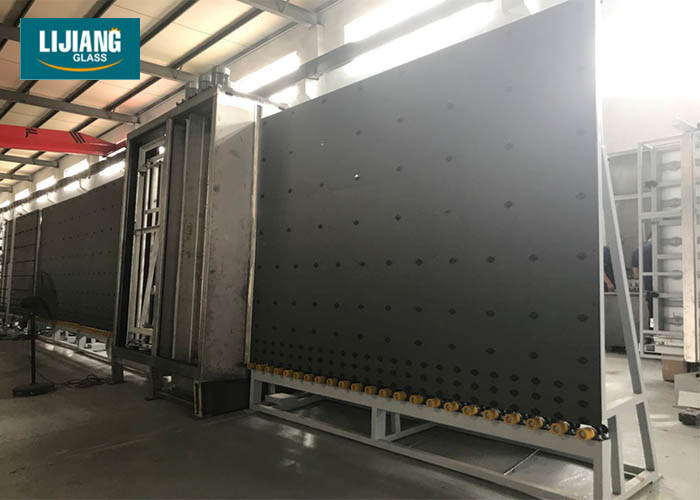

Gas Filling Insulating Glass Production Line Corrosion Resistant 300*500 Millimeter

Gas Filling Insulating Glass Production Line Corrosion Resistant 300*500 Millimeter
Gas Filling Insulating Glass Production Line Corrosion Resistant 300*500 Millimeter

Large Image :  Gas Filling Insulating Glass Production Line Corrosion Resistant 300*500 Millimeter

Product Details:
Place of Origin: JINAN,CHINA
Brand Name: LIJIANG
Certification: CE
Model Number: LJBZ2535
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiable
Packaging Details: 40gp
Delivery Time: 30days
Supply Ability: 1set 30days

Gas Filling Insulating Glass Production Line Corrosion Resistant 300*500 Millimeter

Description
Max Glass Size: 2500*4500mm Min Glass Size: 300*500mm
Glass Thickness: 3-15mm Insulating Glass Thickness: 50mm
Glass Washing Speed: 2-10m/min Glass Conveyor Speed: 48m/min
Washing Brushes: 3 Pairs Oversea Service: Available
Guarantee Period: 12 MONTHS Stepped Glass: Available
Triple Glass: Available Shaped Glass: Availabe
Low-e Glass: Available
Highlight:

glass processing machines

,

insulating glass line

Gas Filling Insulating Glass Production Line Corrosion Resistant 300*500 Mm



Application:

LJBZ2535G is made of four sections mainly, transfer section, washing section, inspection section and pressing section, totally it has 23.5m. It uses advanced technology ( from Italy and Bystronic) to make high-quality and variety IG automatically, such as double glass, triple glass, shaped glass and stepped glass.Automatically filling argon gas online with more than 95% rate by high filling speed.



Model Min size of glass(Optional) Max size of glass Low-E Stepped glass Triple glass Gas filling online
LJBZ1825 300*500 1800*2500 Available Available Available Available
LJBZ2025 300*500 2000*2500 Available Available Available Available
LJBZ2230 300*500 2200*3000 Available Available Available Available

LJBZ2535

(Optional)

300*500 2500*3500 Available Available Available Available



Parameters:



Max.glass size 2500*3500mm/2200*3000mm/2000*2500mm
Min.glass size 280*450mm
Glass thickness 3-15mm
Insulating glass thickness 60mm
Glass washing speed 2-10m/min
Glass conveyor speed 48m/min
Washing brushes 3 pairs
Water supply Water consumption:0.5t/h conductivity:≤50μs/cm
Air supply Flow: 0.8m/min
Air pressure ≥0.8MPa
Total power 3P 380V 50HZ 40KW/27KW/24KW
Dimension 23500*3500*3700mm/18350*2600*3250mm/16400*2500*3100mm
Weight 6500kg/6000kg/5200kg



Details display:



1.Low-e glass sensor

This sensor is installed before washing machine.It can automatically recognize Low-e glass,preventing the glass from dropping Low-e surface.



2.Conveyor roller

The transfer wheel in the washing and drying section : The front and back transfer wheel are all moved, all actively transferred. It can guarantee the big size glass and thick glass pass through smoothly.



3.Washing&Drying machine

The whole washing &drying machine adopts 304 stainless steel,including the plate and interior spare parts. And some slider block are copper.



Washing part



The washer has 3 pair of brushes, which are all soft brushes, washing flat glass, tempering glass and Low-e glass. The soft brush has a diameter of less than 0.1mmde bristles, which will never damage glass, especially for low-e glass .



We use the genuine materials.The thickness plate can up to 4mm and the interior plate can be 8mm.The equipment performance is better and the service life is much longer.



Noise reduction device



The noise can be controlled below 90 decibels by using nylon gear and sponges.



Water heating system



It also uses 304 SST and adopts air heating system.



Drying part



Frequency wind knife



1)Here we can see there are two set of switches and frequency. It can be divided into up&down two parts and adopts frequency knife.The two parts will work at the same time when drying a large size of glass (height>1.5m). While there is only down-parts drying for the small size glass (height<1.5m), saving much energy.



How much you will save the electricity ?

1 hour will save 1.5$, 1 day save 36$, one month save 1080$, one year 12960$.



A universal joint device



There is a universal joint device.When the glass thickness was changed, the wind knife can move forward and backward to adjust the distance, so that the relative distance between the wind knife and the glass is constant, so as to avoid the damage to the glass due to the change of the glass thickness.



Gas Filling Insulating Glass Production Line Corrosion Resistant 300*500 Millimeter 0



Transferring actively



There are wheels on both sides of the bottom of the glass to actively transfer the glass so the transmission speed is faster, and the large size or small size glass can be passed quickly.



4. Press part



Pressing way



It presses IGU by hydraulic station with pressure, it guarantees the precise pressure.



Energy saving of pressing function



It adopts 3 micro switches,which divide the pressing part into 4 sections.



Each micro switch receives the signal and adds a part of the working area. When the corresponding micro switch is not touched, the region does not work.

  • When glass L 1.5m Part 1 work.
  • When glass L =1.5m-2.3m Part 1 & Part 2 work.
  • When glass 2.3m < L < 3.2m Part 1, Part 2 & Part 3 work.
  • When glass 3.2m = L 4m All parts work together.

72 or 88 Adjustable points for the pressing board



In the first step,  we adopt CNC planer to process the pressing board, eliminate stress and ensure that the

board is not deformed in 10 years. However, by cooperating with Bystronic company, we have added 72 or 88 adjustable points in the plate section, which can be adjusted automatically to keep the board straight, no need to adjust manually. This is unique technology in China.



Gas Filling Insulating Glass Production Line Corrosion Resistant 300*500 Millimeter 1

As we know, the press plate will be out of shape after long time using.So its pressing performance will be dramatically reduced.With these points, it can automatically adjust the flatness of the pressing section, so that it can ensure stable performance.



Stepped glass (Optional)



It also can make stepped glass with a servo motor.



High - speed filling argon gas online



Automatically filling argon gas with 22s for one piece of double glazing glass. Can set and display the gas value on the screen according to our request. Such as 85%,88%,90%,95%....



We can observe the argon content and filling speed intuitively, providing guarantee for the production of high quality insulating glass



In China, the minimum requirement for argon content is 85%. The 90% content is the most basic value. Based on more customers pursuing higher argon content. We invited famous American argon detector experts to test for us on site. As a result, our argon content reached 97.3%, which fully demonstrated our company's pursuit of high technology.



Gas Filling Insulating Glass Production Line Corrosion Resistant 300*500 Millimeter 2
