Energy Saving Stepped Insulating Glass Production Line 2500*4500 Mm Max Size

Energy Saving Stepped Insulating Glass Production Line 2500*4500 Mm Max Size
Energy Saving Stepped Insulating Glass Production Line 2500*4500 Mm Max Size

Large Image :  Energy Saving Stepped Insulating Glass Production Line 2500*4500 Mm Max Size

Product Details:
Place of Origin: JINAN
Brand Name: LIJIANG
Certification: CE
Model Number: LJBZ2535G
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiable
Packaging Details: 40gp
Delivery Time: 30days
Supply Ability: 1set 30days

Energy Saving Stepped Insulating Glass Production Line 2500*4500 Mm Max Size

Description
Max Glass Size: 2500*4500mm Min Glass Size: 300*500mm
Glass Thickness: 3-15mm Insulating Glass Thickness: 50mm
Glass Washing Speed: 2-10m/min Glass Conveyor Speed: 48m/min
Washing Brushes: 3 Pairs Oversea Service: Available
Guarantee Period: 12 MONTHS Stepped Glass: Available
Triple Glass: Available Shaped Glass: Availabe
Low-e Glass: Available
Highlight:

insulating glass line

,

double glazing production

Energy Saving Stepped Insulating Glass Production Line 2500*4500 Mm Max Size



APPLICATION:

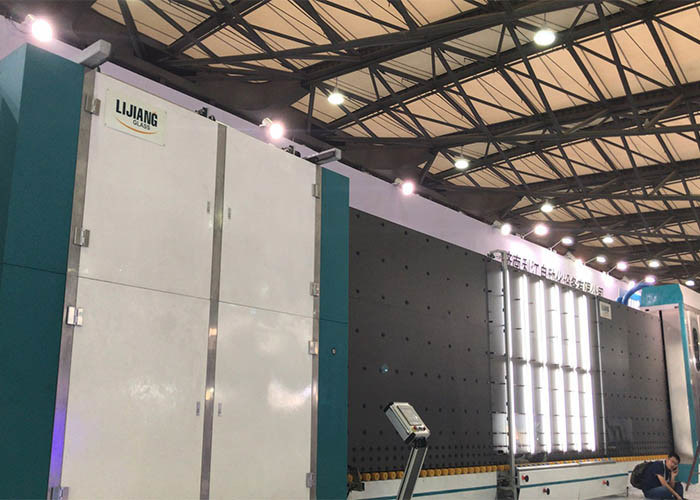

Vertical Insulated glass production line consists of four sections, transfer section, washing section, inspection section and pressing section (with or not gas filling). It uses advanced technology to make high-quality and variety DGU automatically, such as double glass, triple glass, shaped glass and stepped glass.





Model Min size of glass(Optional) Max size of glass Low-E Stepped glass Triple glass Gas filling online
LJBZ1825 300*500 1800*2500 Available Available Available Available
LJBZ2025 300*500 2000*2500 Available Available Available Available
LJBZ2230 300*500 2200*3000 Available Available Available Available

LJBZ2535

(Optional)

300*500 2500*3500 Available Available Available Available



Max.glass size 2500*3500mm/2200*3000mm/2000*2500mm
Min.glass size 280*450mm
Glass thickness 3-15mm
Insulating glass thickness 60mm
Glass washing speed 2-10m/min
Glass conveyor speed 48m/min
Washing brushes 3 pairs
Water supply Water consumption:0.5t/h conductivity:≤50μs/cm
Air supply Flow: 0.8m/min
Air pressure ≥0.8MPa
Total power 3P 380V 50HZ 40KW/27KW/24KW





Glass washing part:

  • Wash online and offline low-e glass, automatically recognizes Low-e film
  • Washing part adopts the design of upper and lower washing sections
  • Adopt variable frequency fan, energy efficient, good cleaning effect
  • Using intelligent intermittent energy-saving working methods
  • Hierarchical type washing system
  • Automatic detect low-e & high performance glass
  • The air knife can automatically adjust the width of the air knife according to the thickness
  • Water tank automatic temperature control, water replenishing system
  • European silencer system&stainless steel drying system

Gas filling parts:

  • Standard filling gas is Argon
  • Fast reacting sensor for permanent control of gas filling process
  • Automatically filling argon gas within the plate with high, synchronous compressing glasses, to maximize the gas retention rate
  • When filling shaped IG, inflatable front side of the rectangular size required 450mm (length), 280mm (high)
  • No need to drill holes in spacer frame
  • Automatically set filling data and display data on the screen



Energy Saving Stepped Insulating Glass Production Line 2500*4500 Mm Max Size 0





Energy Saving Stepped Insulating Glass Production Line 2500*4500 Mm Max Size 1



FAQ :

1. Question : Are you a manufacturer?

Answer: LIJIANG AUTOMATION EQUIPMENT CO.,LTD is a professional manufacturer in Jinan city, China. Making INSULATED GLASS PROCESSING MACHINER. Including Insulating Glass Production Line, Automatic Sealing Robot, Automatic Low-e Glass Edge Deleting Machine, Automatic Spacer Bending Machine, Automatic Desiccant Filling Machine, Automatic Butyl Extruder Machine and some manual equipment. Such as Two Pump Sealant Extruder Machine, Freezer, Rotating Table, Edge Grinding Machine and so on.



2. Question:What is LIJIANG GLASS special advantages?

Answer: LIJIANG GLASS always adopts new technology to update IG machinery. Always cooperating with Europe and America famous IG experts to make the best and high-quality machines. 1. The technicians team and engineers are very experienced with more than 20 years in this field. For IG line, we cooperate with Europe famous company - BYSTRONIC to make a special design for IG pressing part, which can keep the pressing board straight all the time, no need to be adjusted by manual. 2. The most electric parts on each IG machines are used SIEMENS BRAND, some parts also import from Japan and Korea to install. Whats’ more, LIJIANG has its own spares processing center, so that many customers buy wearing spares on IG machines here with high quality and low price.



3.Question: What is the after-sale service?

Answer: LIJIANG GLASS is famous not only the good machines, but also the best after-sale service. Customers know that LIJIANG service center opens to customer in 24 hours a day, no weekend time. Once customer has a little problem, we can help them deal with it as soon as possible by call or video, also there are some professional engineers working in customers country to help them. Even our agents have their own service center in different countries.



4.Question: What is the guarantee?

Answer: Normally, each machine from LIJIANG GLASS has one- year’s guarantee time. During the time, any part gets wrong, LIJIANG provide the service and spares for free ( except wearing parts). Before delivering goods, LIJIANG always provides one set of spares for each machine to customer without any payment.
