Place of Origin:
JINAN,CHINA
Brand Name:
LIJIANG GLASS
Certification:
CE
Model Number:
LJST02A
Video

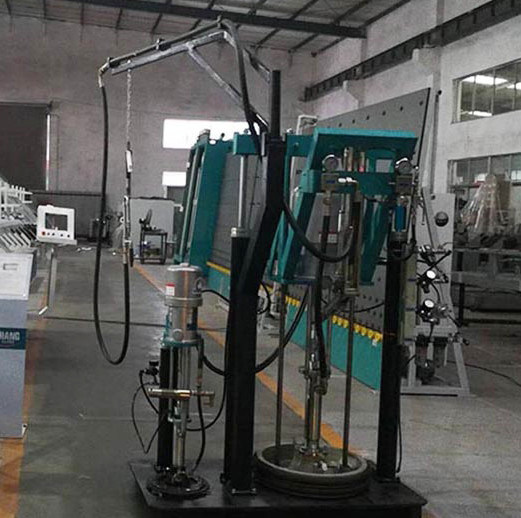

Semi-automatic Two Component Sealant Extruder Machine With Pump A And Pump B
Application:
LJST02A is a kind of glue sealing device, it uses Korea servo motor to control power. Adopting rate detector to control the rate of two kinds of glues, and there is a high pressure protect device.
Parameters:
| Working air pressure | 0.3-0.6MPa |
| Sealant spreading pressure | 15-20MPa |
| Sealant volume | 4L/min |
| Diameter of A/B sealant | 570mm/280mm |
| Sealant spreading air pressure ratio | 50:1 |
| Mixed rate | 6:1-14:1 |
| Air supply | Flow 0.8m3/min |
| Air pressure | ≥0.8MPa |
| Overall dimension | 1100*950*1630mm |
Features of sealant spreading machine
1.The curing agent systerm is completely closed and airproof.
2.The valve ports of the basic material pump the curative agent pump and 3.proportioning pump all adopt the special
4.alloy with zero leakage.
5.The rubber mixing system adopt the strip shaker with international 6.static state to-and-fro technology,attached
5.the unilateralism Pin valve with special structure to make the mix uninformative.
6.The rubber mouth with special flexibility material made the insulating glass production more convenient and attractive
7. Imported Motor System to improve equipment efficiency.
8. High pressure protect device
Related product of LIJIANG GLASS Insulating glass machinery manufacture
Two pump sealant machine
PERFORMANCE
•Use cylinder to provide power
•The famous sealant gun in China, stainless steel mixer
•High pressure protect device
•Anti-back flow control structure
•Mixed rate detector can control the rate of two kinds of glue
PARAMETER
| Working air pressure | > 0.6MPa |
| Sealant spreading pressure | 15-20MPa |
| Sealant volume | 4L/min |
| Diameter of A/B sealant | 570mm/280mm |
| Mixed rate | 6:1-14:1 |
| Air supply | Flow 0.8m3/min |
| Air pressure | > 0.8MPa |
| Overall dimension | 1700*1100*1900mm |
| Weight | 600kg |
