Home > Products > Sealant Extruder >
High efficency Servo Control Full Automatic Sealant Extruder Machine for Insulating Glass Processing

High efficency Servo Control Full Automatic Sealant Extruder Machine for Insulating Glass Processing

glass sealing machine

double glazing equipment

Place of Origin:

JINAN, CHINA

Brand Name:

LIJIANG GLASS

Certification:

CE

Model Number:

LJTJ2540

Contact Us
Request A Quote
High efficency Servo Control Full Automatic Sealant Extruder Machine for Insulating Glass Processing High efficency Servo Control Full Automatic Sealant Extruder Machine for Insulating Glass Processing
Product Details
Production Name:
Insulating Glass Sealing Robot
Min Glass Size:
400mm * 300mm
Max Glass Size:
2500mm*4500mm
Triple Glass:
Available
Double Glass:
Available
Stepped Glass:
Available
Glass Thickness:
12-50mm
Working Speed:
5-40m/min
Highlight:

glass sealing machine

,

double glazing equipment

Payment & Shipping Terms
Minimum Order Quantity
One set
Price
Negotiable
Packaging Details
Container
Delivery Time
60 days
Supply Ability
50 sets per set
RELATED PRODUCTS
Good price thickness 12-56 mm Glass Sealing Machine For Silicone Insulating Glass Sealing Robot online Video

thickness 12-56 mm Glass Sealing Machine For Silicone Insulating Glass Sealing Robot

Get Best Price
Good price 2000*3000mm Automatic Insulated Glass Sealing Robot Glass Two Component online Video

2000*3000mm Automatic Insulated Glass Sealing Robot Glass Two Component

Get Best Price
Good price Hollow Glass Silicone Rubber Extruder Machine Insulating Glass Silicone Sealing Robot online Video

Hollow Glass Silicone Rubber Extruder Machine Insulating Glass Silicone Sealing Robot

Get Best Price
Good price Hot Melt Extruder Machine For Insulating Glass Seal Making online

Hot Melt Extruder Machine For Insulating Glass Seal Making

Get Best Price
CONTACT US
Contact Now
Product Description

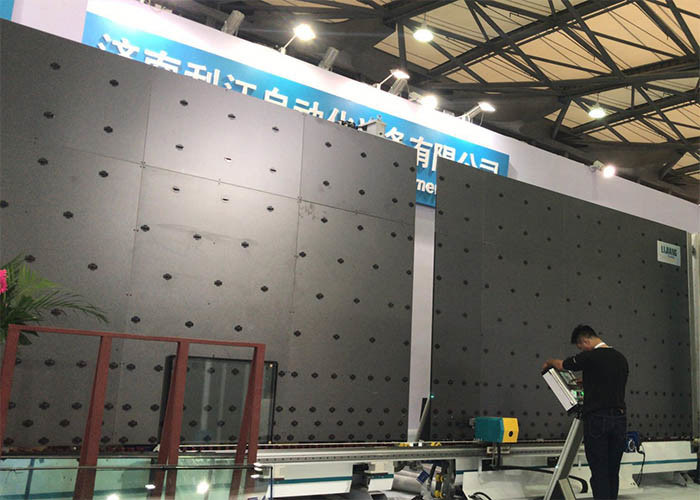

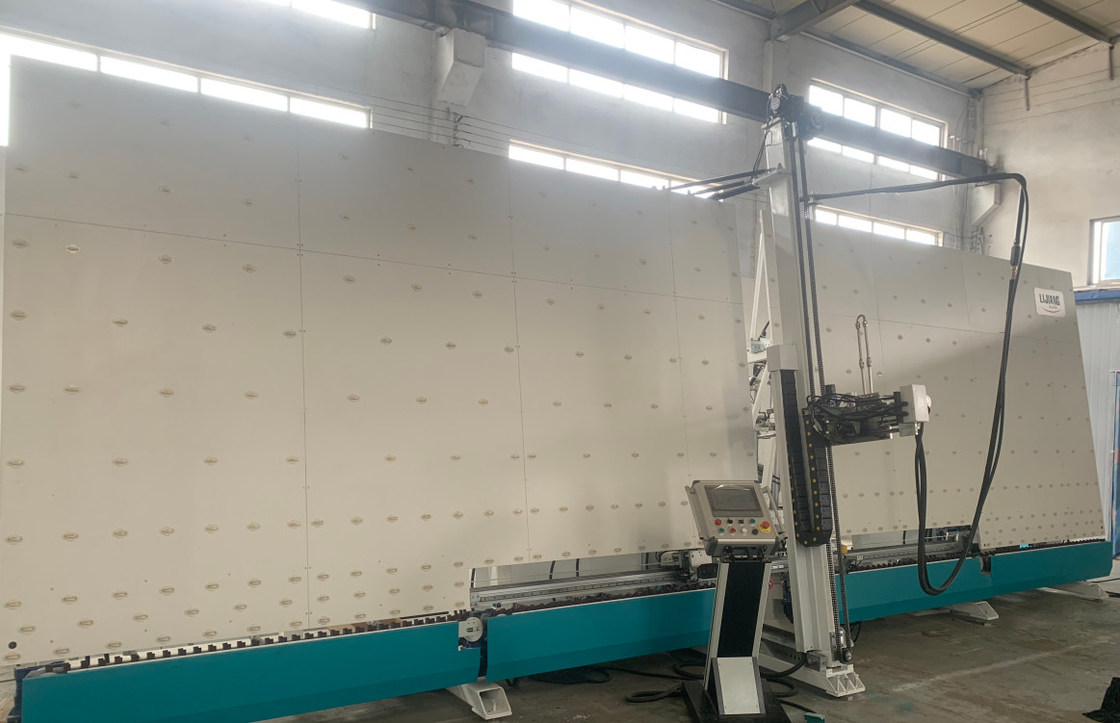

High efficency Servo Control Full Automatic Sealant Extruder Machine



Automatic sealing machine with optimised sealant application, especially around corners. The sealing robot is equipped with 8 servo motors to keep stable and fast working speed.


Max.glass size 2500*4000mm
Min.glass size 300*300mm
Glass thickness 12-56mm
Working speed 5-40m/min
Air pressure 0.6-0.8MPa
Squeeze pressure <350kg/m³
Plane angle 6°- 9°
Max glass weight 400kg
Voltage power 380V 12kw
Overall dimension 8700mm*2000mm*3500mm

Features

  •  Economical and practical adapt to glass deep processing enterprises.
  •  Friendly, succinctly, easily designed of interface makes convenient for operation.
  •  Finished coating IC units can be stored on the third conveyor and increases efficiency.
  •  All edges and corners are fully coating and no air line, smooth surface without repair of the corners.
  •  Servo control system uses the world-famous brands.
  •  Smoothly convey and accurately positioning for the glass by belt conveyor.
  •  Unique V-belt transmission to reduce the viscose of the belt and keep cleaning of the glass edges.
  •  All parts with high standard ensure the stability of the equipment.
  •  Manual corner corrections are largely avoided
  •  Exceptionally low-wear mixing with high precision application of material,coupled with a very large flow range
  •  Quicker and easier material changeover
  •  Patented Full-Support-Belt System
  •  Permanent support of all sheets
  •  Operator-friendly and easy maintenance
  •  Optimum corner sealing quality
  •  Maximum load 450 kg/lm upon request

High efficency Servo Control Full Automatic Sealant Extruder Machine for Insulating Glass Processing 0

High efficency Servo Control Full Automatic Sealant Extruder Machine for Insulating Glass Processing 1

High efficency Servo Control Full Automatic Sealant Extruder Machine for Insulating Glass Processing 2

High efficency Servo Control Full Automatic Sealant Extruder Machine for Insulating Glass Processing 3
